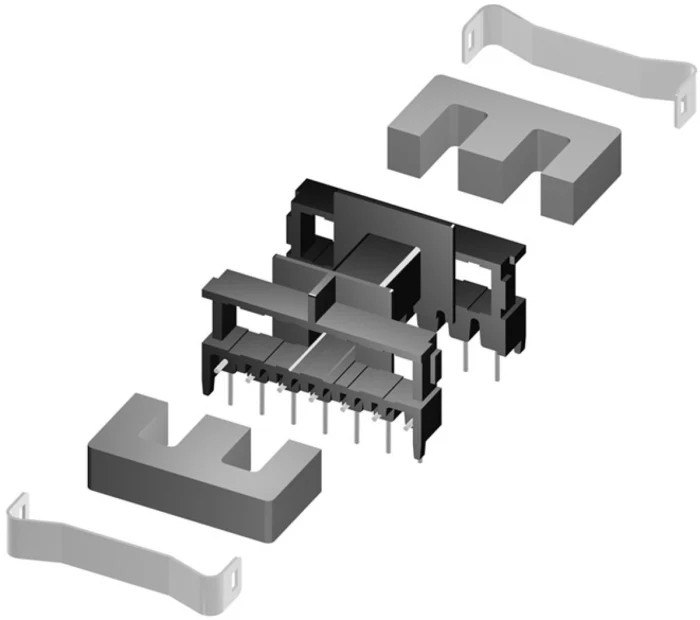

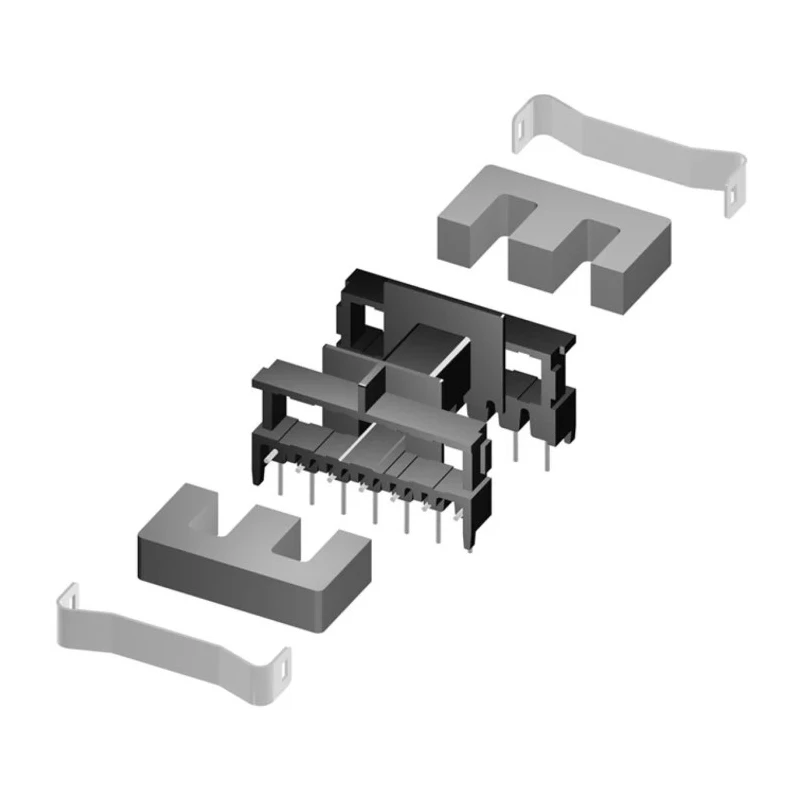

TDK N27 Ferrite Transformer Core E 13/7/4, 800 nH, Power & Miniature Transformer, IEC 61246, 155°C, B66305G0000X127
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TDK |
| Material | N27 |
| Length | 12.6mm |
| Model | B66305G0000X127 |
| Depth | 6.5mm |
| Width | 3.7mm |
| Series | B66305 |
| Maximum Operating Temperature | 155°C |
| For Use With | Power TransFormers, Miniature TransFormers |
| Standards/Approvals | IEC 61246 |
| Core Size | E 13/7/4 |
| AL Rating | 800nH |
| Core Type | Type E |
| TDK, Horizontal Coil Former for use with E 13/7/4 CoreBrand | TDK |
| EPCOS, Horizontal Coil Former for use with E 20/10/6 CoreBrand | EPCOS |
| TDK, Vertical Coil Former for use with E 20/10/6 CoreBrand | TDK |
Key Features
- High permeability N27 ferrite core for broadband transformer efficiency.
- Rated AL value of 800 nH supports precise inductance requirements.
- Compact E 13/7/4 form factor enhances integration in dense electronic designs.
- Reliable operation up to 155°C ensures stability in demanding conditions.
- Complies with IEC 61246 industry standards for performance and quality.
- Ideal for power transformers and miniature transformer applications.
- Low power loss and high saturation flux density improve energy efficiency.
Product Description
The TDK B66305G0000X127 is a high-quality N27 ferrite transformer core with an E 13/7/4 configuration and an AL rating of 800 nH, making it ideal for demanding power and miniature transformer applications in industrial electronics.
This E core type achieves high magnetic permeability, offering efficient suppression of common mode noise as well as precise inductance for broadband transformers. The N27 material used in this core delivers a high saturation flux density, minimal power loss, and robust performance under varied electrical loads.
Engineered with a compact form factor of 12.6 mm length, 3.7 mm width, and 6.5 mm depth, the core enables optimized assembly in high-density electronic circuits, while supporting reliable operation up to 155°C. Its construction adheres to IEC 61246 standards, ensuring consistency, safety, and compatibility with global requirements.
The AL rating of 800 nH provides accurate inductance when paired with the appropriate coil former, supporting transformer designs that demand minimal losses and steady magnetic characteristics in both power and miniature transformer circuits.
Typical use cases include the assembly of power transformers, miniature transformers, common mode chokes, and other magnetic components where broadband applications and consistent performance are critical. Its ferrite composition makes it suitable for both industrial and commercial electronics manufacturing, including power supplies, signal conditioning units, and energy conversion modules.
This product does not include the coil former, which can be separately selected for E 13/7/4 cores as per your transformer design requirements. Reliability and durability are further assured by the tight specification tolerances and material quality synonymous with TDK.
Browse more TDK transformer cores and magnetic materials in the Transformer Cores category at EnvMart, and explore compatible accessories for streamlined assembly and varied engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AL rating of this transformer core is 800 nH, which supports precise inductance requirements for transformer designs.
The core has a length of 12.6 mm, a width of 3.7 mm, and a depth of 6.5 mm, making it compact for integration into dense electronic designs.
It can operate reliably at temperatures up to 155°C, ensuring stability in demanding conditions.
This model complies with IEC 61246 standards, ensuring performance and quality in its applications.
The transformer core is made from N27 ferrite material, which provides high magnetic permeability and low power loss.
It is ideal for use in power transformers, miniature transformers, and common mode chokes, particularly in broadband applications.
No, the transformer core does not include a coil former, which must be selected separately based on the transformer design requirements.
The core type is classified as Type E, specifically in the E 13/7/4 configuration.
The high permeability of the N27 ferrite core enhances broadband transformer efficiency and enables precise inductance for various applications.
The high saturation flux density of this core minimizes power loss and supports robust performance under varied electrical loads.
The TDK N27 ferrite transformer core is manufactured in the Czech Republic.
The E 13/7/4 core has specific dimensions of 12.6 mm in length, 3.7 mm in width, and 6.5 mm in depth, designed for compact assembly.
