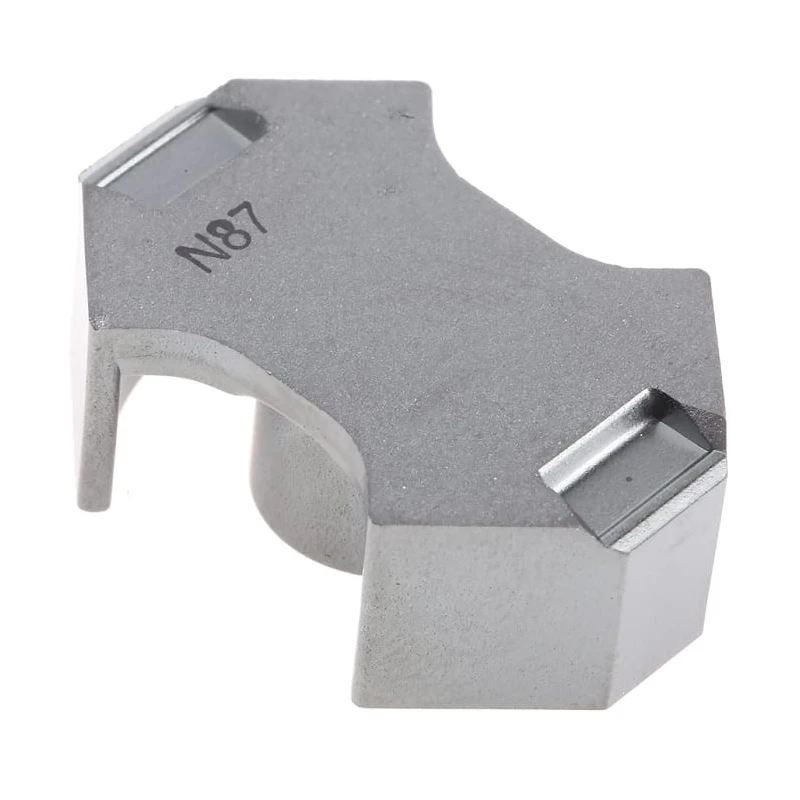

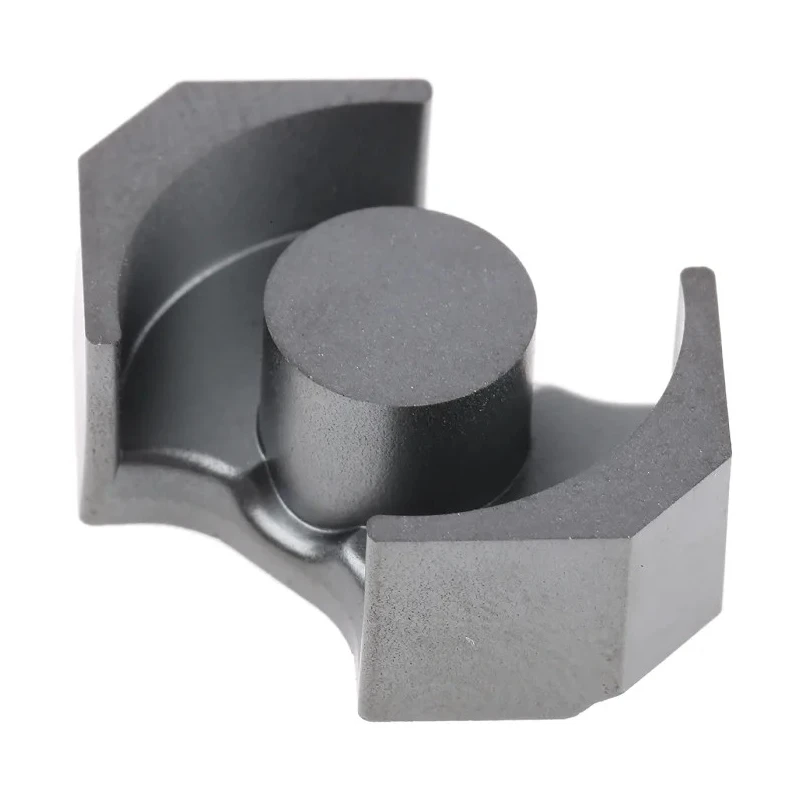

TDK N87 RM Transformer Ferrite Core, 3300 nH, Core Size RM, Material N87, Max Operating Temp 155°C, For SMPS, B65811J0000R087

TDK B65811J0000R087 RM Transformer Ferrite Core provides a compact, high-efficiency solution for switch mode power supply (SMPS) transformer design. This core is engineered to deliver precise inductance and low losses, helping designers achieve optimal electrical performance in industrial and electronic power applications.

With an AL rating of 3300 nH, this transformer ferrite core offers reliable inductive properties required for SMPS transformers and other demanding circuits. The N87 material is specifically selected by TDK for its superior magnetic properties, low core losses, and stable operation across a wide temperature range.

The RM shape core contributes to space-saving designs and simplifies transformer winding, supporting RM 6, 8 and 10 configurations without a centre hole. This core is supplied as a set for easy integration and assembly. Its maximum operating temperature of 155°C makes it suitable for use in environments requiring resilience against thermal stress.

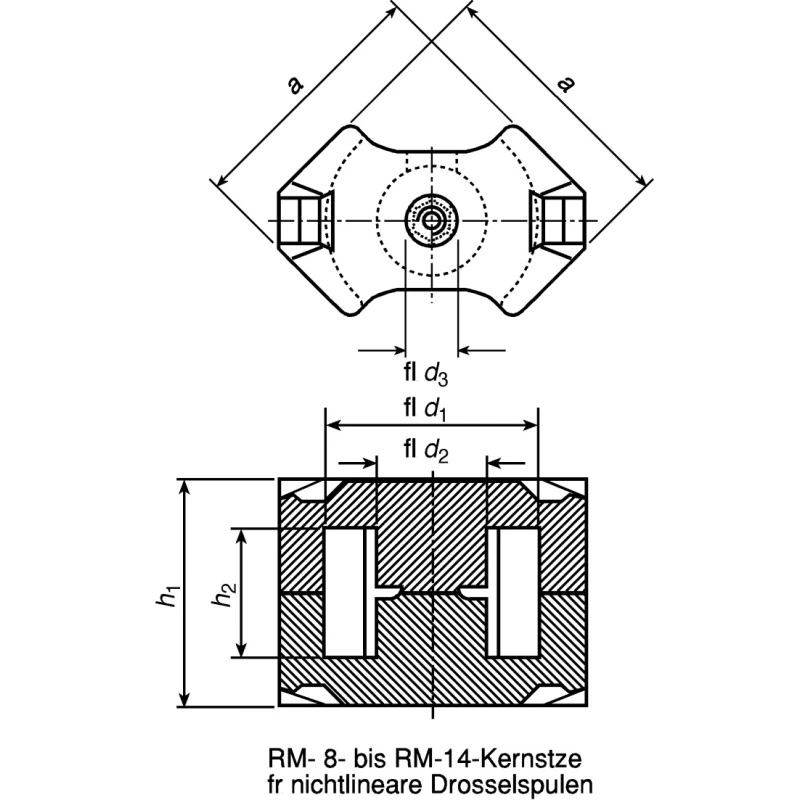

Conformance to IEC 62317-4 standards ensures compatibility and performance for industrial, laboratory and electronic applications. The dimensions of 23.2 mm (length), 19.7 mm (width), and 16.5 mm (depth) allow for versatile deployment in PCB transformer designs, SMPS circuits, and custom transformer assemblies.

Ferrite core for SMPS transformer construction in industrial electronics. Engineered with N87 material for low loss and dependable performance. Supports high operating temperature, ideal for power supply and transformer parts.

RM shape simplifies winding and reduces magnetic flux leakage. Delivered as sets for RM 6, 8 and 10 transformer variants. Used across manufacturing, power electronics, instrumentation and automation. Explore more transformer cores and TDK power technology in the Transformer Cores category on EnvMart.
