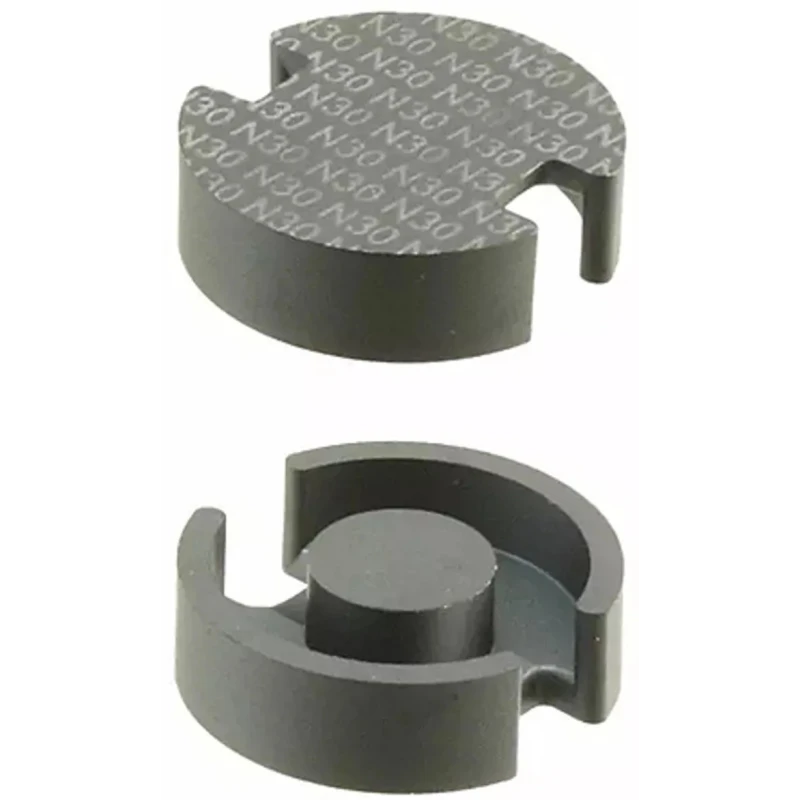

TDK N30 P 18/11 Transformer Ferrite Core, 5900 nH, Ferrite, 155°C Max Temp, P18/11, B65651W0000R030

The TDK B65651W0000R030 is an advanced transformer ferrite core designed for broadband transformer applications in high-frequency electronic circuits. This product features an optimized P 18/11 core shape, providing low magnetic leakage and enabling precise inductance control for demanding electrical environments.

With an AL rating of 5900 nH and constructed from high-quality N30 ferrite material, the core is engineered for outstanding inductance stability at frequencies above 100 MHz. The wound coil is well-protected within the ferrite core, minimizing interference and ensuring reliable electrical performance.

Compact in size but robust in performance, the core measures 18.4 mm in width, 10.6 mm in length, and 10.6 mm in depth. It operates safely at temperatures up to 155°C, making it suitable for industrial, laboratory, and commercial electronic equipment requiring durable transformer solutions.

Compliant with IEC 60133 standards, this ferrite core supports a wide range of applications, including highly resonant circuit inductors, broadband transformer designs, and varied power applications. It is ideal for engineers and designers developing electronic components where high inductance and thermal stability are critical.

Whether used in filters, power circuits, or specialized transformer assemblies, the TDK B65651W0000R030 combines precision engineering and proven material properties to deliver reliable results in electronics manufacturing and maintenance environments.

Explore more transformer core solutions from TDK and discover tailored options for broadband transformers and other high-frequency electrical applications within the Transformer Cores category at EnvMart.
