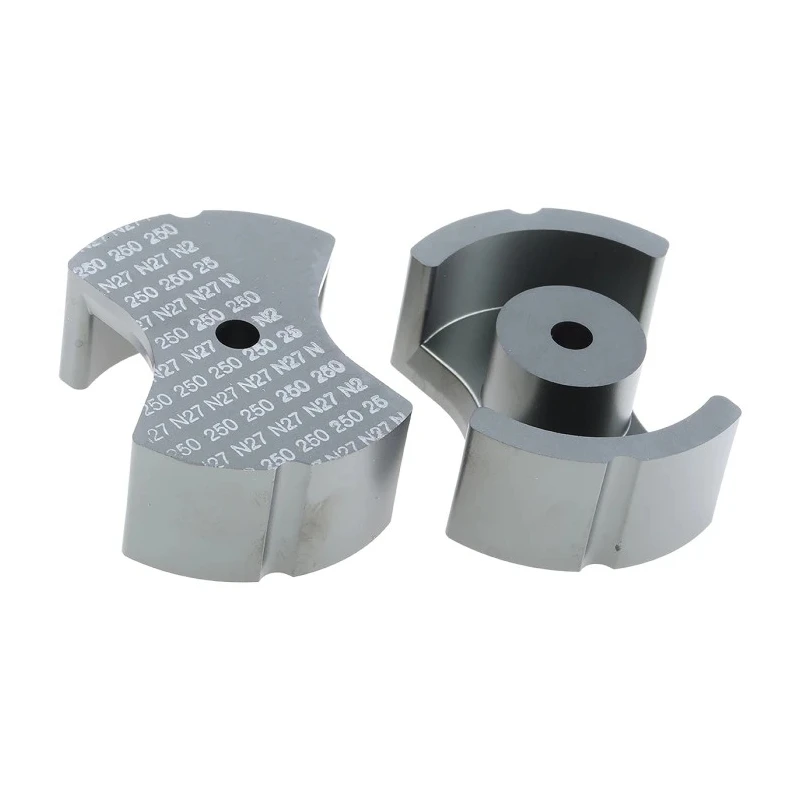

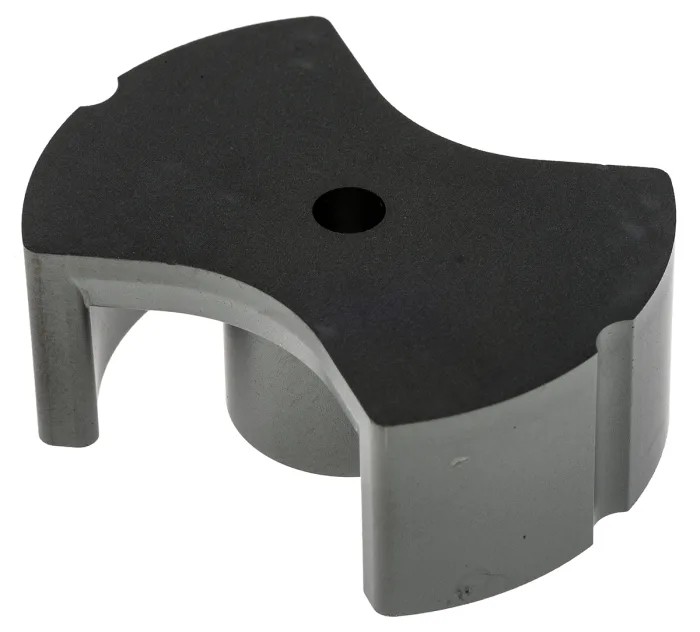

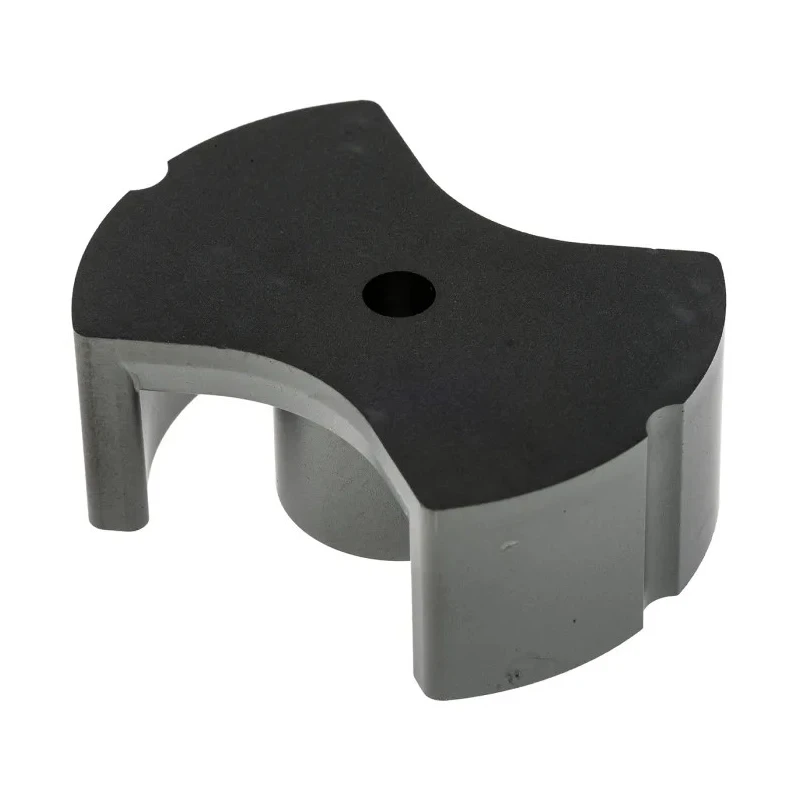

TDK Transformer Ferrite Core N27 PM 50/39, 250 nH AL Rating, Material N27, Length 50mm, Width 39mm B65646A0250A027
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | N27 |
| Length | 50mm |
| Model | B65646A0250A027 |
| Width | 39mm |
| Series | B65 |
| Maximum Operating Temperature | 155°C |
| For Use With | Power TransFormers |
| Standards/Approvals | IEC 61247 |
| Core Size | PM 50/39 |
| AL Rating | 250nH |
| Core Type | PM |
Key Features
- The core size is PM 50/39 designed for power transformers.
- Made from high-quality N27 ferrite material for optimal magnetic properties.
- Features a PM core type suitable for power repeaters and high-energy timed power devices.
- Has a maximum operating temperature of 155°C, ensuring durability under thermal stress.
- Includes holder clip and baseplate complete with nuts and washers for easy chassis or PCB assembly.
- Complies with IEC 61247 standards for transformer cores.
- Series B65 with an AL rating of 250 nH to enhance inductance performance.
Product Description
TDK B65646A0250A027 transformer ferrite core N27 PM 50/39 is engineered for power transformers where reliable magnetic performance is critical. It offers a 250 nH AL rating, utilizing premium N27 ferrite material that combines high permeability with low loss characteristics. This makes it suitable for use in power repeaters, storage coils in high-energy timed power supply devices, and other communications technology and industrial electronics applications.
The core is designed with specific dimensions of 50 mm length and 39 mm width to fit common chassis or printed circuit board assemblies. It includes a holder clip and baseplate complete with nuts and washers to facilitate secure mounting. For optimal assembly, the coil must be installed with soldered connections uppermost.
The transformer core complies with IEC 61247 standards, ensuring adherence to global quality and performance benchmarks. Its maximum operating temperature rating of 155°C allows for robust operation in demanding environments. The B65 series core delivers consistent inductance and stability for power transformer and electronic component manufacturing needs.
Applications include power repeaters, high-energy timed power supplies, and a variety of communications and industrial electronics where magnetic core reliability is essential. This product is designed to enhance production efficiency by being ready for direct insertion into machinery and assembly lines.
The core fits industry-standard transformer core requirements with PM 50/39 size. High-quality N27 ferrite material provides superior magnetic properties. Supports power transformers with a 250 nH AL rating. Maximum operating temperature of 155°C ensures thermal reliability.
Complete mounting hardware included for easy chassis or PCB installation. Meets IEC 61247 certification standards. Applicable in communications, industrial electronics, and power supply devices. Explore more transformer core solutions and electrical components at EnvMart for improved industrial and electronic manufacturing outcomes.
Explore more products in our Transformer Cores category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK transformer ferrite core has an AL rating of 250 nH, which enhances its inductance performance.
This ferrite core has a length of 50 mm and a width of 39 mm, fitting the PM 50/39 core size specification.
The maximum operating temperature for this transformer ferrite core is 155°C, allowing it to operate reliably under thermal stress.
This transformer core complies with IEC 61247 standards, ensuring adherence to global quality and performance benchmarks.
It is made from N27 ferrite material, which provides high permeability and low loss characteristics for optimal magnetic performance.
The core includes a holder clip and baseplate complete with nuts and washers for easy chassis or PCB assembly.
This transformer core is suitable for power transformers, power repeaters, and high-energy timed power supply devices, among other industrial electronics applications.
The core type of this transformer ferrite core is PM, specifically designed for power transformers.
Yes, it is designed to enhance production efficiency by being ready for direct insertion into machinery and assembly lines.
The PM 50/39 core size fits industry-standard transformer core requirements, making it compatible with common chassis and PCB assemblies.
This transformer ferrite core is manufactured in India.
