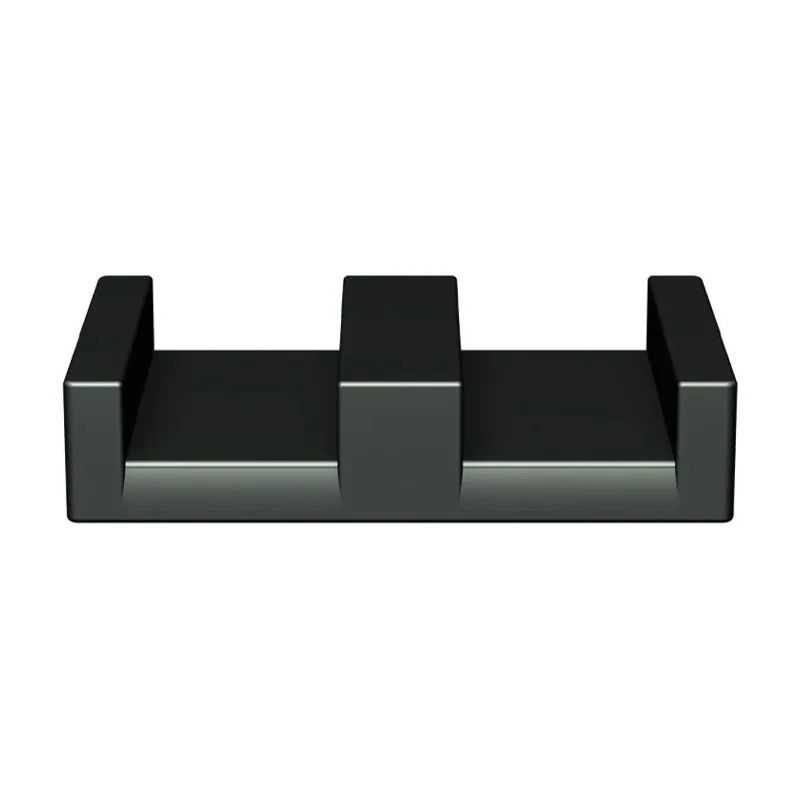

TDK N87 ELP Transformer Ferrite Core 2600 nH, EELP18 Core Type, 18x10x4 mm, Max Temp 100°C B66283G0000X187

TDK B66283G0000X187 N87 ELP Transformer Ferrite Core is engineered specifically for power transformer and planar magnetic uses. This E shape, low-profile ferrite core enables flat transformer designs that maximize thermal performance and reduce space requirements in electrical assemblies.

Built from N87 ferrite material, the core provides exceptional magnetic and thermal characteristics, making it ideal for efficient energy transfer and heat dissipation. The AL Rating of 2600 nH offers precise inductance critical to transformer functionality and electromagnetic compatibility in modern electronic circuits.

The ELP18 core geometry and 18 mm length, 10 mm width, and 4 mm depth make the part compatible with compact, high-density applications, particularly in low-profile power supplies, industrial controls, and communications equipment. Its planar E shape is specifically suited for surface-mount and embedded transformer manufacturing.

Reliability under harsh conditions is assured, with the maximum operating temperature reaching 100°C. This enables application in industrial settings such as automation, process control, and power distribution, as well as commercial electronics requiring robust transformer performance.

Compliance with IEC 62317-9 standard assures quality, interchangeability, and consistent performance. The N87 material’s low losses and optimized permeability further improve thermal management and support demanding designs.

The B66283G0000X187 is especially suitable for high-frequency, low-profile designs found in modern electronics.
