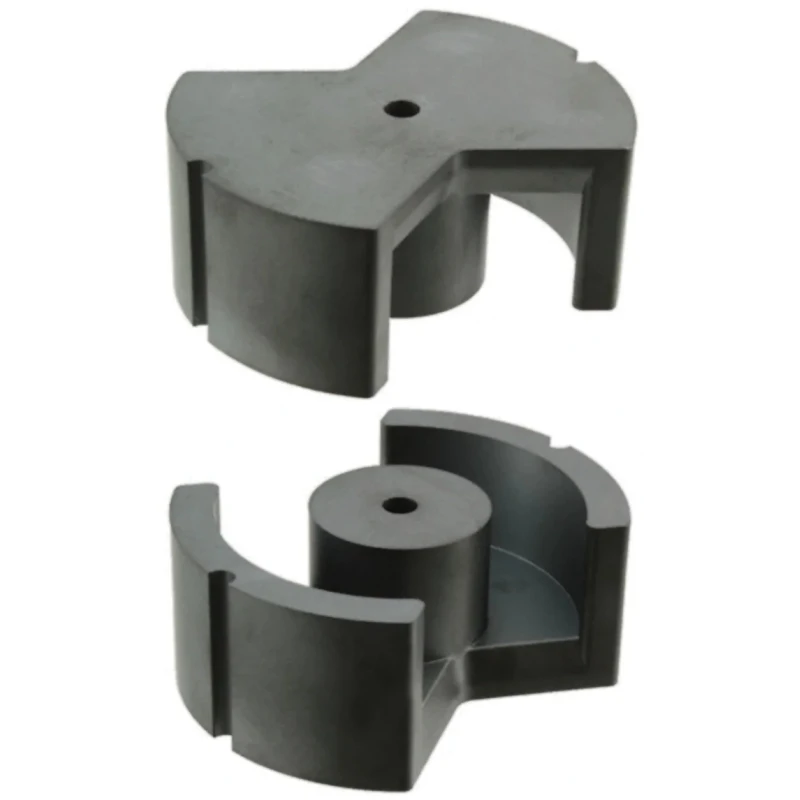

TDK N87 PM 62/49 Transformer Ferrite Core 9200 nH for Use With DC DC Converter B65684A0000R087

TDK B65684A0000R087 is a PM 62/49 Transformer Ferrite Core engineered for use with DC DC converters. It features an AL rating of 9200 nH and is manufactured from N87 ferrite material, assuring high magnetic efficiency and stability for power applications.

This transformer core meets IEC 61247 standards, making it suitable for demanding industrial environments. The core is part of the B65684 series, known for its performance in power repeaters, storage coils for high-energy timed power supplies, communications technology devices, and industrial electronic components.

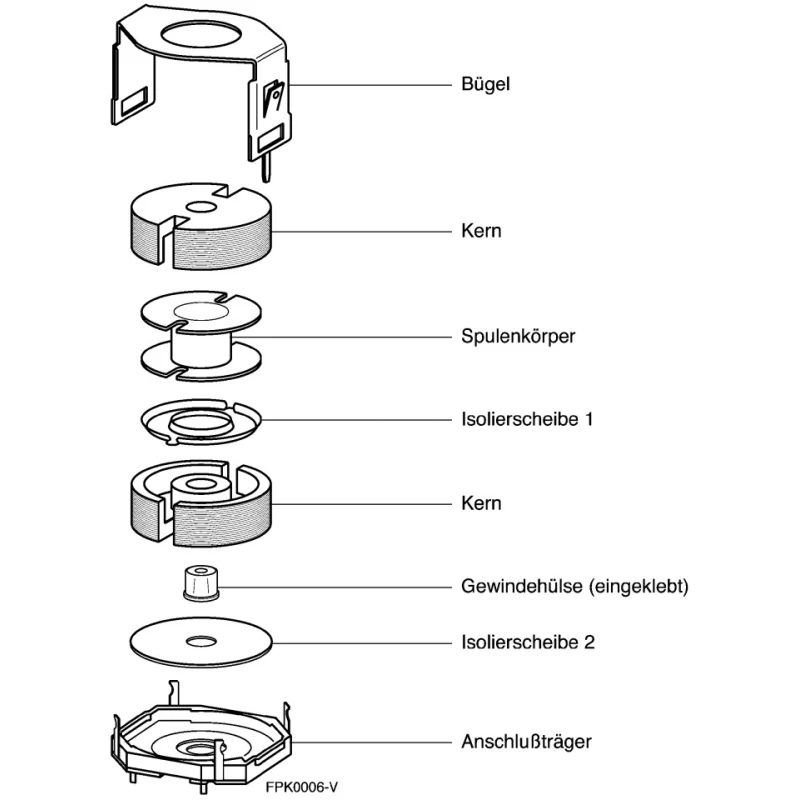

The product includes a holder complete with nuts and washers, facilitating secure chassis or PCB assembly. Correct installation requires the coil to have soldered connections uppermost to maximize performance and reliability.

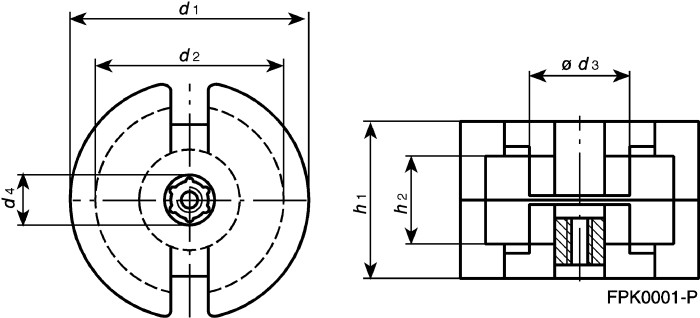

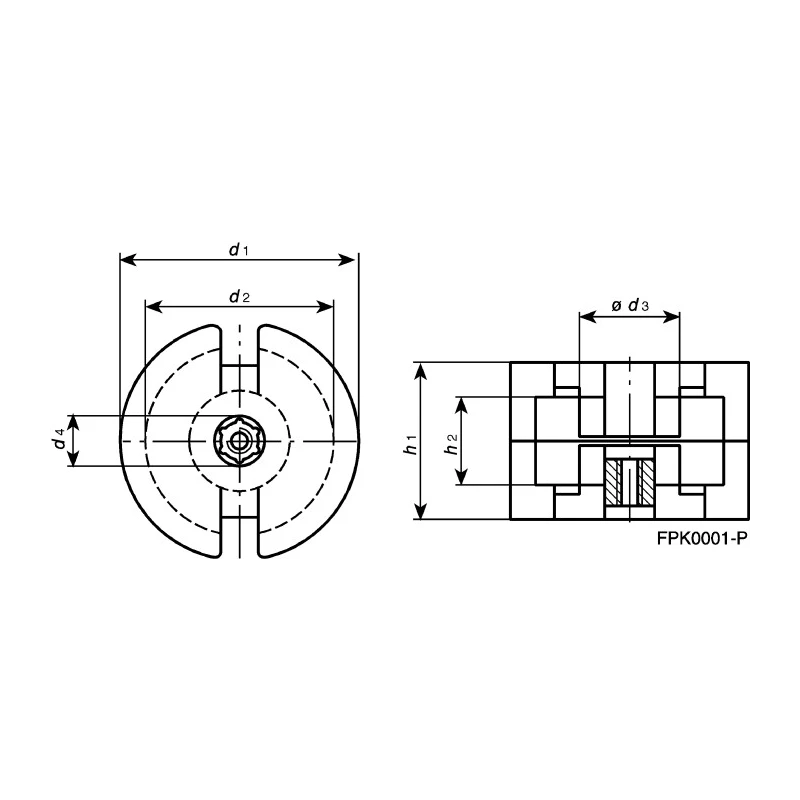

The dimensions of 62 mm length and 49 mm width conform to the PM 62/49 size classification, making it ideal for precise fitting in corresponding transformer housings and assemblies.

Applications extend to various electronic transformers where consistent inductance and core quality are critical. This core provides excellent magnetic characteristics and mechanical robustness to enhance overall transformer lifetimes and efficiency.

The core size is PM 62/49 mm, well-suited for specific transformer designs. N87 material ensures exceptional magnetic and temperature stability. Adheres to IEC 61247 standards for compliance and durability. Includes a holder with nuts and washers for easy mounting.

Designed for use in power repeaters, timed power supplies, and industrial electronics. For additional transformer component needs, explore the extensive range of TDK Transformer Cores and accessories at EnvMart.
