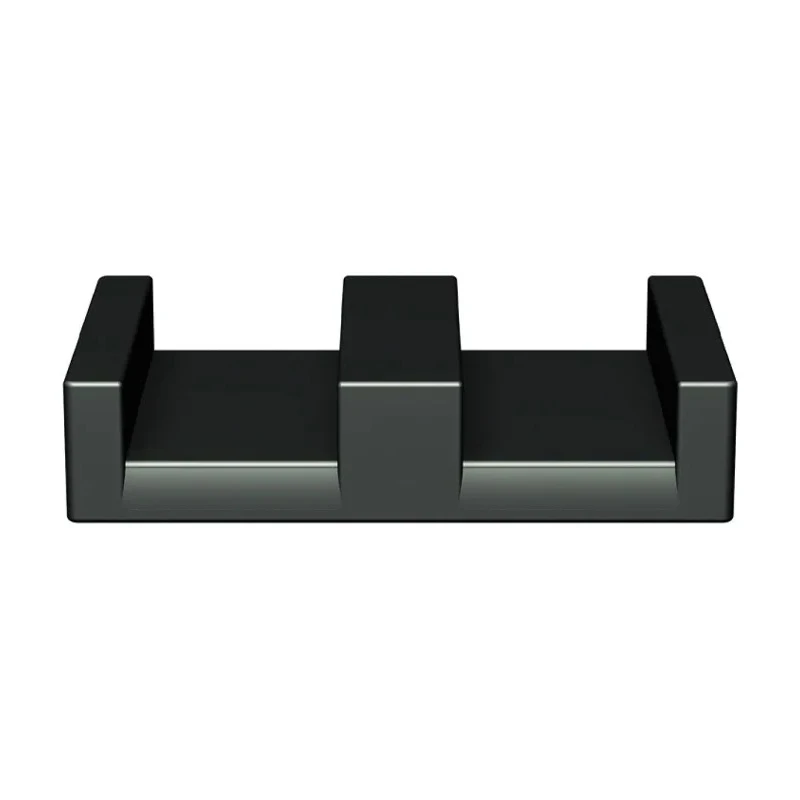

TDK N87 ELP 38/8/25 Transformer Ferrite Core 7200 nH For Use With Power Transformers B66289G0000X187

The TDK B66289G0000X187 N87 ELP 38/8/25 Transformer Ferrite Core is expertly engineered to meet the requirements of high-performance power transformers. This core is manufactured from N87 ferrite material, renowned for its reliability and superior thermal properties. The planar ELP 38/8/25 core size provides substantial core surface area, allowing for effective heat dissipation and stable operation at elevated temperatures.

Thanks to its E shape planar design, this ferrite core is ideal for low-profile transformers where space constraints are a concern. Its inductance rating of 7200 nH makes it suitable for demanding electronic applications, ensuring efficient magnetic performance and low losses during power conversion.

The B66289G0000X187 model complies with IEC 62317-9 international standards, guaranteeing product safety, consistency, and quality. With maximum operating temperature up to 100°C, the core delivers durability and performance in industrial, power supply, and manufacturing settings.

Key technical specifications include core dimensions of 38.1 mm in length, 25.4 mm in width, and 8.25 mm in depth. The robust N87 material supports high inductance and enhances transformer efficiency. Typical applications range from power supplies, industrial automation systems, and transformer manufacturing, to advanced electronics requiring low-profile magnetic solutions.

Integrating this TDK ferrite core into transformer designs allows for compact, reliable, and thermally efficient builds that meet modern industry needs. The product is part of TDK's ELP series, which specializes in flat planar cores for advanced power transformer applications.

High inductance ferrite core suited for power transformers. Flat planar E shape design enables space-saving transformer solutions. Engineered for stable performance at up to 100°C operating temperature. Complies with leading IEC 62317-9 safety and quality standards.

Part of TDK's advanced ELP series for industrial and electronic applications.

This transformer core finds its place in industrial automation, manufacturing, power supply systems, and demanding commercial electronic environments. Explore more transformer components and advanced solutions in the EnvMart Transformer Cores category and browse TDK products for leading magnetic and electronic innovations.
