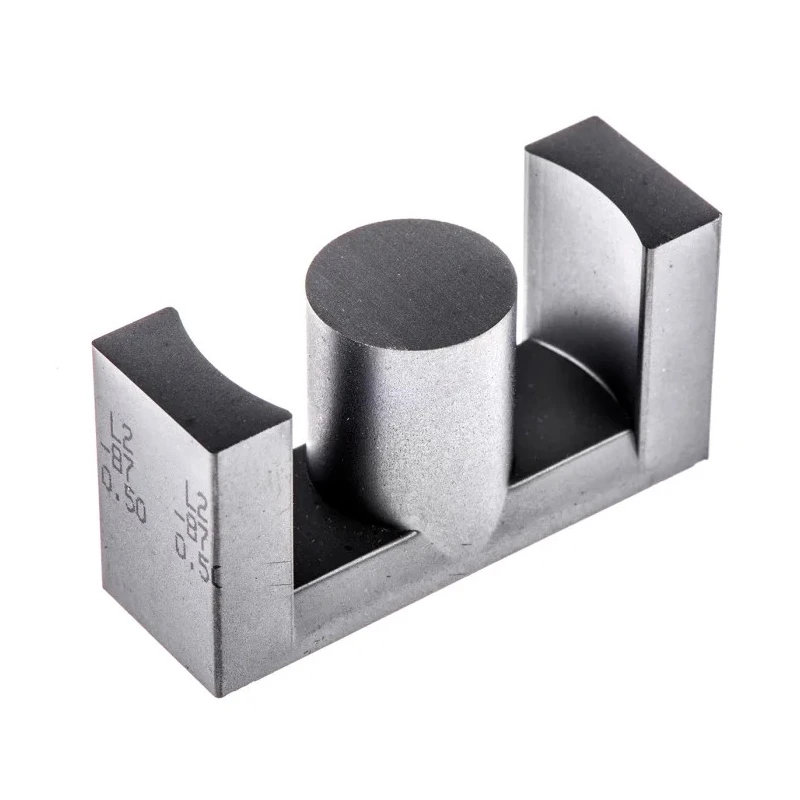

TDK Transformer Ferrite Core ETD 49, N87 Material, AL Rating 438nH, Max Operating Temp 100°C B66365G0500X187

TDK B66365G0500X187 transformer ferrite core ETD 49 is engineered specifically for switch-mode power supply (SMPS) transformers. Made from advanced N87 material, this ferrite core offers excellent magnetic properties with an AL rating of 438 nanohenries (nH), contributing to superior transformer efficiency.

The core dimensions are precisely 43.8 mm in length, 22.5 mm in width, and 15.2 mm in depth, ensuring a perfect fit in transformer assemblies. The maximum operating temperature of 100 degrees Celsius enables this core to perform reliably under demanding thermal conditions for industrial, electronic, and power supply manufacturing applications.

This product conforms to IEC 61185 standards and is RoHS compliant, supporting sustainable and safe use. Constructed from high-quality N87 material ensuring optimal magnetic performance. Core size ETD 49 suitable for efficient power transformers.

Maximum operating temperature up to 100 degrees Celsius supports reliable thermal operation. Dimensions: length 43.8 mm, width 22.5 mm, depth 15.2 mm for precise assembly. Complies with IEC 61185 standards and RoHS directives.

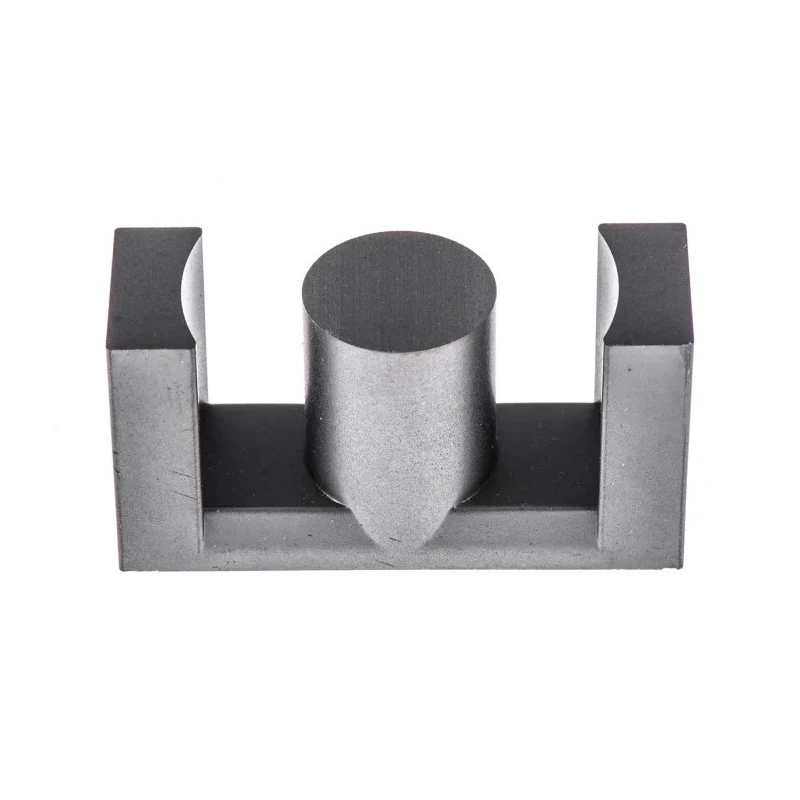

Series B66365 ensuring compatibility with advanced transformer designs. Features a round winding post for minimum winding resistance. Ideal choice for SMPS transformer applications requiring high efficiency and reliability.

Supports industrial, electronic components, power supply, manufacturing, and HVAC sectors.

Choose this TDK transformer ferrite core for superior power supply transformer performance, backed by trusted industry standards. Explore more in the Transformers & Transformer Parts category on EnvMart for related components and accessories.
