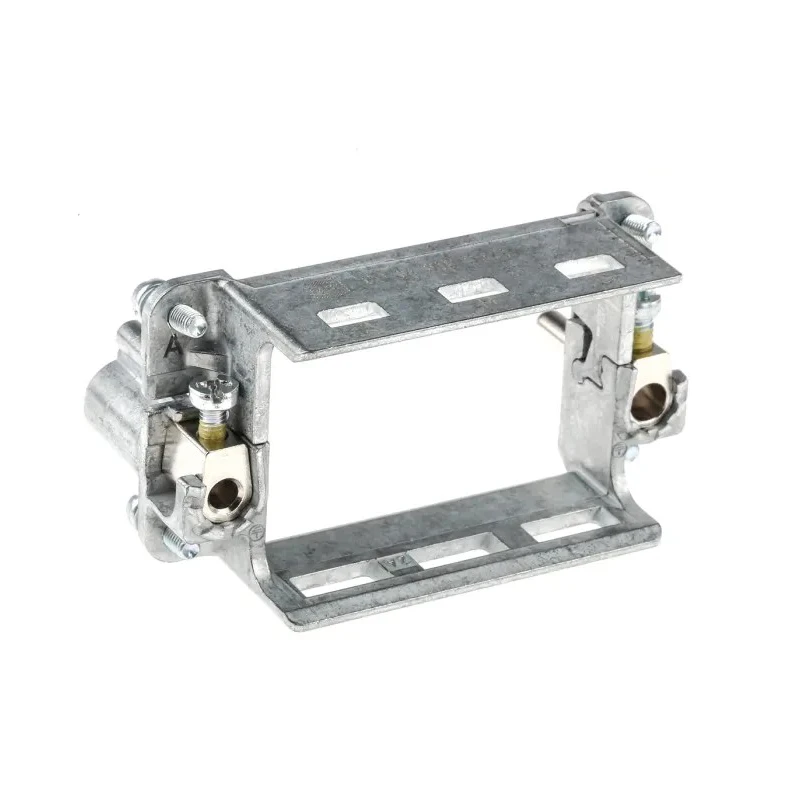

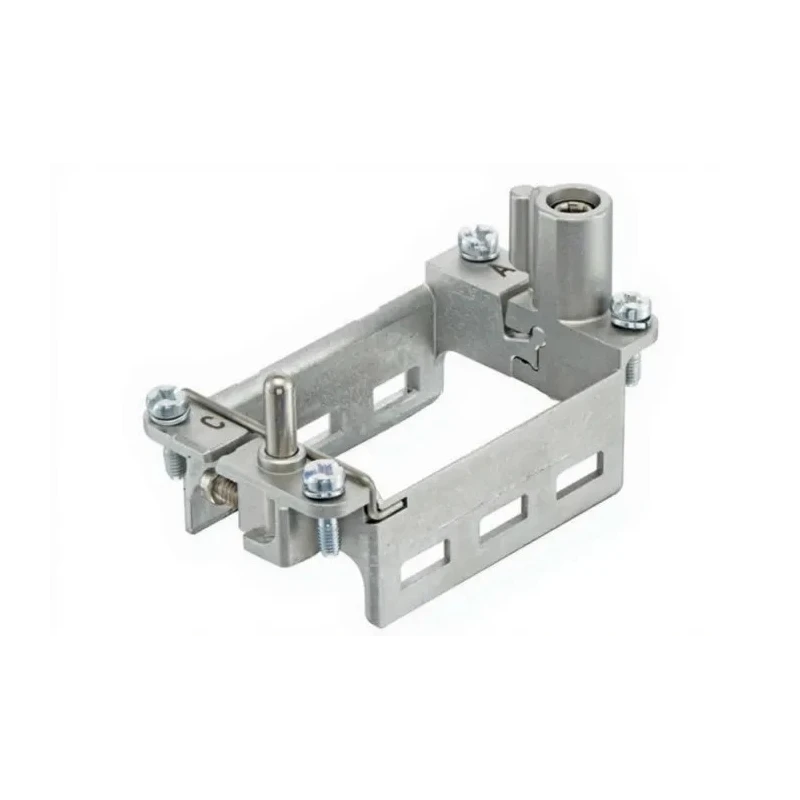

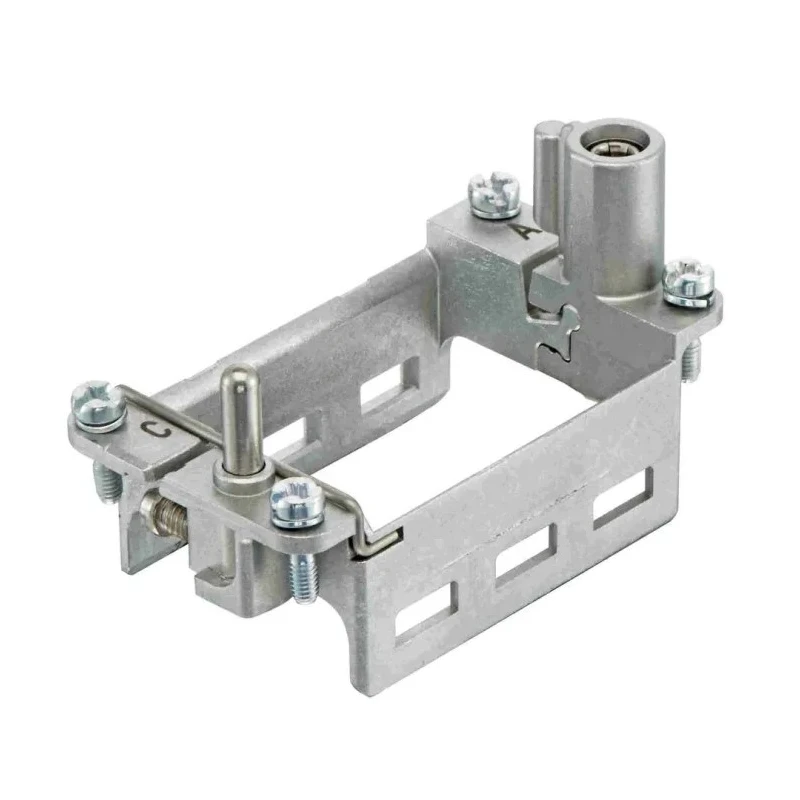

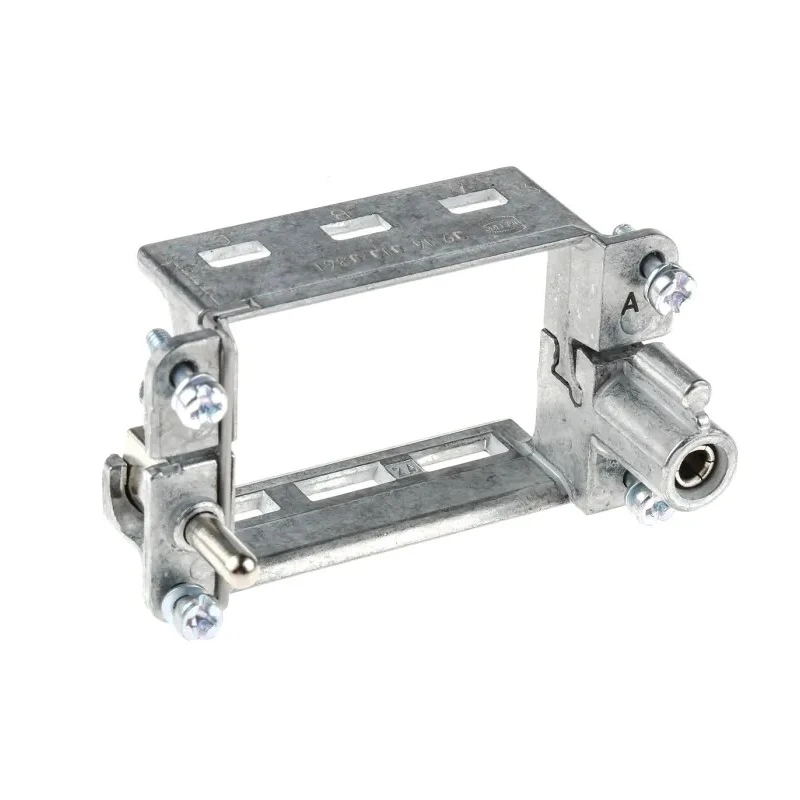

HARTING Hinged Frame, Han-Modular Series, Size 10B, Top Cable Entry, Stainless Steel, For Use With Han Modular 3 09140100361

HARTING 09140100361 Hinged Frame from the Han-Modular Series is a robust accessory designed for industrial connector assemblies that require reliable and organized wiring solutions. Featuring a 10B size format and a top cable entry angle, this hinged frame supports the secure installation of three modular inserts A - C, making it ideal for compact multi-module assemblies in control and automation panels.

The frame is engineered from zinc die-cast material complemented with stainless steel components, ensuring excellent mechanical strength and resistance to demanding electrical environments. It supports mating endurance of 500 cycles, making it durable for frequent maintenance tasks. Its operating temperature range from −40 to +125°C suits wide environmental conditions encountered in industrial settings.

This accessory accommodates conductor cross-sections from 1mm² to 10mm² on power contacts, with the use of ferrules recommended for conductors up to 10 mm² to guarantee secure terminations. For signal contacts, conductors ranging from 0.5 to 2.5 mm² are supported. Installation requires precise stripping of conductors to 8 to 10 mm and the use of recommended screwdrivers with defined torque values to ensure secure and compliant connections.

Compliant with IEC 60664‑1 and IEC 61984 standards, the hinged frame holds UL/CSA recognition and DNV GL approval, endorsing its use in critical industrial applications. It is particularly suitable for use in panel-mounted automation control units, manufacturing equipment for power and signal distribution, and switchgear systems where Han Modular 3 Module A - C configurations are employed.

This keyed accessory facilitates the replacement of worn carrier frames, aiding maintenance operations while preserving system integrity. Its compact size and top cable entry design optimize wiring routing and save panel space, which is crucial in dense industrial control environments.

Size 10B format suitable for compact multi-module installations. Top cable entry angle for efficient, space-saving wiring routing. Zinc die-cast construction for mechanical robustness. Mating endurance rated at 500 cycles for frequent maintenance.

Operating temperature range from −40 to +125°C. Supports conductors from 1mm² to 10mm² with ferrules for larger wires. Compliance with IEC 60664‑1 and IEC 61984 standards. UL/CSA recognition and DNV GL approval for industrial use.

Ideal for automation control units and manufacturing power distribution. Facilitates replacement of worn carrier frames during maintenance. Explore the HARTING brand and Han-Modular series products at EnvMart for reliable industrial connector solutions.
