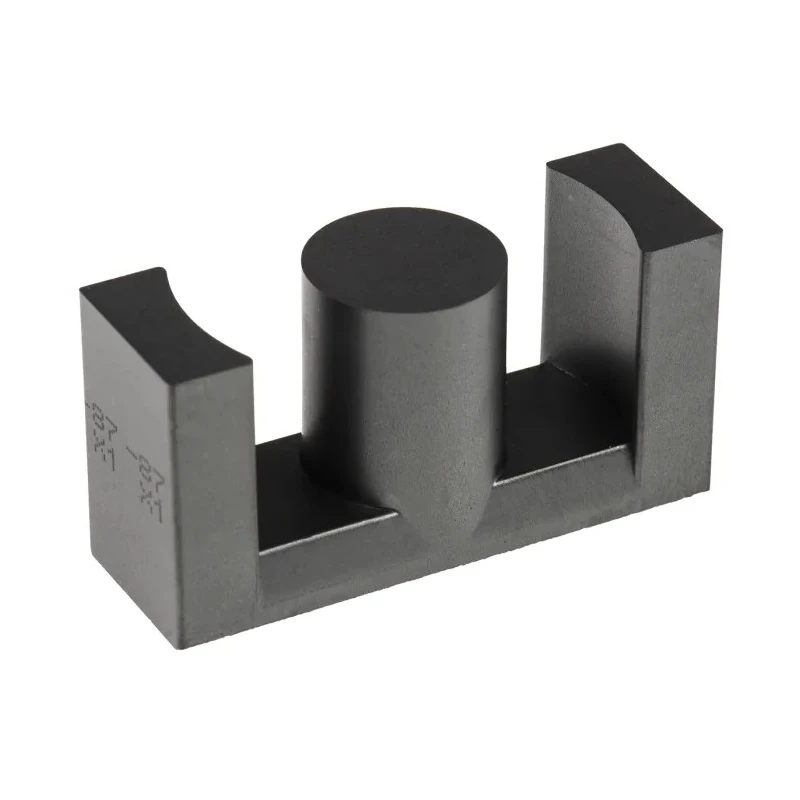

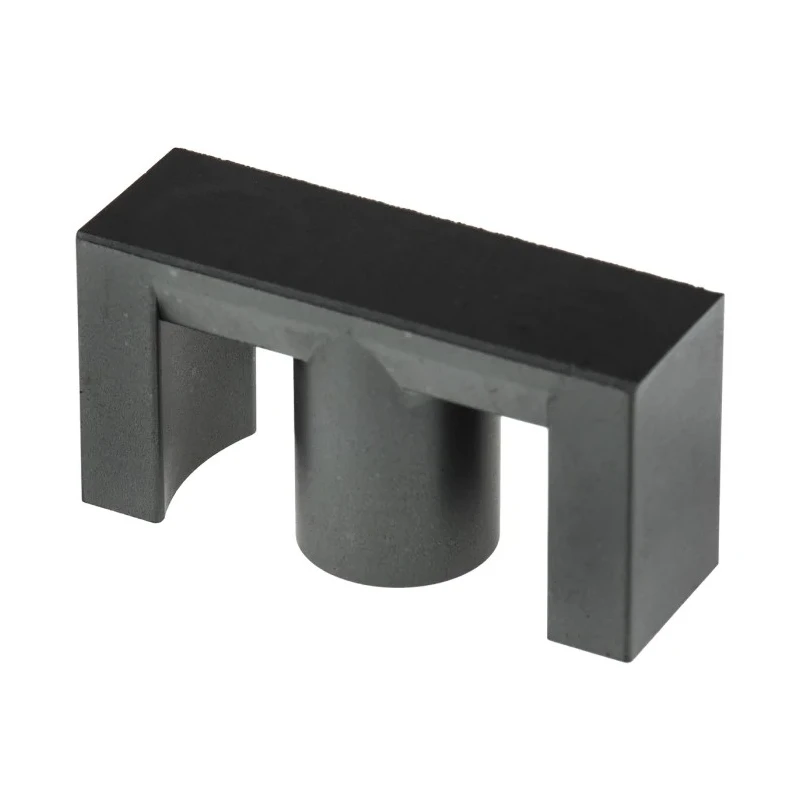

TDK ETD 44 Transformer Ferrite Core N87 Material 3500 nH AL Rating B66365G0000X187

TDK B66365G0000X187 ETD 44 Transformer Ferrite Core is designed with N87 material exhibiting an AL rating of 3500 nH. This core is ideal for use with switch-mode power supply (SMPS) transformers where efficiency and performance are critical. The ETD 44 core shape ensures low winding resistance and enhances transformer efficiency, making it suitable for a variety of industrial and electronic equipment applications.

Manufactured under stringent IEC 61185 standards, this ferrite core handles a maximum operating temperature of 100°C, providing reliability in demanding environments. The core dimensions are precisely 43.8 mm length, 22.5 mm width, and 15.2 mm depth, ensuring compatibility with standard transformer designs.

TDK's B66365 series represents a trusted line of transformer cores optimized for power supplies and electronic circuits. The N87 material offers excellent magnetic permeability and low losses, enhancing overall transformer efficiency and durability during operation.

Manufactured from high-quality N87 ferrite material ensuring consistent magnetic characteristics. Complies with IEC 61185 standards for transformer core performance. ETD 44 core size facilitates compact transformer construction.

Optimized for switch-mode power supplies improving power efficiency. Maximum operating temperature of 100°C ensures stable operation under load. Includes precise dimensions: 43.8 mm length, 22.5 mm width, and 15.2 mm depth.

Designed to minimize winding resistance for enhanced transformer performance. Part of B66365 series tailored for transformer applications in electronics and industrial equipment.

This transformer ferrite core is suitable for use in industrial, electronics, manufacturing, and power supply applications where reliable magnetic components are crucial. Explore more Transformer Cores and electronic components within the EnvMart catalog to find complementary parts and ensure quality system integration.
