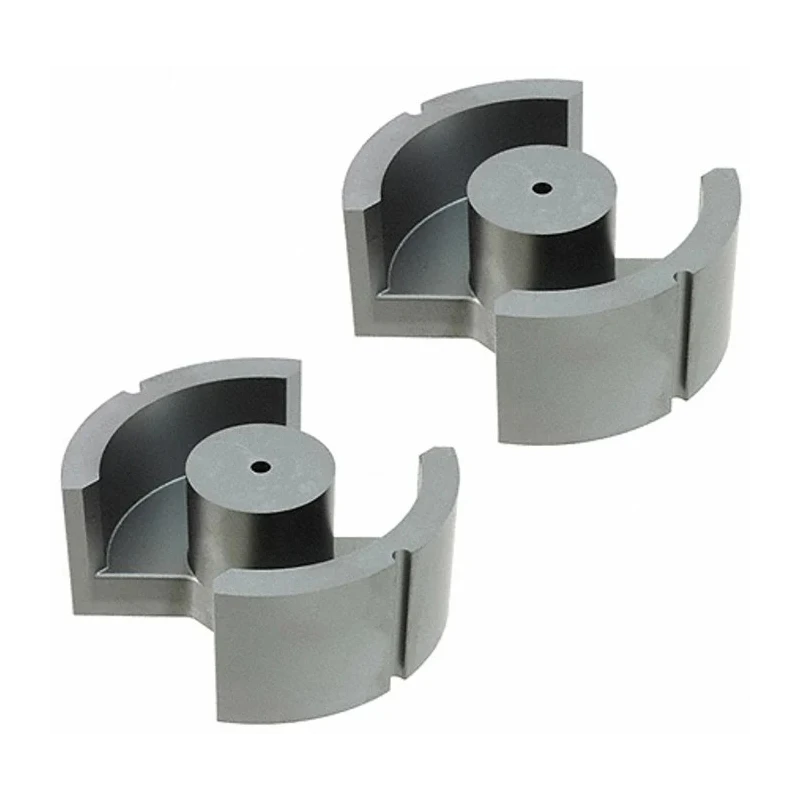

TDK Transformer Ferrite Core PM 114/93, AL Rating 16000 nH, Material N87, 155°C Max Operating Temperature B65733A0000R087

TDK B65733A0000R087 Transformer Ferrite Core PM 114/93 is a high-performance core designed for use in power transformers requiring efficient magnetic properties. Made from premium N87 ferrite material, this core exhibits excellent magnetic shielding and minimal stray capacitance, making it ideal for transformer design in telecommunications and industrial electronics.

The core features an AL rating of 16000 nH, supporting effective inductance and energy storage capabilities. Its pot core configuration offers a wide flux area enabling high power handling with fewer turns, optimizing transformer efficiency.

Engineered to operate reliably up to a maximum temperature of 155°C, the core ensures durability under demanding operational conditions. Dimensions of 114 mm width by 93 mm length and depth make it compatible with a range of power transformer assemblies.

Certified to IEC 61247 standards, the B65733 series guarantees compliance with international Transformer Core requirements. This product is manufactured in the Czech Republic, reflecting high build quality and material standards.

Constructed from N87 ferrite material for superior magnetic characteristics. AL rating of 16000 nH provides efficient inductive properties. Maximum operating temperature of 155°C ensures thermal stability. Dimensions: 114 mm (W) x 93 mm (L) x 93 mm (D) for precise integration.

IEC 61247 standard compliance guarantees quality and performance. Pot core shape reduces magnetic leakage and stray capacitance. Ideal for use in telecommunications and industrial electronics up to 300 kHz.

This transformer ferrite core finds extensive industrial use in manufacturing, power supply design, telecommunications, and electronic equipment production. Its reliable performance and compliance make it a key component in professional transformer assembly and repair applications.
