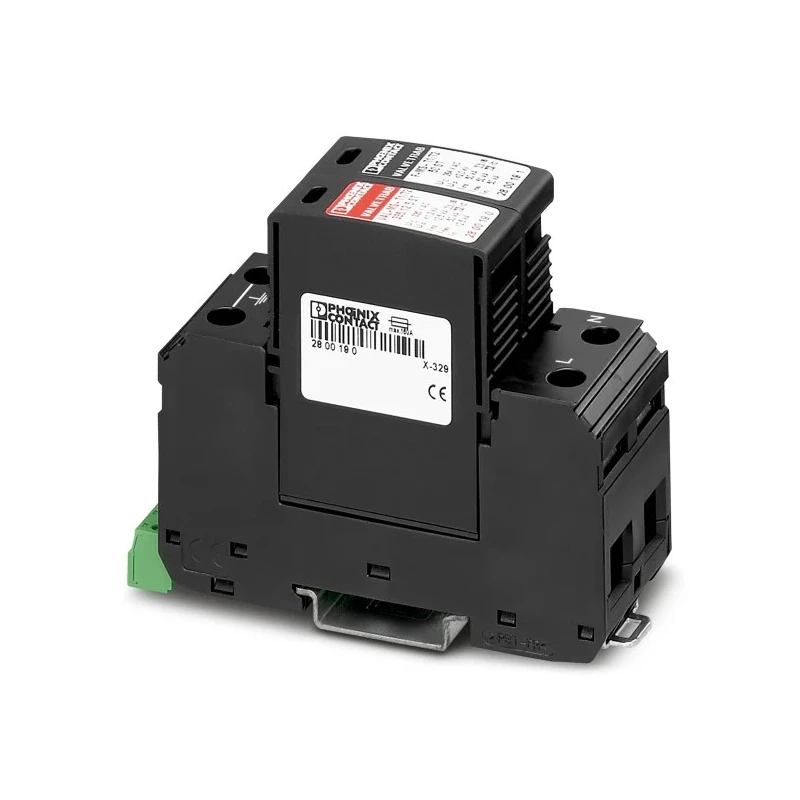

Phoenix Contact Single Phase Industrial Surge Protector, 50 kA, 250 V AC, DIN Rail Mount 2800186

Phoenix Contact 2800186 single phase surge protector is engineered for industrial and commercial electrical systems requiring effective surge protection. This device provides a maximum surge current capacity of 50kA, protecting equipment from transient voltage spikes commonly caused by lightning and switching events. It is tailored for low-voltage systems at 250 V AC and is suitable for use in automated assemblies, packaging lines, and processing equipment.

The compact form factor with dimensions of 99mm length, 35.6mm width, and 77.5mm depth allows efficient use of DIN rail space within control panels. Its secure vibration-resistant latching mechanism provides reliable attachment even in environments subject to electrical or mechanical disturbances.

Equipped with a floating remote indication contact, this surge protector allows remote monitoring without occupying space on the distribution board. Each plug features a thermal disconnect that enhances safety by isolating faults during surge events.

Compliant with IEC 61643-11, an international standard for surge protection devices, it ensures tested and certified reliability. The unit supports a wide operating temperature range of -40°C to +80°C, making it suitable for demanding industrial applications with temperature extremes.

An ingress protection rating of IP20 prevents accidental contact with energized components and protects against ingress of larger solid objects. This model belongs to the VAL-MS-T1/T2 335/12.5/1+1-FM series recognized for high performance in surge arrestors.

Typical applications include protection of critical infrastructure in commercial warehouses, industrial factories, and manufacturing facilities. Use of this device helps mitigate downtime, equipment damage, and safety hazards associated with electrical surges.

Choose the Phoenix Contact 2800186 surge protector for robust and reliable surge defense in your industrial electrical installations. Explore more Surge Protection Devices and electrical safety components in the Electronics & Electricals category to enhance system reliability.

Handles maximum surge current of 50kA providing robust protection against voltage spikes. Operates at a voltage protection rating of 250 V AC suitable for industrial control panels. Compact dimensions measuring 99mm length, 35.6mm width, and 77.5mm depth for space saving installation.

Designed for DIN rail mounting with a vibration-resistant latching mechanism ensuring secure fitment. Features a floating remote indication contact to enable remote status signalling. Includes thermal disconnect for each plug providing enhanced safety during surges.

Meets IEC 61643-11 standard assuring compliance with international surge protection requirements. Wide operating temperature range from -40°C to +80°C for reliable performance in harsh environments. Ingress protection rating of IP20 to prevent dust and finger intrusion.
