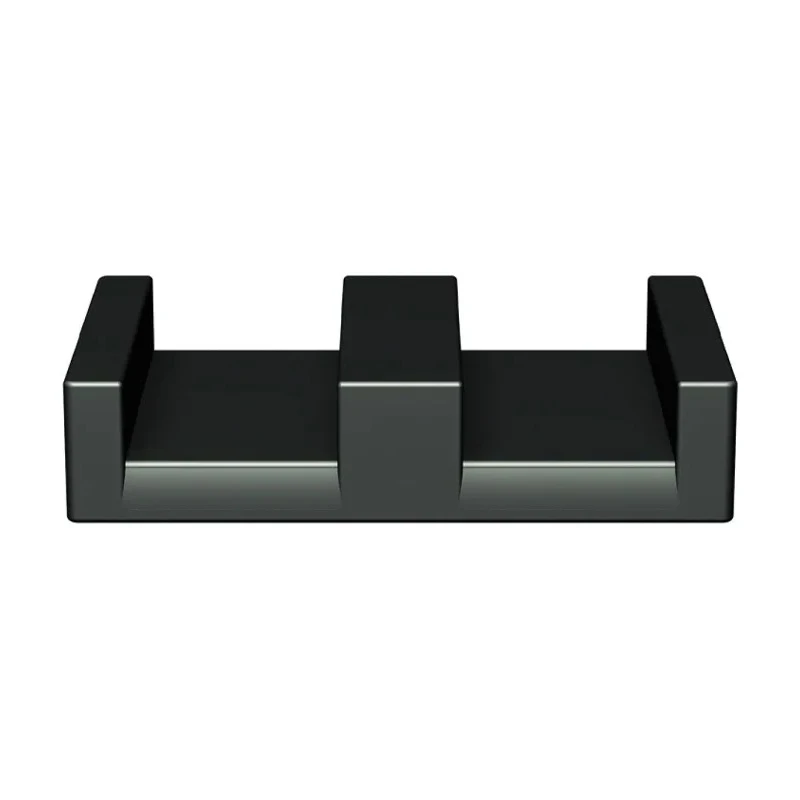

TDK Transformer Ferrite Core ELP 32/6/20, N87 Material, AL Rating 5700 nH, Core Type EELP 32 B66287G0000X187

TDK B66287G0000X187 Transformer Ferrite Core ELP 32/6/20 is engineered with high-quality N87 ferrite material specifically for use in power transformers. This planar ELP 32 core type offers a low profile design with excellent thermal characteristics, making it suitable for modern transformer applications where space and performance are critical.

The core features an AL rating of 5700 nH which ensures efficient magnetic flux handling. Measurement details include a length of 31.75 mm, depth of 6.35 mm, and width of 20.35 mm, optimally balanced for compact transformer designs.

Manufactured to comply with IEC 62317-9 standards, this ferrite core meets stringent quality and performance requirements necessary for reliable industrial and commercial transformer production. The planar E-shaped design provides an alternative to conventional cores, facilitating improved heat dissipation and mechanical stability.

Typical applications include power transformers in electronics and electrical devices requiring precise inductive components. The core is well suited for industrial, automotive, HVAC, and electrical distribution transformer manufacturing environments.

The core size is ELP 32/6/20 providing a compact planar design. Made from N87 material ensuring excellent magnetic characteristics and thermal stability. Compliant with IEC 62317-9 standard for transformer cores. The core dimensions include 31.75 mm length, 6.35 mm depth, and 20.35 mm width.

Ideal for use in power transformer manufacturing with a planar E shape core. Offers low profile magnetic device design suitable for efficient thermal management. Designed for robust performance following IEC standards.

This transformer core supports the design and production of efficient, compact transformer solutions in a variety of industrial and electronic applications. Explore more products within our Transformer Core category on EnvMart for comprehensive solutions.
