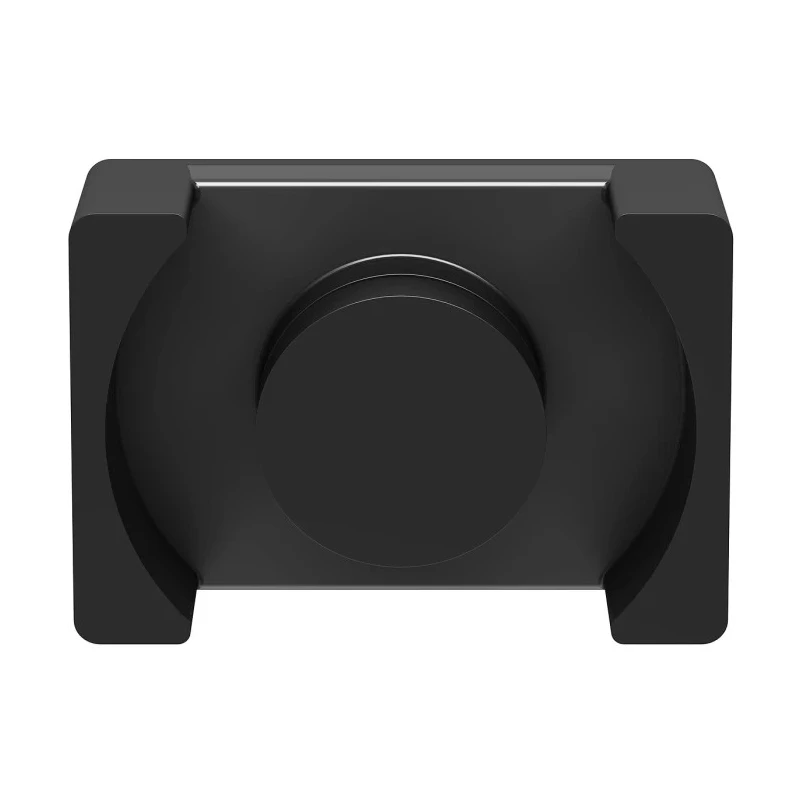

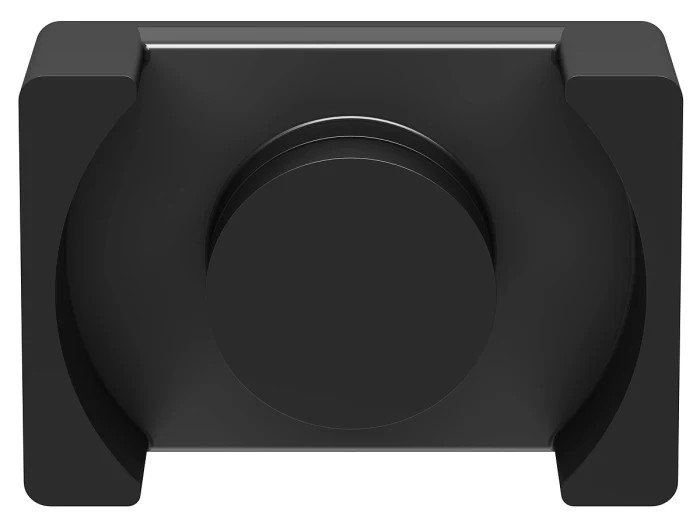

TDK Transformer Ferrite Core EQ 30/8, N97 Material, 4500 nH AL Rating, 30mm Length, 20mm Width, 8mm Depth B66506G0000X197

TDK B66506G0000X197 transformer ferrite core EQ 30/8 offers a high-quality, low-loss magnetic core solution tailored for power transformer designs. Made of N97 ferrite material, it provides an AL rating of 4500 nH, facilitating excellent inductance characteristics with minimal energy loss. Its compact dimensions of 30 mm length, 20 mm width, and 8 mm depth enable integration into low-profile power transformers and printed circuit boards.

This transformer core features a centre post construction, allowing versatile winding techniques and enabling customized transformer solutions. The core material ensures high saturation levels and low electromagnetic interference (EMI), important for maintaining signal integrity and energy efficiency in industrial electronic applications.

Its maximum operating temperature rating of 100°C ensures stable operation in demanding environments. The core conforms to IEC 62317-9 standards, reflecting its quality assurance and suitability for global industrial applications.

TDK B66506G0000X197 ferrite core is ideal for use in electrical power supplies, industrial transformers, power conversion equipment, and other applications requiring precise magnetic performance with low size profiles. The design provides reduced winding lengths which minimizes EMI and enhances transformer lifespan.

Core size EQ 30/8 designed for compact power transformer use. Constructed of low-loss N97 ferrite material for high efficiency. Rated maximum operating temperature of 100°C ensures reliable performance. Dimensions include 30mm length, 20mm width, and 8mm depth for low profile integration.

Complies with IEC 62317-9 standard for quality and safety. Features a centre post design enabling advanced winding configurations. Optimised for reduced electromagnetic interference in transformer applications. Explore the range of TDK Transformer Cores and related products in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
