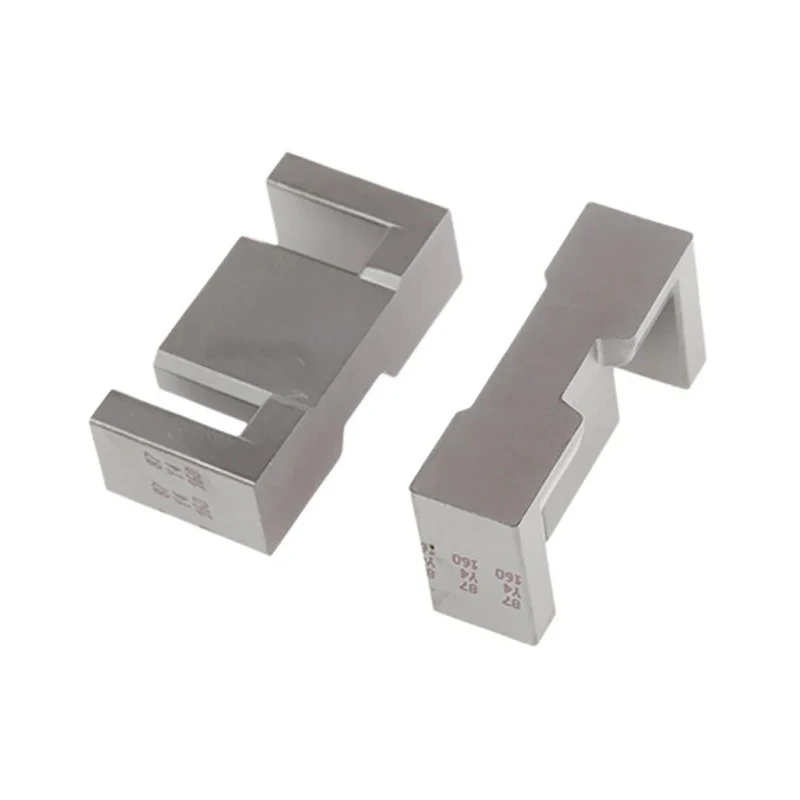

TDK Transformer Ferrite Core EFD 30 Core Size, 160nH AL Rating, N87 Material, 180°C Max Operating Temperature B66423U0160K187
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | N87 |
| Length | 30mm |
| Model | B66423U0160K187 |
| Depth | 9.1mm |
| Width | 15mm |
| Series | B66423 |
| Maximum Operating Temperature | 180°C |
| For Use With | DC DC Converter |
| Core Size | EFD 30 |
| AL Rating | 160nH |
Key Features
- Constructed using N87 material ensuring high magnetic performance.
- Core size is EFD 30 with precise dimensions for transformer applications.
- AL rating of 160nH suitable for DC-DC converter efficiency.
- Maximum operating temperature is rated at 180°C for durability.
- Designed for use in power supply transformers and DC-DC converters.
- Operating without associated standards or approvals.
- Suitable for industrial electronics and power management applications.
Product Description
The TDK B66423U0160K187 Transformer Ferrite Core with core size EFD 30 is engineered for efficient use within DC DC Converter circuits. Utilizing high-quality N87 ferrite material, this core offers reliable magnetic properties with an AL rating of 160nH, enhancing transformer performance.
The core dimensions are precisely 30mm length, 15mm width, and 9.1mm depth, making it suitable for compact transformer assembly. Its maximum operating temperature of 180°C ensures it performs reliably in demanding thermal conditions.
This ferrite core is optimized for applications involving power supplies and DC-DC converters, helping improve power conversion efficiency and reducing electromagnetic interference.
Although the product does not carry specific standards or approvals, it is widely used in industrial electronic manufacturing, power management systems, and laboratory setups requiring high-quality transformer components.

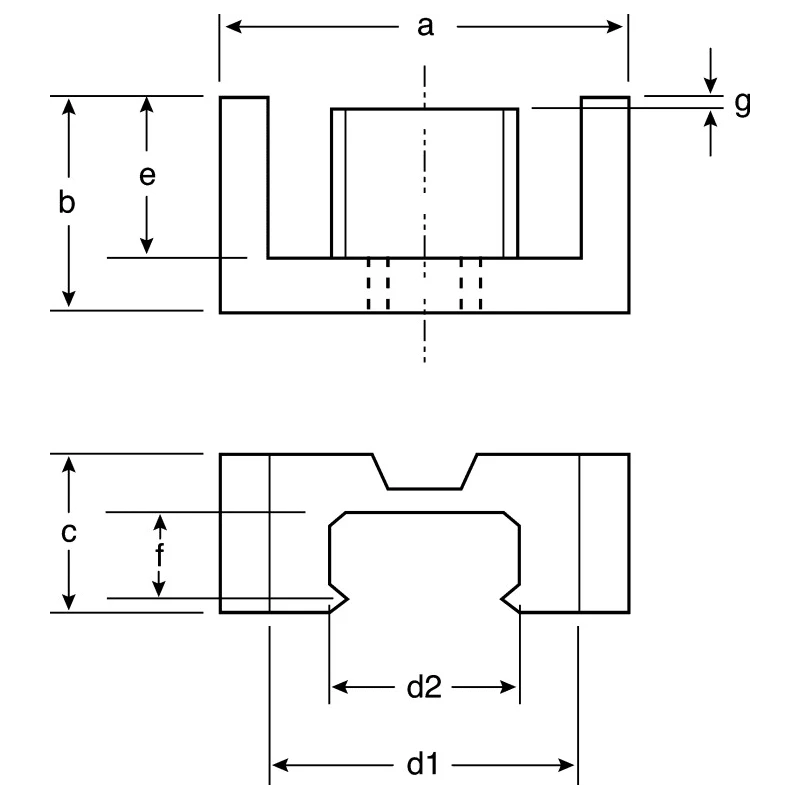

Constructed from N87 ferrite material for consistent magnetic characteristics. Core size EFD 30 fits various transformers and inductors. 160nH AL rating ideal for power supply applications. Dimensions: 30mm (L) x 15mm (W) x 9.1mm (D).
Reliable operation up to 180°C temperature environments. Designed for DC DC converter integration. Supports enhanced efficiency and reduced electromagnetic interference. Applicable across industrial, commercial, and laboratory electronic domains.
This product is part of the TDK B66423 series and is specifically suited for transformer core assemblies in advanced power electronics design. Browse other Transformer Cores from TDK and related components to find compatible solutions for your power conversion needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AL rating of this ferrite core is 160nH, making it suitable for enhancing the efficiency of DC-DC converters.
The dimensions of the EFD 30 core are 30mm in length, 15mm in width, and 9.1mm in depth.
The maximum operating temperature for this model is rated at 180°C, allowing it to perform reliably in high-temperature environments.
This transformer core is constructed using N87 material, which ensures high magnetic performance.
It is designed for use in power supply transformers and DC-DC converters, improving power conversion efficiency and reducing electromagnetic interference.
This product does not carry specific standards or approvals, but it is widely used in industrial electronic manufacturing and power management systems.
This ferrite core is optimized for use within DC-DC converter circuits, enhancing transformer performance.
The core size of this model is EFD 30, which fits various transformers and inductors.
This transformer core is applicable across industrial, commercial, and laboratory electronic domains, particularly in power management applications.
The N87 material is used to provide consistent magnetic characteristics, enhancing the overall performance of the transformer core.
The 160nH AL rating is significant as it indicates the core's suitability for improving the efficiency of DC-DC converters, which is crucial for power management.
The country of origin for this transformer ferrite core is India.
