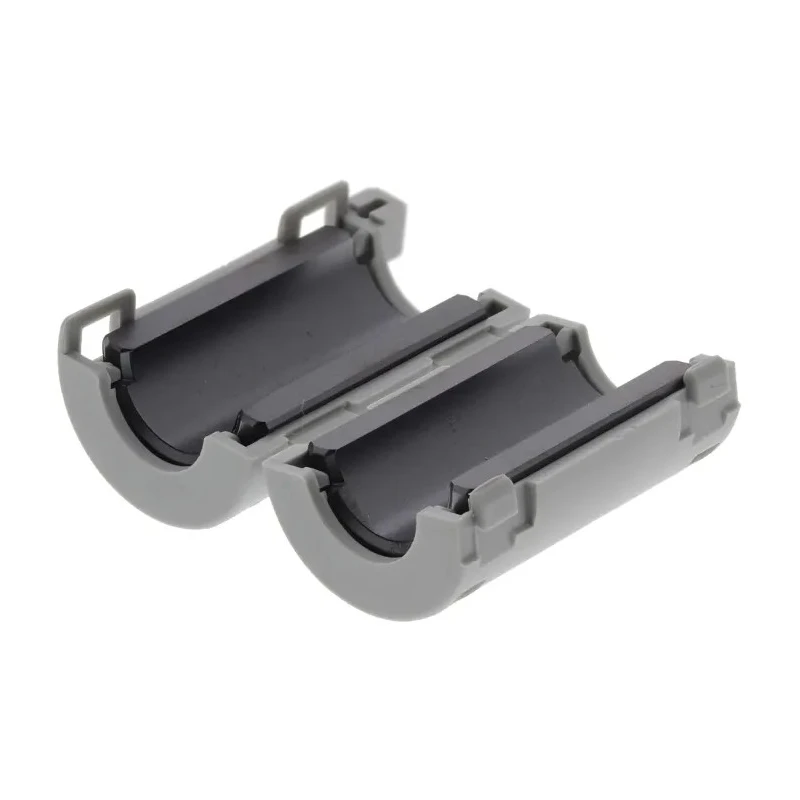

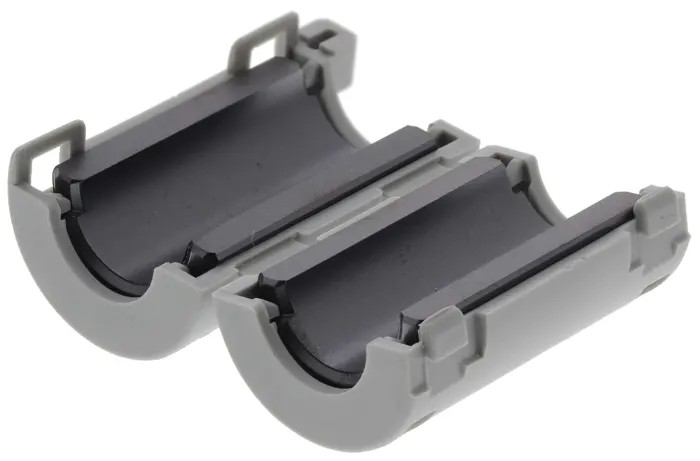

TDK Openable Diameter 11 mm Ferrite Sleeve for Suppression Components ZCAT2132-1130
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT2132-1130 |
| Series | ZCAT |
| Aperture diameter | 11mm |
| Sub Type | Ferrite Core |
| External Width | 36mm |
| External Depth | 32mm |
| External Height | 22mm |
| Standards/Approvals | RoHS, REACH |
| Impedance at 100 MHz | 80Ω |
| Impedance at 25 MHz | 40Ω |
| Number of Apertures | 1 |
| TDK Openable, Diameter 11 mm Ferrite Sleeve, Apertures | 1 32 mm 22 mm 36 mm, For Suppression Components |
Key Features
- The sleeve is openable and constructed for easy installation on cables.
- It has a single aperture with an 11 mm diameter.
- Impedance values are 40Ω at 25 MHz and 50 MHz, increasing to 80Ω at 100 MHz, 300 MHz, and 500 MHz.
- The external dimensions are 32 mm depth, 36 mm width, and 22 mm height.
- Made of 30 Material, ensuring reliable EMI suppression.
- Features a self-holding mechanism to prevent slippage on cables.
- Complies with RoHS and REACH standards for environmental safety.
- Its gapped design is marked as no, ensuring solid ferrite core performance.
Product Description
TDK ZCAT2132-1130 is an openable ferrite sleeve designed for EMC suppression components with an aperture diameter of 11 mm. This ferrite core sleeve provides excellent absorption of high-frequency electromagnetic interference, making it ideal for various electronic applications.
The ferrite sleeve has a single aperture with precise external dimensions of 32 mm depth, 36 mm width, and 22 mm height. Its impedance characteristics are 40 ohms at 25 MHz and 50 MHz, rising to 80 ohms at 100 MHz and beyond up to 500 MHz, ensuring effective attenuation of unwanted signals.
Constructed from 30 Material and complying with RoHS and REACH standards, the ZCAT2132-1130 sleeve guarantees environmental compliance and material safety. Its openable design with a snap lock mechanism allows for easy installation and prevents accidental opening, suitable for pre-installed cables or those with connectors.
Applications of this ferrite sleeve include use in personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, facsimiles, and other office machinery. It serves as a practical solution in industrial, manufacturing, commercial, and electronic environments, reducing common mode EMC without adverse effects on signal quality.
Its design features a self-holding mechanism that prevents slippage on cables, while the large core size prevents saturation during signal surges, enhancing the reliability of connected equipment.
The sleeve is openable and constructed for easy installation on cables. Single aperture with 11 mm diameter for cable fitting. Impedance values are 40Ω at 25 MHz and 50 MHz, 80Ω at 100 MHz, 300 MHz, and 500 MHz. External dimensions are 32 mm depth, 36 mm width, and 22 mm height.
Constructed from 30 Material compliant with RoHS and REACH. Self-holding mechanism to prevent slippage. Snap lock design enables secure fitting and prevents accidental openings. Highly effective in reducing electromagnetic interference in data and power cables.
Explore more electronic components and Ferrite Sleeves at EnvMart for industrial and laboratory applications, ensuring high performance and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance values of this ferrite sleeve are 40Ω at 25 MHz and 50 MHz, increasing to 80Ω at 100 MHz, 300 MHz, and 500 MHz.
The external dimensions of the TDK ZCAT2132-1130 are 32 mm in depth, 36 mm in width, and 22 mm in height.
The aperture diameter of this model is 11 mm, designed for easy installation on cables.
This ferrite sleeve is constructed from 30 Material, ensuring reliable performance in electromagnetic interference suppression.
The TDK ZCAT2132-1130 complies with RoHS and REACH standards for environmental safety.
The self-holding mechanism in this model prevents slippage on cables, ensuring secure fitting during use.
This ferrite sleeve is suitable for use in personal computers, monitors, hard disk drives, digital telephones, audio devices, and other office machinery.
The TDK ZCAT2132-1130 features a snap lock design that enables secure fitting and prevents accidental openings during installation.
The TDK ZCAT2132-1130 effectively absorbs high-frequency electromagnetic interference, making it ideal for reducing common mode EMC without affecting signal quality.
Yes, the openable design of this ferrite sleeve allows for easy installation on pre-installed cables or those with connectors.
The TDK ZCAT2132-1130 is manufactured in India.
This model has a single aperture designed for cable fitting.
