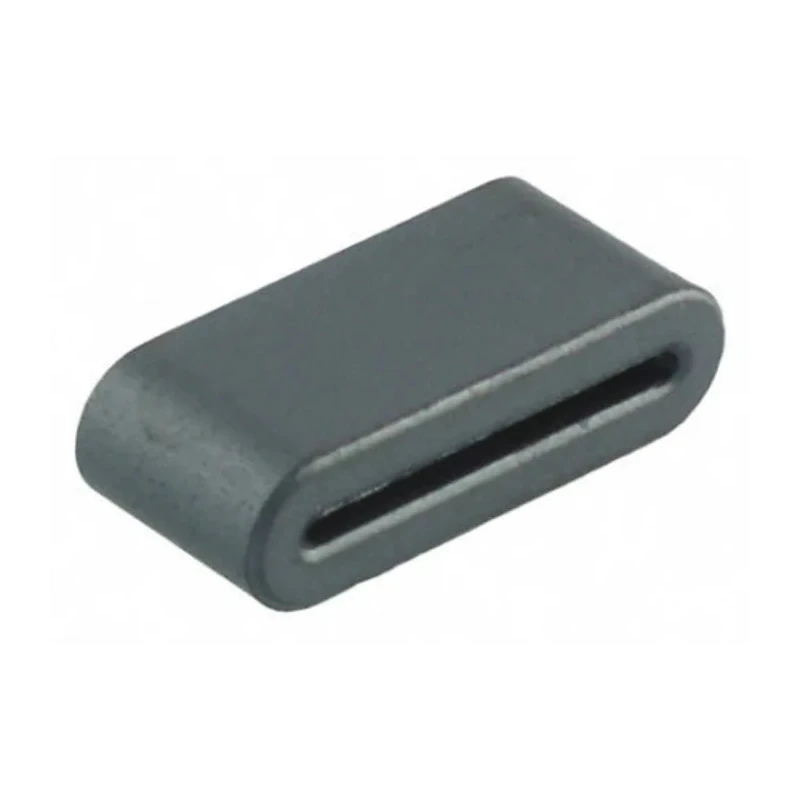

Wurth Elektronik Flat Cable Ferrite 3 W 800 Material, Fixed Type, 10 Max Wires, 14 mm Internal Width, 1 mm Height 7427221
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Material | 3 W 800 (Ferrite) |
| Model | 7427221 |
| Sub Type | Fixed |
| Internal Width | 14mm |
| Internal Height | 1mm |
| External Width | 18mm |
| External Depth | 8mm |
| External Height | 5mm |
| Standards/Approvals | RoHS |
| Impedance at 100 MHz | 166Ω |
| Maximum Number of Wires | 10 |
Key Features
- Flat cable ferrite core designed for EMI suppression in digital devices.
- Accommodates ribbon cables with up to 10 wires for versatile installations.
- Constructed from high-performance 3 W 800 ferrite material for effective interference reduction.
- Fixed mounting type ensures secure positioning and reliable operation.
- Internal width of 14 mm and height of 1 mm matches standard ribbon cable sizes.
- Provides an impedance of 166Ω at 100 MHz to minimize electromagnetic noise.
- External dimensions are 18 mm width, 8 mm depth, and 5 mm height for compact installation.
- RoHS compliant and suitable for professional, industrial, and laboratory electronics.
Product Description
Wurth Elektronik 7427221 Flat Cable Ferrite is a specialized component designed to mitigate electromagnetic interference (EMI) in ribbon cables used within digital devices and electronic controllers. The product features a fixed design, enabling secure attachment to flat cables without risk of displacement during operation. With a maximum capacity for 10 wires, it is ideally suited for multi-conductor setups commonly found in industrial and laboratory instrumentation.
This ferrite sleeve is fabricated from the high-performance 3 W 800 ferrite material, recognized for its superior EMI suppression characteristics. The internal dimensions, consisting of a 14 mm width and a 1 mm height, are tailored to accommodate standard ribbon cables, ensuring a precise fit. The ferrite core delivers an impedance of 166Ω at 100 MHz, effectively dampening high-frequency noise and enhancing the signal quality transmitted along the cable.
Externally, the ferrite features a compact footprint with dimensions of 18 mm in width, 8 mm in depth, and 5 mm in height. Its robust design ensures compatibility with heat shrink sleeving or adhesive mounting, offering flexibility in installation methods. The core is not openable, providing additional mechanical stability and preventing accidental disassembly in demanding environments.
Applications include EMI filtering in digital devices, display controllers, laboratory instrumentation, and industrial electronics. The ferrite sleeve is RoHS compliant, making it suitable for installations where environmental regulations are observed. Its operating temperature range from -25°C to +125°C supports use in diverse operating conditions.
Whether in manufacturing equipment, laboratory test setups, or commercial electronics, Wurth Elektronik’s Flat Cable Ferrite delivers consistent EMI attenuation and reliable performance. When used as part of a professional electronics integration, it contributes to improved system stability and minimized signal degradation.
Explore the full range of Wurth Elektronik EMI filtering solutions in the Ferrite Sleeve category for specialized applications in electronics, industrial automation, and laboratory measurement systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite sleeve provides an impedance of 166Ω at 100 MHz, which helps to minimize electromagnetic noise.
It can accommodate up to 10 wires, making it suitable for multi-conductor setups.
The internal dimensions are 14 mm in width and 1 mm in height, designed to fit standard ribbon cables.
The external dimensions are 18 mm in width, 8 mm in depth, and 5 mm in height.
It is constructed from high-performance 3 W 800 ferrite material, which is effective for EMI suppression.
Yes, it is RoHS compliant, making it suitable for installations that adhere to environmental regulations.
It features a fixed mounting type, ensuring secure positioning during operation.
The operating temperature range is from -25°C to +125°C, allowing for use in diverse conditions.
It is suitable for EMI filtering in digital devices, display controllers, laboratory instrumentation, and industrial electronics.
Yes, its robust design allows compatibility with heat shrink sleeving or adhesive mounting for installation flexibility.
The flat cable ferrite is manufactured in Taiwan.
