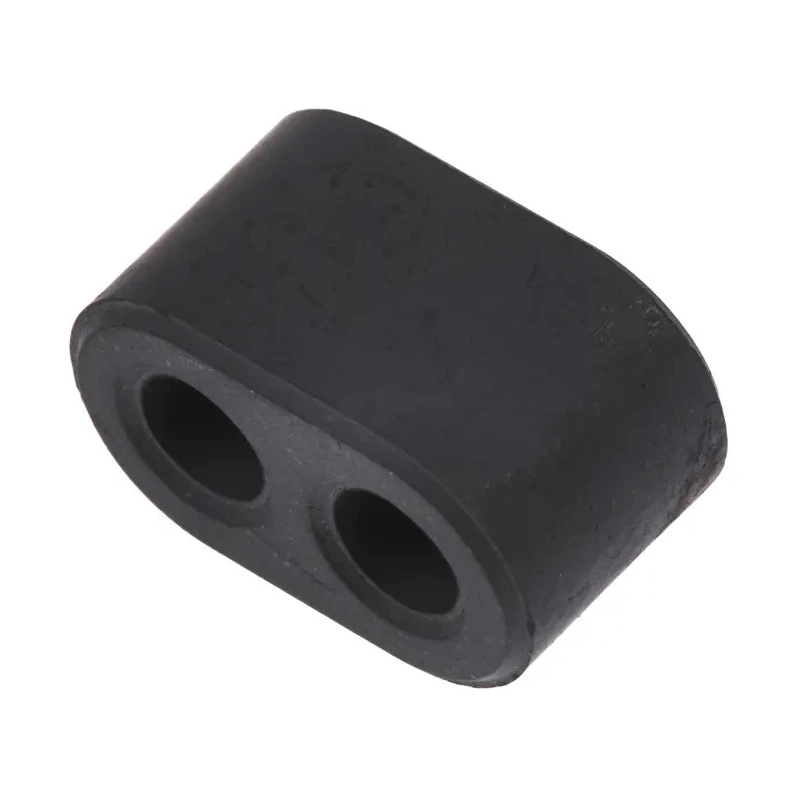

TDK Diameter 3.4 mm Ferrite Sleeve Multi Aperture Core for Broadband Transformer B62152A0004X001

TDK B62152A0004X001 ferrite sleeve is a precision multi-aperture core engineered specifically for broadband transformer applications. Made from high-quality K1 material, it supports frequencies up to 250 MHz, making it suitable for use in antenna feeders, balancing mixers, and input circuits of VHF and TV receivers.

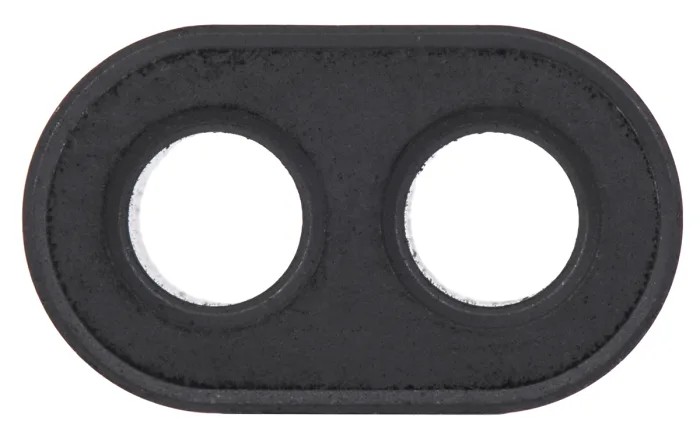

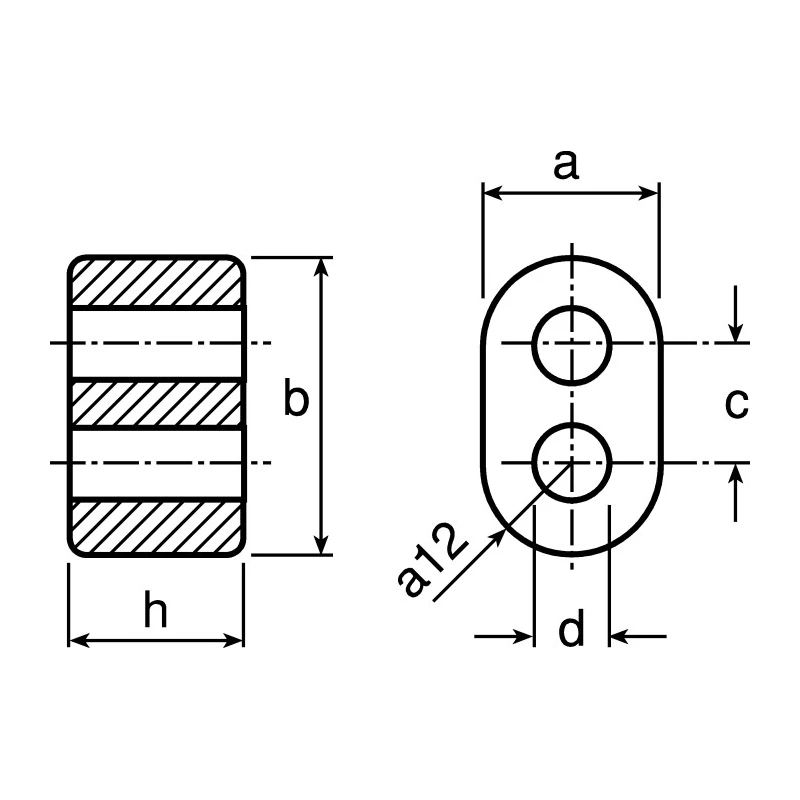

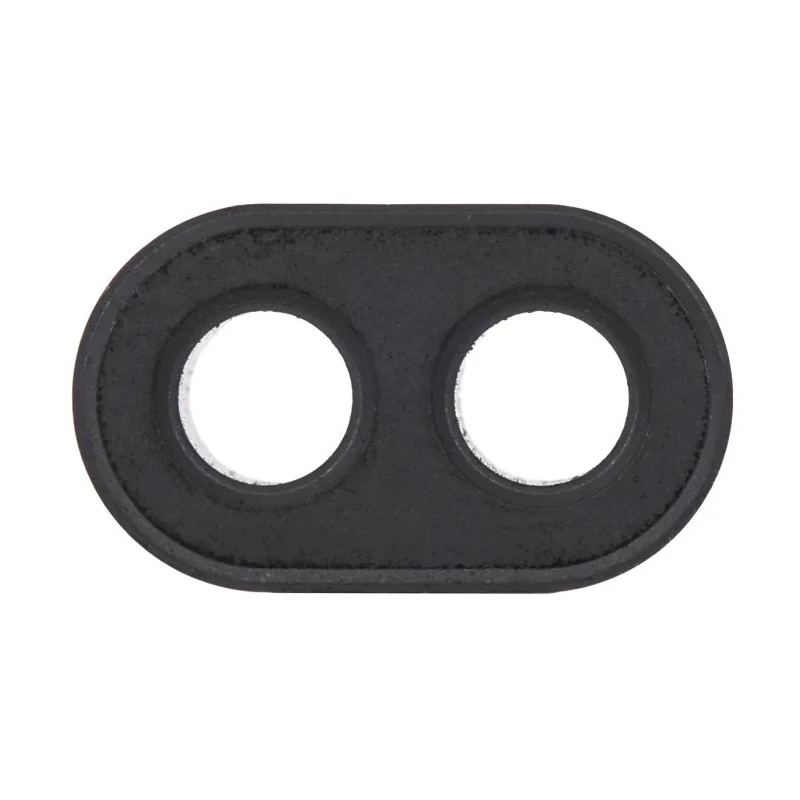

The sleeve has a compact design featuring a diameter of 3.4 mm and dual apertures, providing impedance values of 156Ω at 25 MHz and 260Ω at 100 MHz. Its external dimensions are 8.5 mm in depth, 8.3 mm in height, and 14.5 mm in width, facilitating easy installation in electronic devices.

This ferrite sleeve is non-gapped and constructed without a key, enhancing its suitability for matching transformers and pulse applications. It complies with RoHS standards, ensuring safe use in industrial and commercial electronics.

Ideal for EMI filtering and protection in electronic circuits, the TDK ferrite sleeve is widely used in industrial, laboratory, and manufacturing setups where signal integrity is crucial. Its reliable material and design provide stability and performance in high-frequency operations.

Features a diameter of 3.4 mm with dual apertures for enhanced performance. Constructed from K1 material suitable for frequencies up to 250 MHz. Provides an impedance of 156Ω at 25 MHz and 260Ω at 100 MHz, ensuring effective EMI filtering.

Compact external dimensions with depth 8.5 mm, height 8.3 mm, and width 14.5 mm for easy integration. Non-gapped construction optimized for matching transformers and balancing mixers. RoHS compliant, ensuring environmentally safe material usage.

Ideal for use in antenna feeders and input circuits of VHF and TV receivers. Browse the Ferrite Sleeve category on EnvMart for more quality electronic components from top brands like TDK.
