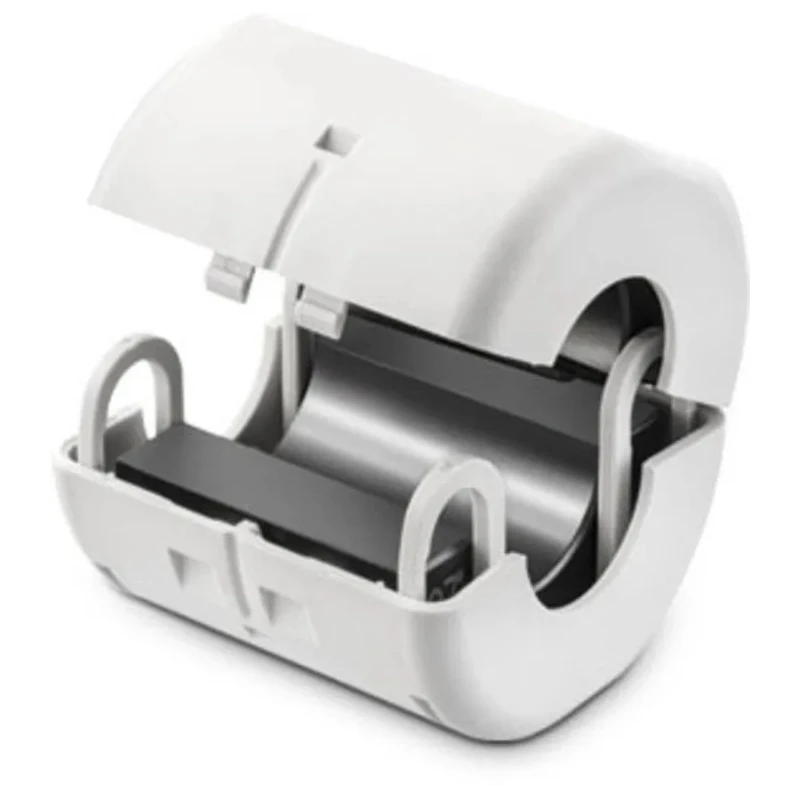

Wurth Elektronik Openable Snap Ferrite Sleeve STAR-TEC Series, Diameter 12.5 mm, 35Ω @25MHz, 140Ω @100MHz, Aperture 74272222
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Wurth Elektronik |
| Material | Manganese Zinc |
| Model | 74272222 |
| Series | STAR-TEC |
| Aperture diameter | 12.5mm |
| Sub Type | Snap Ferrite |
| External Width | 33.5mm |
| External Depth | 41.6mm |
| External Height | 28.4mm |
| Standards/Approvals | RoHS, REACH |
| Impedance at 100 MHz | 140Ω |
| Impedance at 25 MHz | 35Ω |
| Number of Apertures | 1 |
| Wurth Elektronik Openable, Diameter 12.5 mm Ferrite Sleeve, Apertures | 1 Key 41.6 mm 28.4 mm 33.5 mm |
Key Features
- Constructed from manganese zinc ferrite for broad frequency attenuation.
- Impedance of 35Ω at 25 MHz ensures effective low-frequency noise reduction.
- 140Ω impedance at 100 MHz provides high-frequency interference suppression.
- Single aperture design facilitates easy cable installation and retrofitting.
- Snap-open construction allows quick removal and maintenance without cable damage.
- Non-gapped magnetic path maintains continuous EMI control performance.
- Compact rectangular form factor suitable for retrofit and assembly applications.
- RoHS and REACH compliant for environmental safety.
Product Description
Wurth Elektronik 74272222 is an openable snap ferrite sleeve from the STAR-TEC series, featuring a 12.5 mm aperture diameter and designed for efficient EMI noise suppression in electronic and electrical assemblies.
This ferrite sleeve is manufactured from high-quality manganese zinc ferrite material, which provides broadband permeability for effective attenuation across low and high frequencies. The impedance rating is 35Ω at 25 MHz for low-frequency noise and 140Ω at 100 MHz for high-frequency interference.
The single-aperture design enables easy cable routing and installation, making it well suited for retrofit applications in existing cable harnesses. The openable, snap construction allows quick removal and repositioning without the need to disconnect cables, simplifying maintenance and upgrades.
The sleeve features a non-gapped magnetic circuit that ensures a continuous magnetic path, enhancing EMI filtering performance. Its compact rectangular form factor fits well within enclosures and assemblies requiring space-efficient EMI solutions.
The product meets RoHS and REACH standards, ensuring compliance with environmental and chemical safety regulations. Manufactured in Germany, this ferrite sleeve guarantees reliable quality and consistency.
Typical applications include suppression of interference on signal and power leads and acting as a removable noise filter for compliance-driven designs in industrial, electronic, telecommunications, and automotive sectors.
Constructed from manganese zinc ferrite for broadband EMI attenuation. 35Ω impedance at 25 MHz for effective low-frequency suppression. 140Ω impedance at 100 MHz for high-frequency EMI reduction. Single aperture facilitates straightforward cable installation.
Snap-open design enables easy retrofit and maintenance. Non-gapped design maintains continuous magnetic path. Compact rectangular form factor for space-constrained applications. Complies with RoHS and REACH standards. Manufactured in Germany with stringent quality control.
Suitable for use on signal and power cables in various industries. Explore more products like this in the Ferrite Sleeves category on EnvMart to find the perfect EMI filtering solutions for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this ferrite sleeve is 35Ω at 25 MHz, providing effective low-frequency noise reduction, and 140Ω at 100 MHz for high-frequency interference suppression.
The aperture diameter of this model is 12.5 mm, allowing for straightforward cable installation.
It is constructed from manganese zinc ferrite, which provides broad frequency attenuation for EMI suppression.
The external dimensions are 33.5 mm in width, 41.6 mm in depth, and 28.4 mm in height.
The snap-open design allows for quick removal and repositioning of the sleeve without disconnecting cables, simplifying maintenance and upgrades.
Yes, it complies with RoHS and REACH standards, ensuring environmental and chemical safety.
This model is suitable for use on signal and power cables across various industries, including industrial, electronic, telecommunications, and automotive sectors.
The non-gapped magnetic path maintains a continuous magnetic circuit, enhancing EMI filtering performance.
This ferrite sleeve belongs to the STAR-TEC series by Wurth Elektronik.
This model features a single aperture design, facilitating easy cable routing and installation.
It is manufactured in Germany, ensuring reliable quality and consistency.
Typical applications include suppression of interference on signal and power leads, acting as a removable noise filter for compliance-driven designs.
