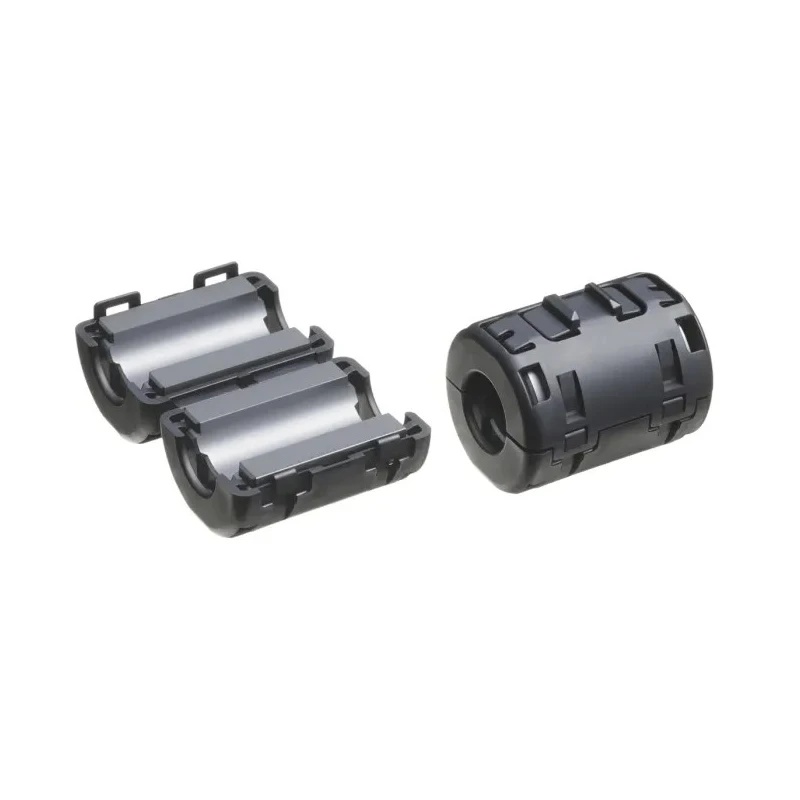

TDK Openable Ferrite Sleeve Diameter 12 mm, Aperture 34.6 x 27 x 27.5 mm, Automotive ECUs ZCAT12V-BK
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | Ferrite |
| Model | ZCAT12V-BK |
| Series | ZCAT |
| Aperture diameter | 12mm |
| Sub Type | Cable Core |
| External Width | 27.5mm |
| External Depth | 34.6mm |
| External Height | 27mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 100 MHz | 72Ω |
| Impedance at 25 MHz | 42Ω |
| Number of Apertures | 1 |
| TDK Openable, Diameter 12 mm Ferrite Sleeve, Apertures | 1 34.6 mm 27 mm 27.5 mm, For Automotive ECUs |
Key Features
- The ferrite sleeve features a snap fixing design for easy installation on cables.
- Constructed with ferrite material to provide high frequency electromagnetic interference (EMI) absorption.
- Impedance values are 42Ω at 25 MHz and 72Ω at 100 MHz for effective EMC countermeasures.
- Self-holding mechanism prevents cable slippage during operation.
- Suitable for automotive electronic control unit applications and general high-frequency cable filtering.
- Not gapped and features a durable plastic outer housing to protect the ferrite core.
- Openable design allows installation on pre-fitted cables and connectors without disassembly.
- Compact external dimensions of 34.6 mm depth, 27 mm height, and 27.5 mm width enable versatile use.
Product Description
TDK ZCAT12V-BK openable ferrite sleeve is specifically engineered for automotive ECU applications where reliable high-frequency noise suppression is essential. The device features a 12 mm aperture diameter with exact external dimensions of 34.6 mm depth, 27 mm height, and 27.5 mm width. It utilizes a high-quality ferrite core inside a robust plastic housing to deliver excellent attenuation of common mode electromagnetic interference without degrading signal quality.
The ZCAT series ferrite sleeves include a convenient snap-fix clamp design ensuring easy installation on cable cores. The self-holding mechanism prevents cable movement ensuring consistent performance during vehicle operation. Providing an impedance of 42 ohms at 25 MHz and 72 ohms at 100 MHz, this ferrite sleeve efficiently filters EMI originating from digital signals or power lines in automotive environments.
Its openable construction allows fitting around existing wiring harnesses without the need to disconnect cables or connectors. The protective plastic housing safeguards the ferrite halves from damage and ensures durability over extended usage. This makes it ideal for automotive, office machines, industrial controllers, and medical engineering equipment where EMI filtering is crucial.
The ferrite sleeve is made from ferrite material for high absorption efficiency. Snap locking mechanism for quick and secure cable mounting. Impedance ratings of 42Ω at 25 MHz and 72Ω at 100 MHz. Openable design compatible with pre-installed connectors and cables.
Compact dimensions allow flexible installation in tight spaces. Protective outer housing reduces ferrite core breakage risk. Designed to reduce EMI in automotive and industrial applications.
Choose the TDK ZCAT12V-BK ferrite sleeve for efficient EMI suppression in demanding automotive ECU and cable applications. Explore additional Ferrite Sleeves and EMI filter options in the Electronics Components category at EnvMart for comprehensive noise control solutions.
