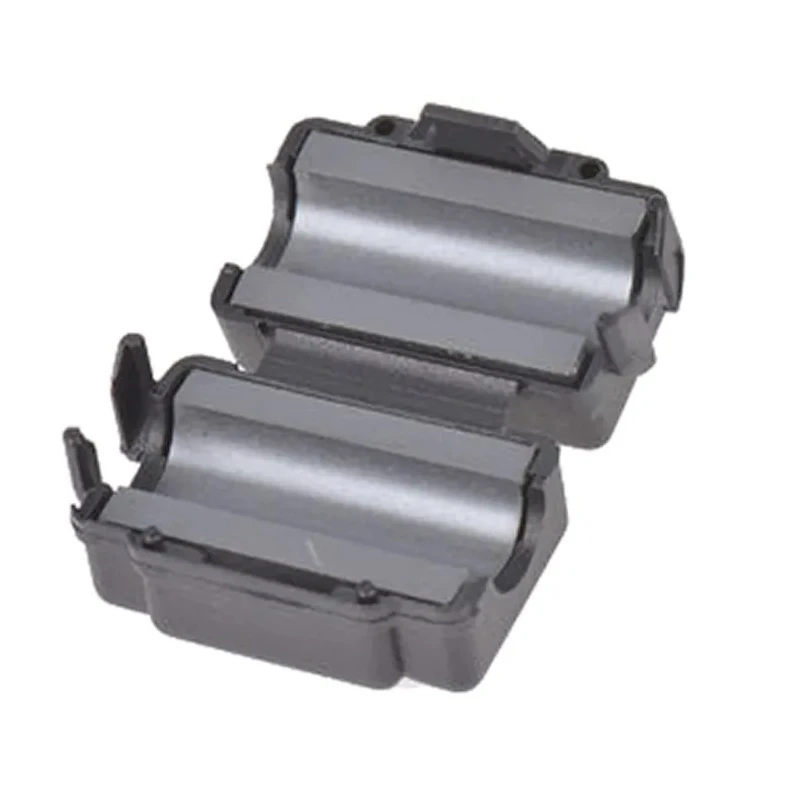

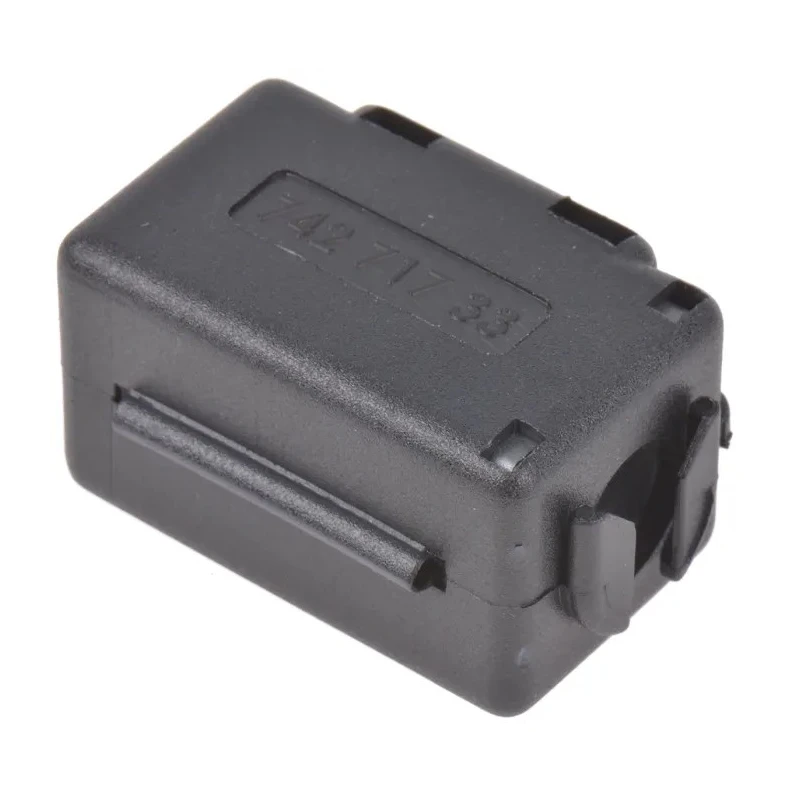

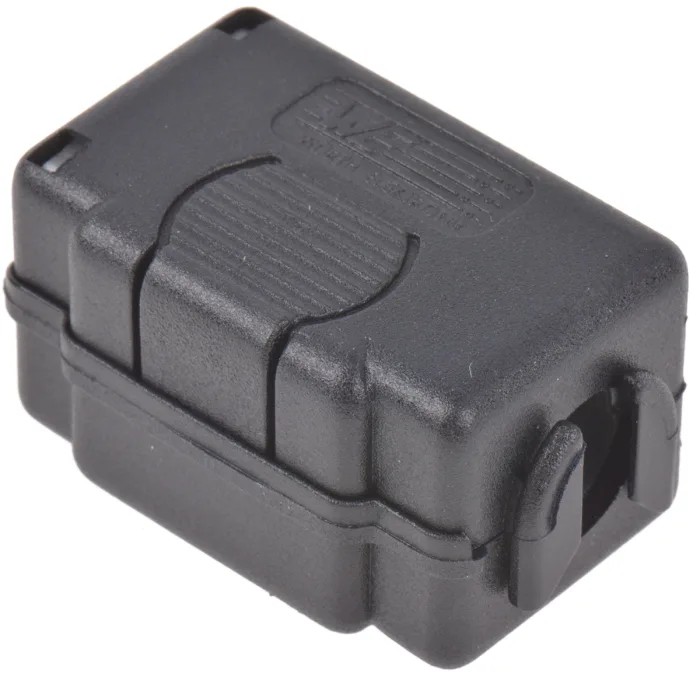

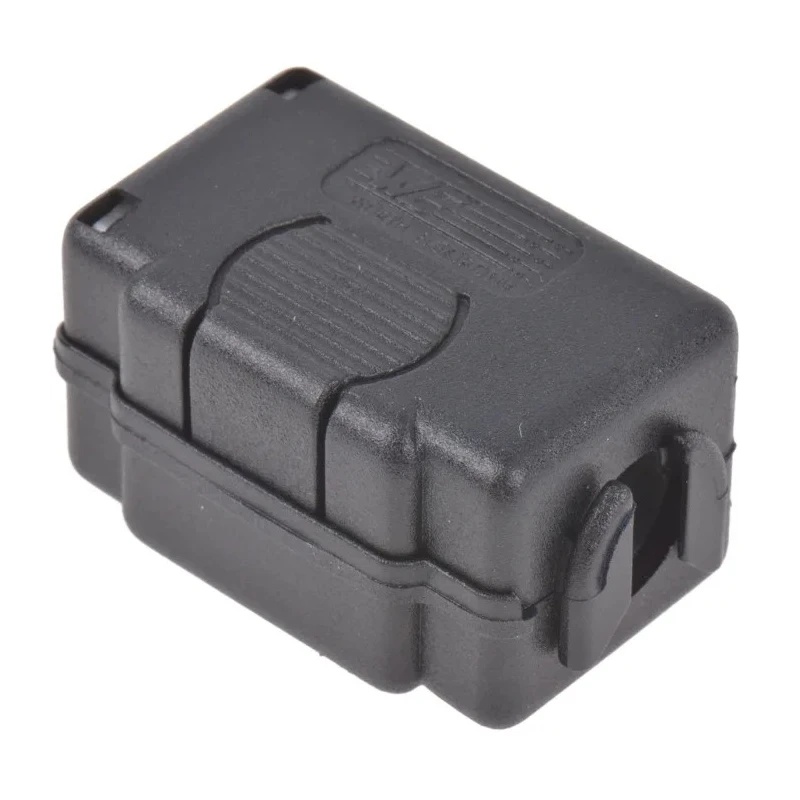

Wurth Elektronik Openable Diameter 8 mm Snap Ferrite Sleeve STAR-FIX Series For Safety Relevant Applications 74271733S

Wurth Elektronik 74271733S is an openable snap ferrite sleeve featuring an 8 mm aperture diameter designed primarily for safety relevant and general EMI suppression applications. It incorporates NiZn core material encased in a UL94-V0 rated plastic casing which ensures high durability and flame retardance.

This ferrite sleeve utilizes patented STAR-FIX technology providing a flexible cable fixing system that allows for easy and reliable assembly on a wide range of cable diameters. The snap lock design ensures that once fitted, the sleeve remains securely closed and cannot open accidentally, offering dependable EMI noise attenuation on data and power cables.

Technical impedance values of 125Ω at 25 MHz and 220Ω at 100 MHz support effective reduction of electromagnetic interference, making this product ideal for industrial controllers, medical equipment, office machines, and data transmission lines.

The external dimensions - 21.7 mm depth, 35.1 mm width, and 18.2 mm height - provide a robust housing that protects the ferrite core from mechanical damage and assures simple installation even on cables already equipped with connectors.

These split ferrite cores support cable fixation via glue or cable ties as optional methods. The keyed design adds to application safety but note that the special safety key must be purchased separately to utilize this feature securely.

Wurth Elektronik 74271733S complies with REACH and RoHS standards, ensuring adherence to environmental and health safety requirements.

This snap ferrite sleeve is well suited for noise suppression in EMI-sensitive environments, including laboratory equipment, industrial automation, medical devices, and office electronics.

Constructed with NiZn core material and UL94-V0 rated casing for durability and flame resistance. Patented STAR-FIX snap lock technology enables flexible and secure cable fixing. Impedance of 125Ω at 25 MHz and 220Ω at 100 MHz provides efficient EMI attenuation.

Dimensions of 21.7 mm depth, 35.1 mm width, and 18.2 mm height accommodate various cable diameters. Reusable design facilitates testing and measurement applications. Protective housing prevents core damage and simplifies installation.

Compliant with REACH and RoHS environmental regulations. Suitable for industrial, medical, office, and control system applications requiring EMI suppression. Safety key for secure locking sold separately. Explore more products in Ferrite Sleeves via EnvMart for enhanced EMI protection solutions.
