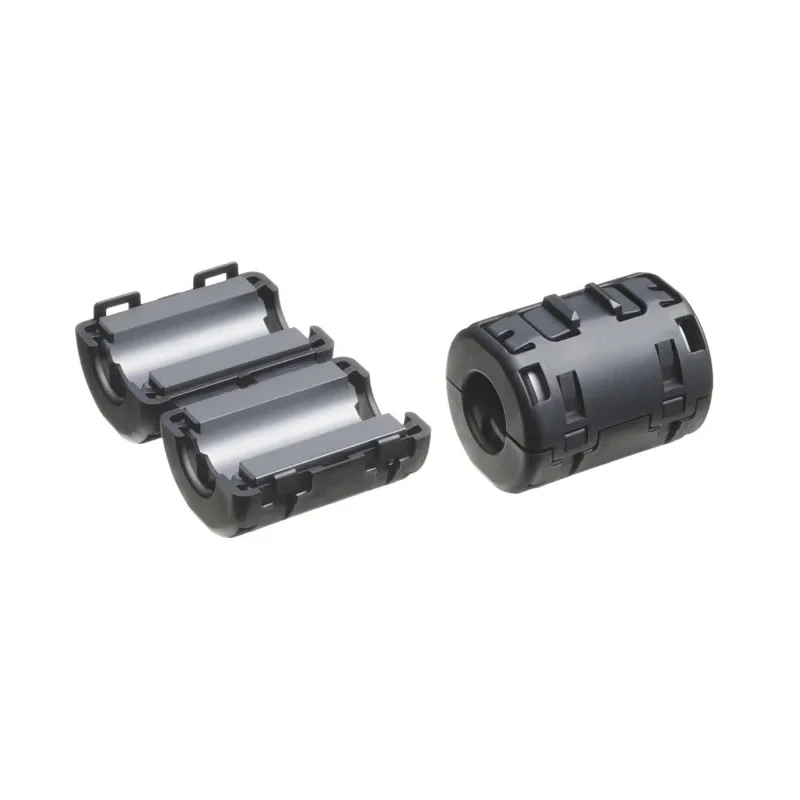

TDK Openable Ferrite Sleeve, Diameter 12 mm, Aperture 34.6 x 27 x 27.5 mm, Cable Core, Automotive ECU Application ZCAT12V-BK

TDK ZCAT12V-BK Openable Ferrite Sleeve is a cable core type EMI filter specially designed for automotive ECU applications. This Ferrite Sleeve features a 12 mm diameter aperture and is constructed with a ferrite core housed in a robust plastic casing that allows for easy assembly and prevents slippage on cables.

The ferrite core provides excellent absorption of high-frequency electromagnetic interference, with impedance values of 42Ω at 25 MHz and 72Ω at 100 MHz. Its design effectively counters common mode electromagnetic compatibility without adversely affecting signal quality. The single aperture configuration and gapped-free design enhance performance during large signal surges.

With external dimensions of 34.6 mm depth, 27 mm height, and 27.5 mm width, this sleeve fits a variety of cable sizes and applications. The snap lock mechanism protects the ferrite core halves from damage and ensures secure attachment, preventing accidental opening once locked.

TDK’s ZCAT series is suited to a wide range of electronic devices including personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, and facsimiles. Particularly, it is optimized for automotive electronic control units where effective EMI filtering is critical.

The product meets REACH and RoHS standards, assuring compliance with environmental and safety requirements. Installation flexibility allows fixing with glue or cable ties where necessary.

The sleeve features a 12 mm aperture diameter for cable insertion. Ferrite material ensures effective electromagnetic interference suppression. Openable design with snap lock for easy installation and prevention of slippage.

Impedance of 42Ω at 25 MHz and 72Ω at 100 MHz for high frequency EMC absorption. External dimensions: 34.6 mm depth, 27 mm height, and 27.5 mm width. Single aperture and gapped-free for optimal EMC performance. Compliant with REACH and RoHS standards.

Applications include automotive ECUs, personal computing devices, and audio equipment. Explore EnvMart’s comprehensive selection of automotive and electronic components to find the ideal EMI filters and protection devices tailored to your industrial needs.
