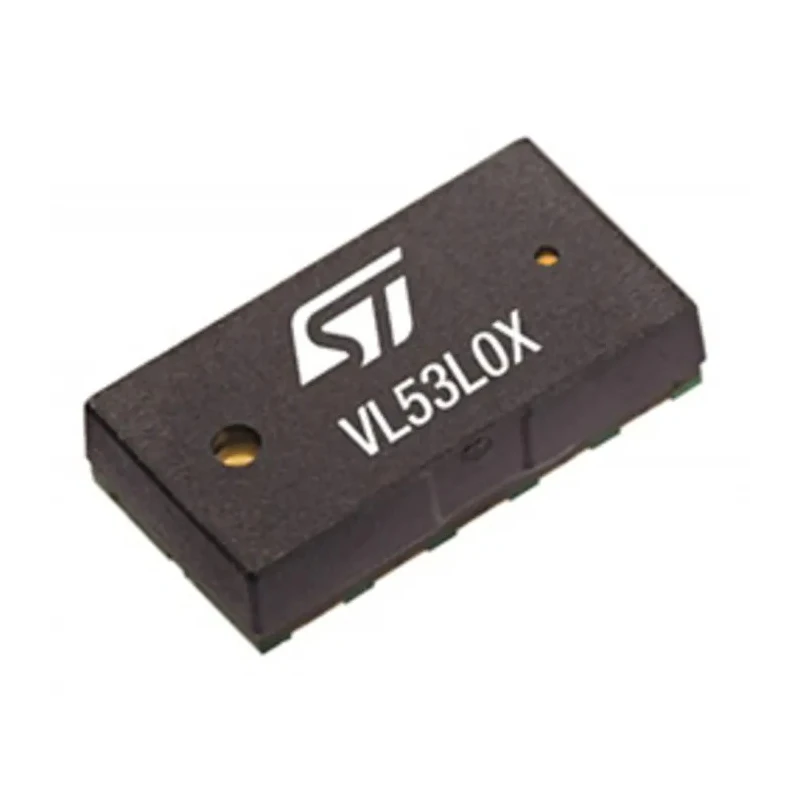

STMicroelectronics Optical Proximity Detector 2 m 2.6 V to 3.5 V 12-Pin LGA Package VL53L0X

STMicroelectronics VL53L0X Optical Proximity Detector VL53L0X is a fully integrated miniature module designed for precise distance measurement and proximity sensing applications. Featuring a 940 nm laser VCSEL, this sensor provides fast and accurate ranging measurements with a maximum sensing range of 2 meters, operating efficiently within a 2.6 V to 3.5 V voltage supply range. Its compact 12-pin LGA surface mount package measures 4.4 mm length, 2.4 mm width, and 1.0 mm height.

The sensor incorporates an advanced embedded microcontroller and driver circuitry that controls the laser emitter and processes range data. It includes a digital output for interfacing, running up to a maximum switching frequency of 400 kHz. The device also features embedded optical cross-talk compensation, enabling the use of cover glass while maintaining accurate performance. With a wide operating temperature range of -20°C to 70°C, it is suitable for various industrial, electronics manufacturing, and automation applications.

Integration is simplified by using a single power supply and standard I2C communication for device control and data transmission. Additional features include reset and interrupt GPIO pins and programmable I2C addresses for flexible system integration. The module is eye safe, requiring no additional optics, making it an efficient, compact solution for proximity detection and ranging.

Maximum sensing distance of 2 meters with high accuracy. Digital output with a maximum switching frequency of 400 kHz. Compact 12-pin LGA package for surface mounting. 940 nm VCSEL laser emitter with embedded driver and microcontroller.

Single power supply operation from 2.6 V to 3.5 V. Advanced optical cross-talk compensation for reliable measurements through cover glass. Operating temperature range from -20°C to 70°C for industrial environments. I2C interface simplifies device control and data reading.

Eye safe with no need for extra optics.

This Proximity Sensor IC is ideal for use in electronics manufacturing, robotics, automotive safety systems, industrial automation, and consumer electronics requiring precise and fast distance measurement. Its compact size and straightforward integration capabilities make it an excellent choice for modern embedded systems design.
