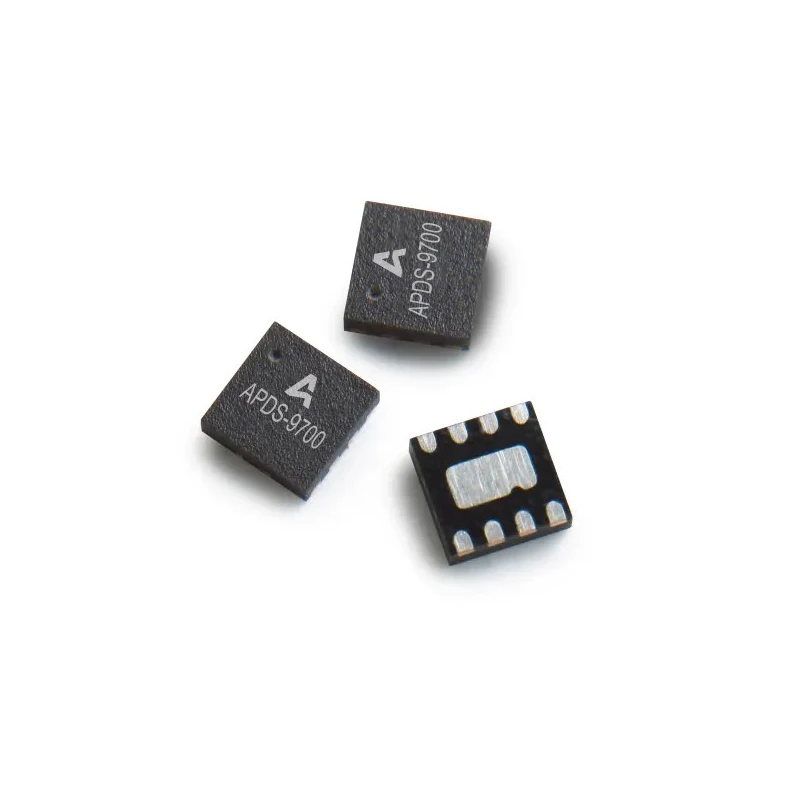

Broadcom Proximity Sensor IC 200 mm 2.4 V 3.6 V 8 QFN APDS-9700-020

Broadcom APDS-9700-020 Proximity Sensor IC is an advanced signal conditioning integrated circuit optimized for proximity and object detection applications. Operating between 2.4 V and 3.6 V supply voltages, this device supports both analogue and digital outputs, enabling flexible integration into diverse electronic systems.

The sensor IC features a compact 8-pin QFN package measuring just 2 mm in length and width, with a height of only 550 μm, making it suitable for compact and space-sensitive industrial, consumer electronics, and automotive applications. It offers a sensing distance of up to 200 mm with a maximum switching frequency of 3 kHz, allowing fast and accurate detection responsiveness.

Engineered for harsh environmental conditions, the device operates reliably across a wide temperature range from -40°C to 105°C. A built-in LED driver circuit, sunlight cancellation, and LED stuck-high protection circuitry enhance the sensor's robustness, providing immunity to ambient light interference and reducing false triggering.

The ultra-low power consumption and complete shutdown mode make it ideal for battery-powered portable devices and energy-conscious designs. The through hole mounting type ensures secure installation on printed circuit boards with mechanical durability.

This proximity sensor IC is designed as a single-chip solution to simplify system integration and improve optical sensor performance, enabling efficient proximity, gesture, and object detection functionalities in applications such as consumer electronics, industrial automation, and automotive safety systems.

Provides both analogue and digital output signals for versatile interfacing. Supports maximum switching frequency of 3 kHz for responsive detection. Operates reliably between -40°C and 105°C for harsh environments. Features ultra-low power consumption with a complete shutdown mode to conserve energy.

Includes built-in LED driver circuit with sunlight cancellation for ambient noise immunity. Compact size measures 2 mm × 2 mm with a height of 550 μm for space-constrained designs. Through hole mount type ensures robust PCB fitting and mechanical stability.

Pin count of 8 pins in a QFN package for efficient board layout. Designed as a single chip solution to enhance optical sensor performance in proximity detection applications.

Broadcom offers this precision sensor IC as a new product suitable for electronics manufacturers requiring rugged and efficient proximity sensing components. Explore more Proximity Sensor ICs and related electronic components on EnvMart.
