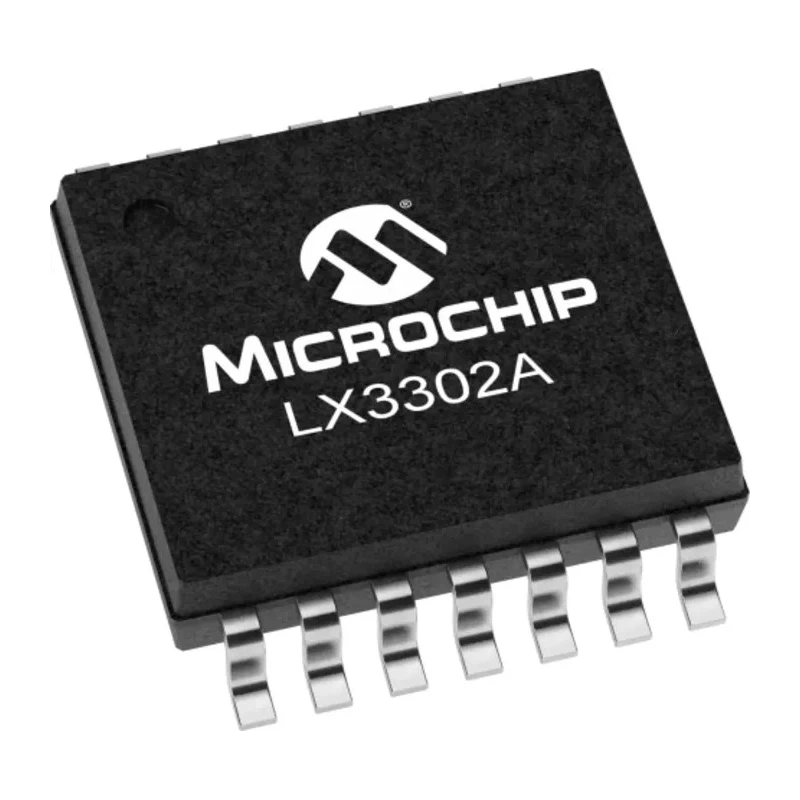

Microchip High-Precision Programmable Inductive Proximity Sensor IC LX3302 4.5-5.6 V TSSOP Package LX3302
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | LX3302 |
| Mount Type | Surface |
| Series | LX3302 |
| Maximum Operating Temperature | 150°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Maximum Output Current | 8mA |
| Maximum Output Voltage | 300mV |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.6V |
| Minimum Supply Voltage | 4.5V |
Key Features
- Operates within a wide temperature range from -40°C to 150°C for reliability.
- Supports maximum output current of 8 mA and maximum output voltage of 300 mV.
- Certified to automotive grade AEC-Q100 standards ensuring high quality performance.
- Features Surface Mount Type suitable for compact PCB integration.
- Includes SENT and PSI5 output interfaces for advanced communication.
- Designed for managing inductive position sensors using PCB traces.
- Immune to stray magnetic fields eliminating the need for magnets in sensing applications.
- ISO26262 ASIL B compliant for functional safety in automotive applications.
Product Description
Microchip LX3302 is a highly integrated, programmable proximity sensor integrated circuit designed specifically for inductive position sensing applications. It operates reliably between voltage levels of 4.5 V minimum and 5.6 V maximum, housed in a compact 14-pin Thin Shrink Small Outline Package (TSSOP) suitable for surface mounting on PCBs.
This IC is capable of delivering a maximum output current of 8 mA and maximum output voltage of 300 mV. It operates over an extended temperature range from -40°C up to 150°C, meeting demanding environmental conditions commonly encountered in automotive and industrial sectors.
The LX3302 is certified to automotive AEC-Q100 grade 0 standards and supports ISO26262 ASIL B functional safety requirements, making it highly suitable for automotive safety applications. It features SENT and PSI5 output interfaces, enabling seamless integration with modern automotive sensor communication protocols.
Unlike magnetic field-based sensors, this IC interfaces with inductive position sensors that utilize PCB traces for accurate metal target detection. This design grants superior immunity to stray magnetic fields and eliminates the necessity of magnets, simplifying sensor architecture and improving reliability.
Operates in harsh industrial and automotive environments spanning -40°C to 150°C. Programmable data conversion IC with advanced output interface standards. Facilitates precise inductive position sensing without magnetic interference.
Compliant with automotive safety and quality standards including AEC-Q100 and ISO26262. Compact 14-pin TSSOP surface mount package for space-efficient PCB applications. Delivers reliable maximum output current of 8 mA with low output voltage of 300 mV.
Suited for electronic component, semiconductor, and automotive sensor applications.
This product is ideal for industrial control systems, automotive electronics, and high-performance sensor integrations requiring robust, noise-immune positioning detection. The LX3302 aids in enhancing sensor accuracy and simplifies sensor system designs by removing magnet requirements.
Explore similar Proximity Sensor ICs and related semiconductor components at EnvMart for advanced electronic and industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LX3302 operates reliably within a temperature range from -40°C to 150°C.
It can deliver a maximum output current of 8 mA.
This model is housed in a compact 14-pin Thin Shrink Small Outline Package (TSSOP) suitable for surface mounting.
It is certified to automotive grade AEC-Q100 standards and meets ISO26262 ASIL B functional safety requirements.
This IC features SENT and PSI5 output interfaces for advanced communication in automotive applications.
It operates with a minimum supply voltage of 4.5 V and a maximum supply voltage of 5.6 V.
It interfaces with inductive position sensors that utilize PCB traces, eliminating the need for magnets and providing immunity to stray magnetic fields.
The LX3302 is packaged in a 14-pin TSSOP format, which is compact for efficient PCB integration.
The maximum output voltage is 300 mV.
It is designed for use in industrial control systems, automotive electronics, and high-performance sensor integrations.
This model is designed for surface mounting on printed circuit boards (PCBs).
The LX3302 has a pin count of 14.
