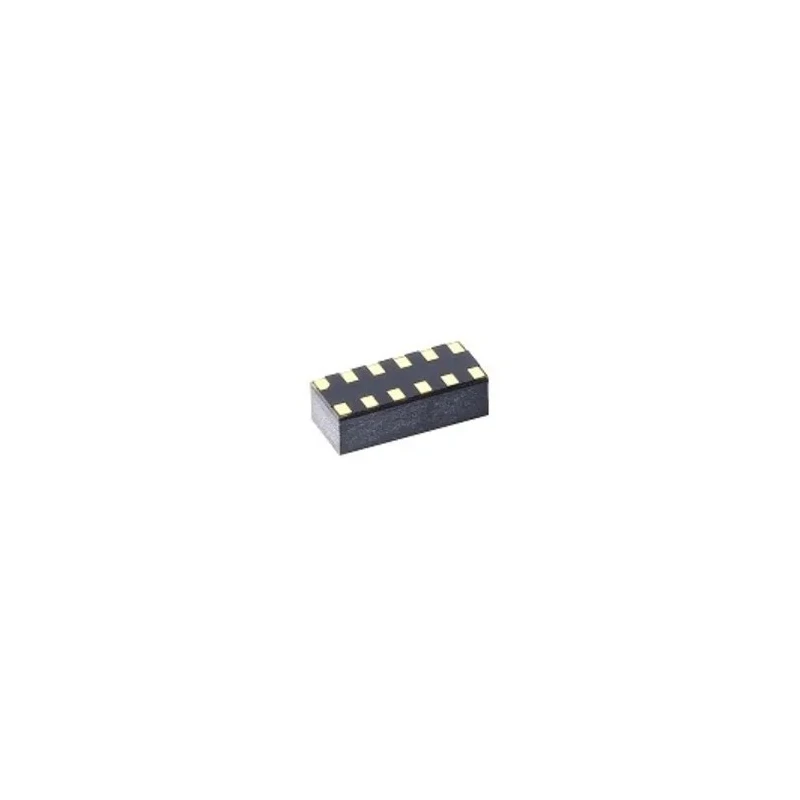

ams OSRAM Proximity Sensor IC Time-of-Flight dToF 5 m Range 2.7-3.3 V 12-Pin OLGA Package TMF8821

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Proximity Sensor IC Time-of-Flight dToF 5 m Range 2.7-3.3 V 12-Pin OLGA Package TMF8821

Name: ams OSRAM Proximity Sensor IC Time-of-Flight dToF 5 m Range 2.7-3.3 V 12-Pin OLGA Package TMF8821
Brand: ams OSRAM
SKU: 299042
Price: 20.22 USD
Availability: InStock



Category Proximity Sensor IC Brand ams OSRAM Condition New

Specifications

Country of Origin	Taiwan
Brand	ams OSRAM
Model	TMF8821
Mount Type	Surface
Series	TMF8821
Sensing Distance	5m
Maximum Operating Temperature	85°C
Package Type	OLGA
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	80MHz
Maximum Output Current	2.8mA
Maximum Output Voltage	600mV
Pin Count	12
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	2.7V

Key Features

The sensor operates at a supply voltage range of 2.7V to 3.3V, suitable for low voltage applications.
It supports surface mounting with a 12-pin configuration for easy PCB integration.
The device offers a maximum switching frequency of 80 MHz for fast response.
Maximum output current is 2.8 mA with a maximum output voltage of 600 mV.
Operating temperature ranges from -40°C to 85°C, ensuring robustness in diverse environments.
Supports 4x4 configurable multi-zone output data with multi-object detection capability.
Integrated multi-lens array widens the field of view up to 63 degrees diagonal.
On-chip processing delivers distance information with confidence values through I2C interface.

Product Description

ams OSRAM TMF8821 is a Proximity Sensor IC designed with advanced direct time-of-flight (dToF) technology, incorporating SPAD, TDC, and histogram technology to achieve reliable distance sensing up to 5 meters. Packaged in a compact OLGA surface mount package with 12 pins, this sensor operates between 2.7 V and 3.3 V making it ideal for low-voltage industrial and commercial electronics applications.

The TMF8821 integrates a multi-lens array above the VCSEL laser diode, providing a dynamically adjustable wide field of view up to 63 degrees diagonal. Its on-chip processing capabilities output precise distance measurements and confidence values over a standard I2C interface. The device supports multi-zone configurations such as 3x3, 4x4, 3x6, and 8x8 for flexible sensing requirements and multi-object detection.

It is rated for maximum switching frequency of 80 MHz and a maximum output current of 2.8 mA with an output voltage of up to 600 mV. Suitable for operating temperatures ranging from -40°C to 85°C, this sensor is well suited for various applications in industrial automation, consumer electronics, robotics, and HVAC control systems.

This proximity sensor is manufactured in Taiwan and is not certified for automotive standards, focusing on high sensitivity and multi-zone detection features for general electronic applications. Its surface mount OLGA package eases incorporation into modern PCB designs.

The sensor provides direct ToF distance measurement using high sensitivity SPAD detectors. Configurable multi-zone sensing supports complex detection scenarios. Wide and adjustable field of view enhances detection flexibility.

Fast time-to-digital conversion enables quick response times. Compact and lightweight surface mount package simplifies assembly. Operates reliably over a wide temperature range suitable for industrial use. Explore more industrial sensor ICs and proximity sensors at EnvMart to find solutions tailored to your specific measurement and control needs.
