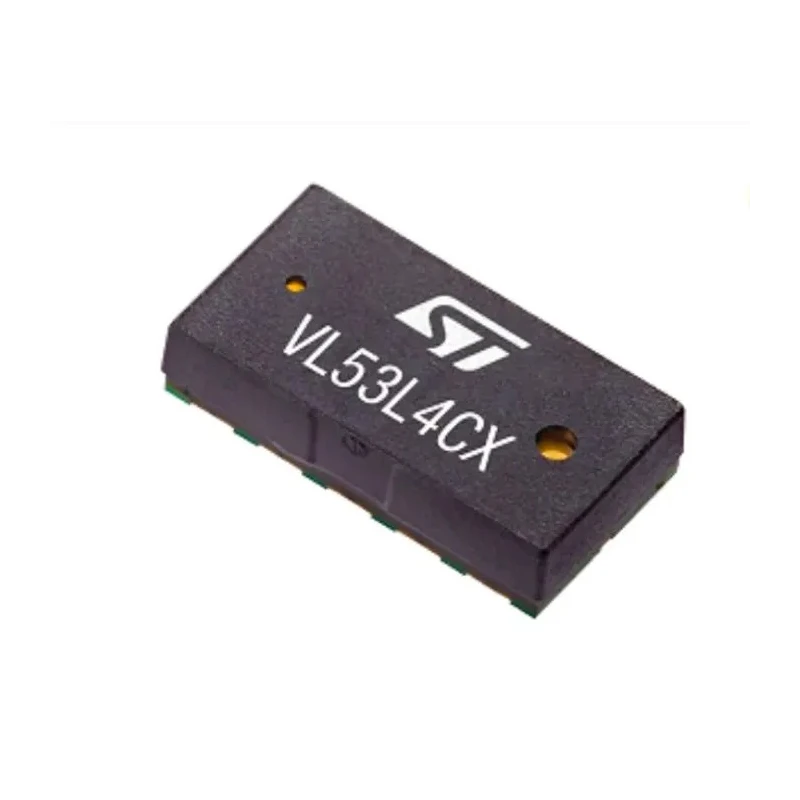

STMicroelectronics Proximity Sensor IC 6 m 2.6 V to 3.5 V Surface Mount 12-Pin LGA VL53L4CX

STMicroelectronics VL53L4CX is a proximity sensor IC designed to deliver highly accurate and reliable digital distance measurements extending up to 6 meters. Manufactured in a compact 12-pin LGA surface mount package with dimensions 4.4mm in length, 2.4mm in width, and 1.0mm in height, this sensor integrates advanced histogram technology enabling precise detection from 0 mm upwards.

The sensor employs a new generation laser emitter with an 18° field of view, which improves performance in ambient light conditions while providing multiobject detection with depth understanding. STMicroelectronics' patented algorithms ensure resistance to cover glass crosstalk beyond 80 cm and include dynamic compensation for smudges on targets closer than 80 cm.

This device operates within a supply voltage range of 2.6 V to 3.5 V and is suitable for surface mounting, making it ideal for integration in compact electronic designs. The maximum operating temperature is 85°C, while the minimum is -30°C, accommodating a wide range of industrial and commercial operating conditions. Though it does not meet automotive standards, the sensor's robustness and multiobject capability make it well suited for applications in robotics, industrial automation, consumer electronics, and other proximity detection scenarios.

Key features such as a 9μA maximum output current and a maximum output voltage of 400mV enable efficient power management and signal processing. The VL53L4CX Series offers designers a reliable Proximity Sensor IC solution with enhanced performance through live crosstalk correction and multi-target measurement capabilities.

Utilizes histogram-based technology for accurate distance detection from 0 mm up to 6 m. Features a 12-pin LGA surface mount package measuring 4.4mm × 2.4mm × 1.0mm. Offers multiobject detection capability and live crosstalk correction within an 18° field of view.

Operates reliably in temperature ranges from -30°C to 85°C without automotive standard compliance. Maximum output current is 9μA with a maximum output voltage of 400mV. Designed for integration in electronic components, power & connectors, and sensor IC applications.
