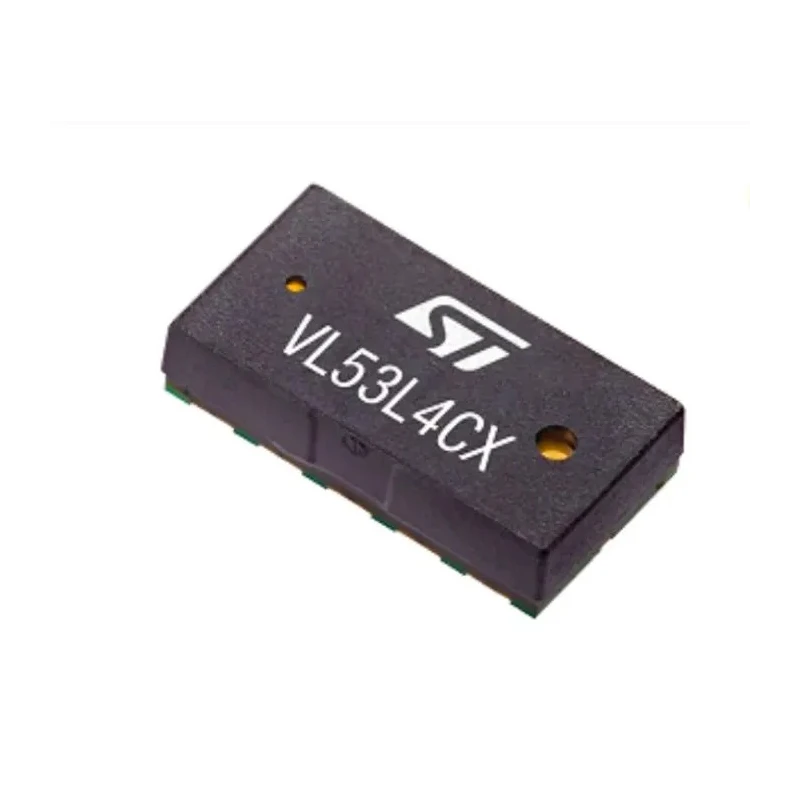

STMicroelectronics Proximity Sensor IC 6 m 2.6 V to 3.5 V Surface Mount 12-Pin LGA VL53L4CX

STMicroelectronics VL53L4CX is an advanced proximity sensor IC designed for long-range, highly accurate distance measurements up to 6 meters. Utilizing histogram-based technology and a new generation laser emitter with an 18° field of view, it enhances performance under various ambient lighting conditions and enables multi-target detection with depth perception. This sensor IC is surface mountable in a compact 12-pin LGA package measuring 4.4 mm by 2.4 mm by 1 mm, allowing easy integration on printed circuit boards for industrial and commercial applications.

The device operates within a supply voltage range of 2.6 V to 3.5 V and provides a digital output signal with maximum output current of 9 μA and voltage up to 400 mV. Its operating temperature range from -30°C to 85°C makes it suitable for diverse environmental conditions.

ST’s patented algorithms provide excellent immunity to cover glass crosstalk beyond 80 cm and dynamic smudge compensation for targets closer than 80 cm, ensuring reliable measurements across all distances from 10 mm short range to 6 m maximum sensing distance.

This Proximity Sensor IC is ideal for industrial automation, robotics, consumer electronics, and other applications where precise distance sensing is required. The reflowable surface mount package supports automated manufacturing processes.

The sensor employs histogram-based technology to measure distances from 0 mm up to 6 m accurately. Features a new generation laser emitter with 18° field of view for improved performance in ambient light. Supports multi-object detection within its field of view with depth understanding.

Designed with patented algorithms providing cover glass crosstalk immunity beyond 80 cm and dynamic smudge compensation below 80 cm. Operates within a voltage range of 2.6 V to 3.5 V for flexible power supply options. Compact 12-pin LGA package with dimensions 4.4 mm length, 2.4 mm width, and 1 mm height.

Maximum output current is 9 μA and maximum output voltage is 400 mV digital signal. Operating temperature range from -30°C to 85°C suitable for industrial environments. Reflowable and surface mount design for easy integration on PCBs.
