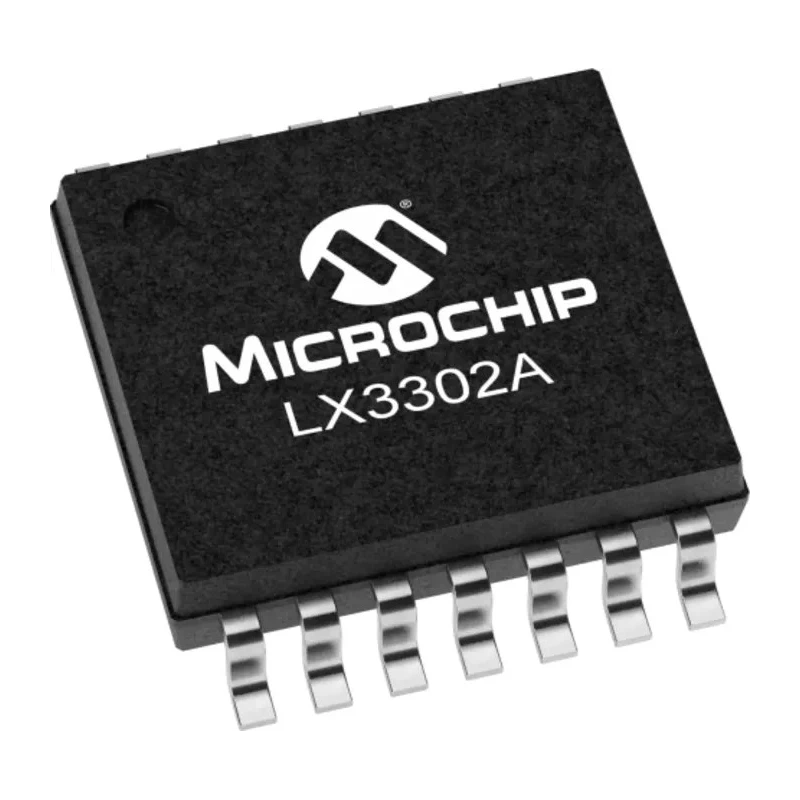

Microchip Proximity Sensor IC 4.5 V to 5.6 V Surface Mount 14 Pin TSSOP LX3302

Microchip LX3302 Proximity Sensor IC 14 TSSOP operates within a supply voltage range of 4.5 V minimum and 5.6 V maximum, ideal for inductive position sensing. It is designed for surface mount applications with a 14-pin TSSOP package type, enabling compact and reliable PCB layout.

This highly integrated IC provides a maximum output current of 8 mA and output voltage up to 300 mV, ensuring robust and accurate proximity sensing capability.

Designed especially for use with inductive sensors that detect the position of metal targets via printed circuit board traces, this sensor IC offers immunity to stray magnetic fields and eliminates the need for magnets, which are common requirements in other sensor types.

The LX3302 is compliant with the AEC-Q100 automotive standard Grade 0, supporting operation in extreme temperature ranges from -40°C to +150°C, making it suitable for harsh industrial and automotive environments.

This product supports SENT and PSI5 output interface protocols and complies with ISO26262 ASIL B for functional safety, adding reliability in critical automotive applications. Typical uses include automotive position sensing, industrial machine automation, and precise metal target position detection in embedded systems.

This sensor IC provides a maximum output current of 8 mA for reliable signal transmission. It features a maximum output voltage of 300 mV, suitable for precise sensing tasks. The LX3302 comes in a compact 14-pin TSSOP surface mount package for efficient PCB integration.

Operational temperature range is from -40°C to 150°C ensuring performance under harsh conditions. Certified to Automotive AEC-Q100 Grade 0 standards, making it highly durable and automotive compliant. Designed to interface with inductive position sensors using PCB traces for metal target detection.

Immune to stray magnetic fields and eliminates the need for magnets unlike other magnetic field-based sensors. Supports SENT and PSI5 output interface protocols for flexible integration. ISO26262 ASIL B standard support enhances safety for automotive applications.
