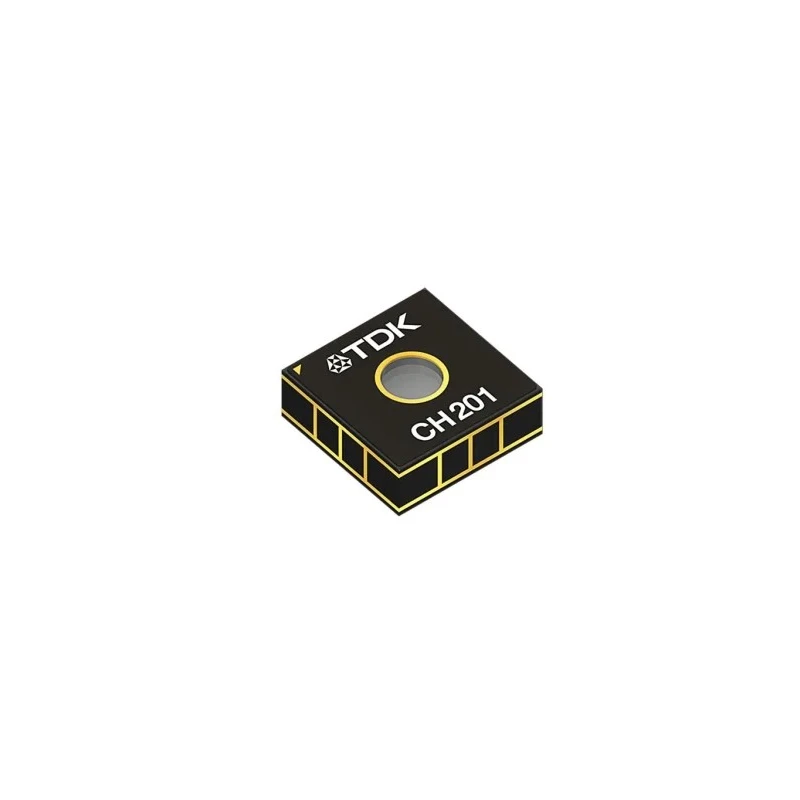

InvenSense Chirp Proximity Sensor IC 5 m 1.62 V 1.98 V 8-Pin LGA CH201-00ABR

The InvenSense CH201-00ABR is an advanced Chirp Proximity Sensor IC designed for precise, ultra-low power ultrasonic time-of-flight range measurements up to 5 meters. The sensor operates within a supply voltage range of 1.62 V to 1.98 V, making it suitable for low-voltage electronics and portable devices.

This sensor features an 8-pin Land Grid Array (LGA) surface mount package with compact dimensions of 3.5 mm length, 3.5 mm width, and 1.26 mm height, enabling integration into space-constrained circuit designs. It provides a digital output for simple interfacing with microcontrollers and embedded systems.

Rated for operation across a wide ambient temperature range from -40°C to 85°C, the CH201 is suitable for various industrial and commercial applications including industrial automation, robotics, consumer electronics, and smart sensing systems. Its maximum switching frequency of 85 kHz allows for fast and reliable detection of objects within the 5-meter sensing distance.

Built on patented microelectromechanical systems (MEMS) technology, this sensor delivers reliable and accurate measurements in diverse lighting conditions, including full sunlight and complete darkness. The device is not compliant with automotive standards but caters to demanding electronics and semiconductor sensor requirements.

Operates at low supply voltages between 1.62 V and 1.98 V. Compact 8-pin LGA package suitable for surface mounting. Wide operating temperature range from -40°C to +85°C. Maximum switching frequency of 85 kHz for rapid sensing.

5-meter sensing distance with ultrasonic time-of-flight accuracy. Digital output facilitates straightforward integration. Utilizes patented MEMS technology for precision. Manufactured in Taiwan, Province Of China.

This proximity sensor IC is ideal for applications requiring long-range and accurate distance measurements such as industrial safety, robotics, consumer devices, and environmental sensing. Its low power consumption and compact form factor make it an excellent choice for embedded system designers.
