InvenSense Sensor Development Tool MEMS Evaluation Board for MMICT3902-00-012 EV_T3902-FX

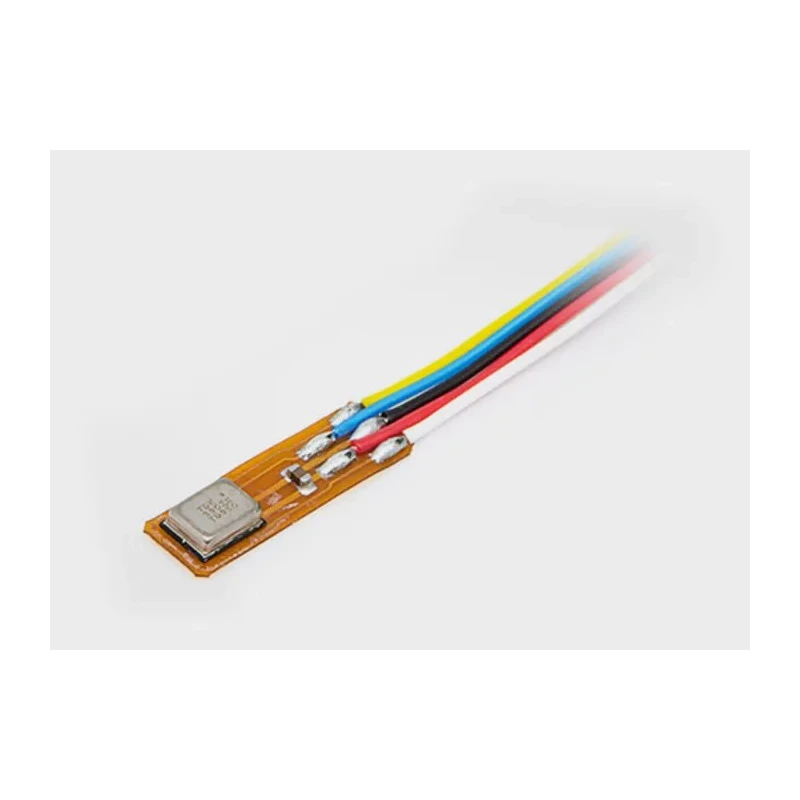

InvenSense EV_T3902-FX MEMS Evaluation Board is designed for sensor development and evaluation, targeting the MMICT3902-00-012 PDM MEMS microphone devices. It features a bottom port microphone soldered onto a flexible printed circuit board with color-coded wires attached, facilitating straightforward testing and integration in prototype systems.

The evaluation board supports a clock frequency range from 400 KHz up to 3.3 MHz with a sensitivity of -26 dB, enabling precise performance evaluation of the MEMS microphone in various applications. The low-profile flexible PCB is engineered to be compact and allows easy mounting directly into design prototypes, ensuring minimal impact on device form factor.

This tool is ideal for use in electronics, semiconductor, and development engineering environments, especially for design validation of MEMS acoustic sensors. It is compliant with RoHS standards, aligning with environmental and regulatory requirements.

Its small size and robust design allow for seamless integration into sensor development workflows, supporting rapid prototyping and functional testing. The flexible wiring and microphone mounting simplify connection and signal acquisition during evaluations.

The board includes a bottom port PDM MEMS microphone with attached flexible PCB and color-coded wiring. Supports clock frequencies from 400 KHz to 3.3 MHz with -26 dB sensitivity. Compact low-profile design facilitates direct placement in prototypes.

Suitable for development and evaluation of MMICT3902-00-012 MEMS microphones. Compliant with RoHS standards for environmental safety.

This InvenSense EV_T3902-FX MEMS Evaluation Board provides engineers and developers with a reliable sensor development tool for acoustic sensor prototyping and testing. For exploring more Sensor Development Tools, browse the Electronics & Electricals category on EnvMart.
