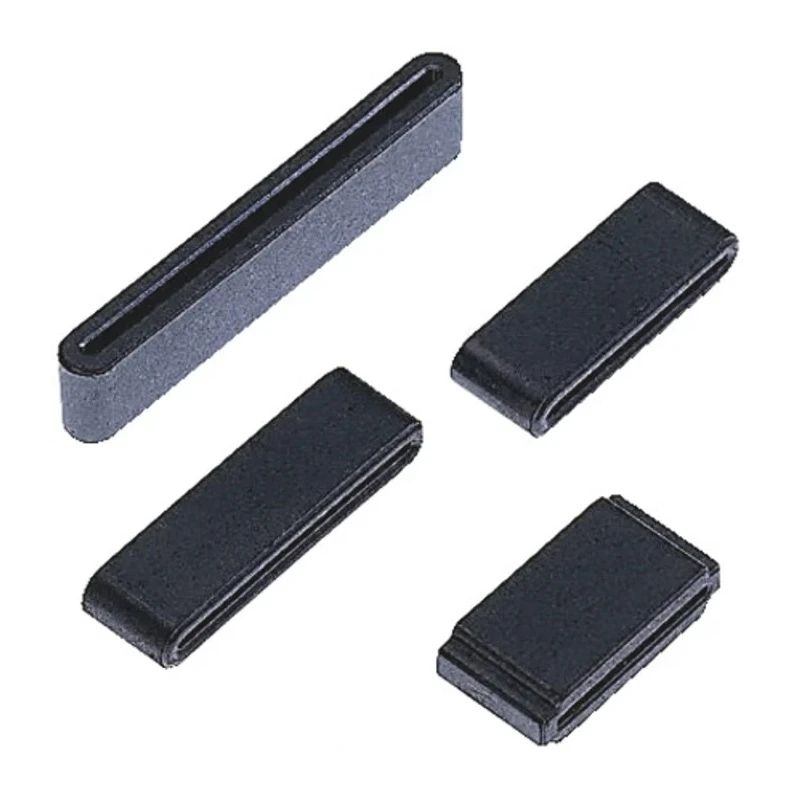

KEMET Ferrite Flat Cable Ferrite, 16 max. wires, Solid Core 1.5 mm Internal Height, 23.5 mm Internal Width ESD-FPL-7

Free Delivery in India | Lowest Global Shipping Charges

KEMET Ferrite Flat Cable Ferrite, 16 max. wires, Solid Core 1.5 mm Internal Height, 23.5 mm Internal Width ESD-FPL-7

Name: KEMET Ferrite Flat Cable Ferrite, 16 max. wires, Solid Core 1.5 mm Internal Height, 23.5 mm Internal Width ESD-FPL-7
Brand: KEMET
SKU: 132855
Price: 0.94 USD
Availability: InStock



Category Ferrite Sleeves Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Material	Ferrite
Model	ESD-FPL-7
Sub Type	Solid Core
Internal Width	23.5mm
Internal Height	1.5mm
External Width	28mm
External Depth	7mm
External Height	7.7mm
Standards/Approvals	RoHS
Maximum Frequency	300MHz
Impedance at 100 MHz	60Ω
Maximum Number of Wires	16

Key Features

Constructed from solid ferrite material for EMI interference reduction.
Specifically designed to eliminate severe interference on ribbon cables in digital devices.
Impedance of 60Ω at 100 MHz ensures effective suppression of noise.
Maximum frequency rating of 300 MHz suitable for consumer electronics.
Non-openable solid core construction offers durability and stable performance.
Compact dimensions include 7 mm external depth, 28 mm external width, and 7.7 mm external height.
Compliance with RoHS standards assures environmental and safety quality.
Can be secured in position with heat shrink sleeving or adhesive after application.

Product Description

KEMET ESD-FPL-7 Ferrite Flat Cable Ferrite is a solid core ferrite product engineered for use in flat cables with up to 16 wires. It features an internal height of 1.5 mm and an internal width of 23.5 mm, designed to suppress electromagnetic interference effectively in consumer electronics applications.

The solid ferrite material, with an impedance of 60Ω at 100 MHz and a maximum frequency usage up to 300 MHz, provides significant noise reduction and signal integrity enhancement in digital devices and display controllers. The product’s compact external dimensions - 7 mm depth, 28 mm width, and 7.7 mm height - make it suitable for tight cable routing and space-constrained designs.

This non-openable, solid core ferrite sleeve is intended to be threaded over flat cables before connectors are applied and is held in place using heat shrink sleeving or glue, ensuring secure positioning during use. The product complies with RoHS environmental standards, guaranteeing safe use in various electronic designs.

Flat Cable Ferrites like the ESD-FPL-7 are widely used in industrial, consumer electronics, and communication equipment to mitigate EMI issues, which improves device reliability and performance.

Constructed from solid ferrite material for EMI interference reduction. Designed to eliminate interference on ribbon cables in digital devices. Impedance of 60Ω at 100 MHz for noise suppression. Maximum frequency of 300 MHz supports consumer electronics applications.

Non-openable solid core ensures durability and consistent performance. Compact external dimensions facilitate installation in restricted spaces. RoHS compliant for environmental and safety standards. Installation via heat shrink sleeving or adhesive secures the ferrite sleeve.
