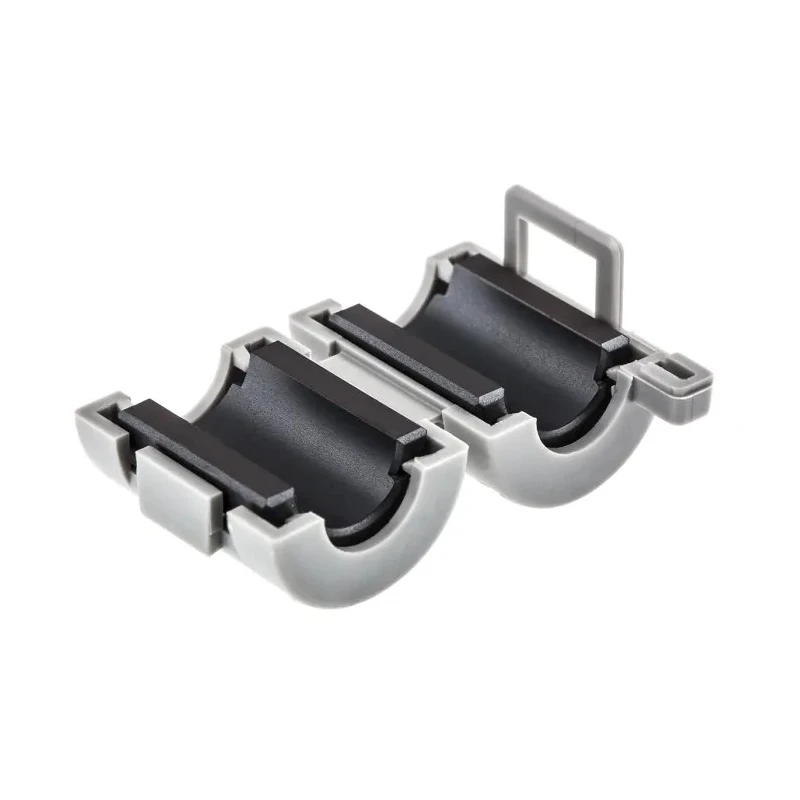

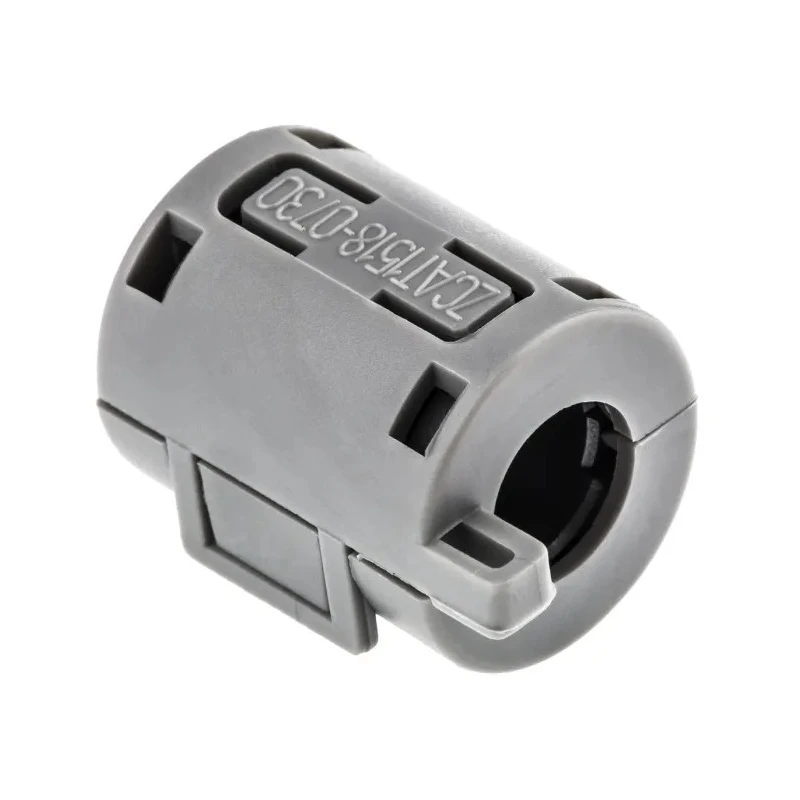

TDK Openable Ferrite Sleeve, 7 mm Aperture, EMC Suppression, Snap Lock, 15x18x22 mm, ZCAT1518-0730
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT1518-0730 |
| Series | ZCAT |
| Aperture diameter | 7mm |
| Sub Type | Ferrite Core |
| External Width | 18mm |
| External Depth | 15mm |
| External Height | 22mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 100 MHz | 80 |
| Impedance at 25 MHz | 25 |
| Number of Apertures | 1 |
| Impedance at 300 MHz | 50Ω |
| TDK Openable, Diameter 7 mm Ferrite Sleeve, Apertures | 1 15 mm 22 mm 18 mm, For Suppression Components |
Key Features
- Openable ferrite sleeve enables quick and secure cable installation.
- Snap-lock housing prevents accidental opening and slippage.
- 7 mm aperture suits a variety of cable diameters.
- Effective EMI suppression using high-performance TDK 30 Material core.
- Single aperture, suitable for data and power lines in electronics and industrial applications.
- REACH and RoHS compliant for environmental and safety standards.
- Split design allows mounting on cables with connectors.
- Impedance ratings provide high attenuation across frequencies.
Product Description
The TDK ZCAT1518-0730 is an openable ferrite sleeve designed for suppression of electromagnetic interference (EMI) on cables and wires. Its distinctive 7 mm aperture accommodates a wide variety of cable diameters, making it suitable for numerous electronic applications including computers, monitors, audio equipment, medical devices, and industrial controllers.
Engineered with a robust split ferrite core, this sleeve provides effective attenuation for high-frequency electromagnetic disturbances. The product features a snap-lock plastic housing, preventing accidental opening during installation and operation. Its self-holding mechanism not only secures the device on cables but also simplifies fitting, including on cables fitted with connectors.
The ZCAT Series clamp filters are constructed from specialized material (TDK 30 Material ferrite core), ensuring high absorption efficiency and preventing core saturation during large signal surges. The product includes a single aperture and is designed to provide consistent impedance across various frequencies: 25 ohms at 25 MHz, up to 80 ohms at 100 MHz. External dimensions (15 mm x 18 mm x 22 mm) allow compatibility with standard cable assemblies.
This ferrite sleeve is REACH and RoHS compliant, aligning with industry and environmental standards. Practical use cases include suppression on personal computer cables, word processors, monitors, hard disk drives, digital telephones, musical instruments, video game systems, copiers, facsimile machines, as well as industrial data or power lines.
Installation is straightforward. Split design allows mounting on pre-installed cables. The outer housing shields the ferrite halves from breakage and can be fixed further with glue or ties if desired. TDK ZCAT1518-0730 offers reliable performance for laboratory, office, IT infrastructure, and industrial settings.
For more ferrite sleeves and cable EMI solutions, explore the Ferrite Sleeve category from TDK and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance rating of the TDK ZCAT1518-0730 ferrite sleeve at 100 MHz is 80 ohms.
This ferrite sleeve features a 7 mm aperture diameter, accommodating a variety of cable sizes.
The external dimensions of this model are 15 mm in depth, 18 mm in width, and 22 mm in height.
The split design of the ferrite sleeve allows for easy mounting on pre-installed cables, including those with connectors.
The TDK ZCAT1518-0730 is constructed from TDK 30 Material, which is designed for effective EMI suppression.
This model is compliant with REACH and RoHS environmental standards.
This ferrite sleeve is suitable for various applications, including personal computer cables, monitors, medical devices, and industrial controllers.
The impedance rating of this ferrite sleeve at 25 MHz is 25 ohms.
The snap-lock feature of the ferrite sleeve prevents accidental opening during installation and operation, ensuring secure placement on cables.
The TDK ZCAT1518-0730 has a single aperture for cable installation.
At 300 MHz, the impedance rating of this ferrite sleeve is 50 ohms.
The TDK ZCAT1518-0730 is manufactured in India.
