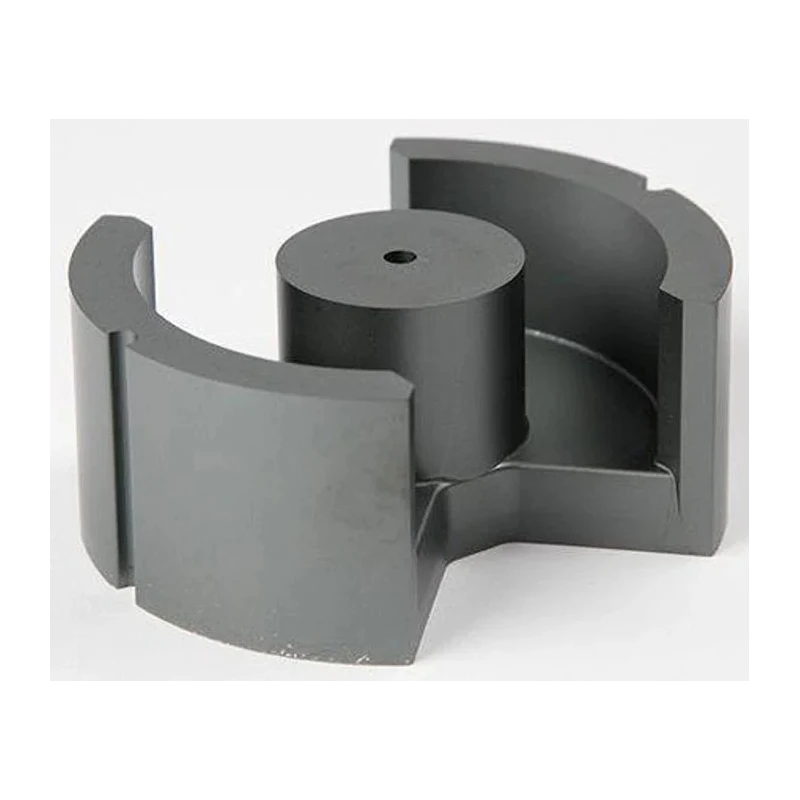

TDK N87 PM 87/70 Transformer Ferrite Core 12000 nH For Use With Energy Storage Chokes Power Transformers B65713A0000R087

TDK B65713A0000R087 PM 87/70 Transformer Ferrite Core offers an AL rating of 12000 nH and is engineered for use with energy storage chokes and power transformers in various industrial and telecommunications applications. This ferrite core features a pot core design that delivers a wide flux area for high power handling at a minimum number of turns, effectively reducing magnetic leakage and stray capacitance.

Manufactured from premium N87 ferrite material, this core operates reliably at temperatures up to 155°C. It complies with IEC 61247 standards, ensuring quality and industrial suitability. The core's dimensions, including a length and depth of 70 mm and a width of 87 mm, provide a compact yet efficient form factor suitable for high-frequency transformers up to 300 kHz.

The closed form of the pot core shape offers good magnetic shielding and noise suppression. Precisely ground air gaps facilitate straightforward assembly and economic mounting in transformer designs.

This transformer ferrite core is widely used in telecommunications and industrial electronics where efficient energy transfer and compact core size are critical. Its robust construction and performance characteristics support applications in power transformers and energy storage chokes.

Core size PM 87/70 provides optimized flux handling. Ferrite material N87 ensures high magnetic permeability and low losses. Maximum operating temperature rating of 155°C for enhanced durability. Compliance with IEC 61247 ensures reliability in electrical applications.

Pot core design minimizes magnetic leakage and stray capacitance. Compact dimensions of 70 mm length, 87 mm width, and 70 mm depth suitable for high-frequency use. Effective shielding reduces electromagnetic interference.

Application in telecommunications, industrial electronics, and power transformers. Explore our extensive range of high-quality Transformer Cores at EnvMart for reliable and efficient electronic component sourcing.
