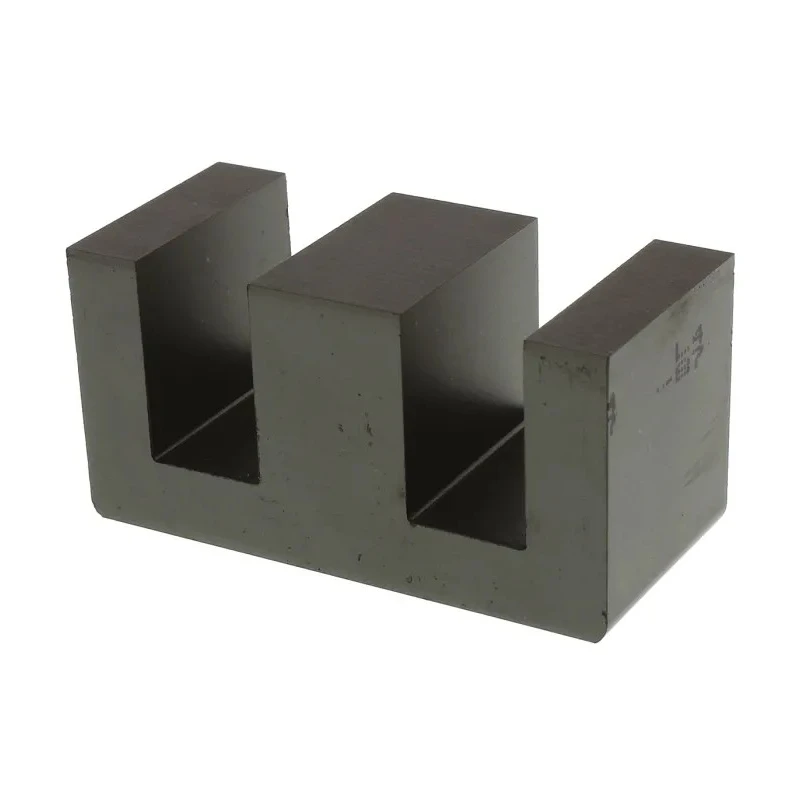

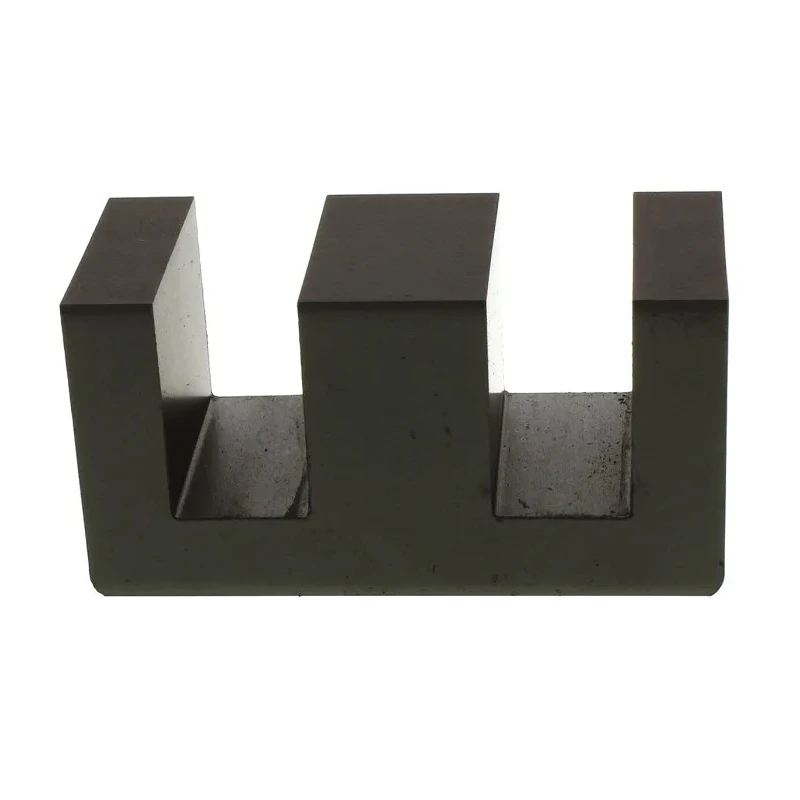

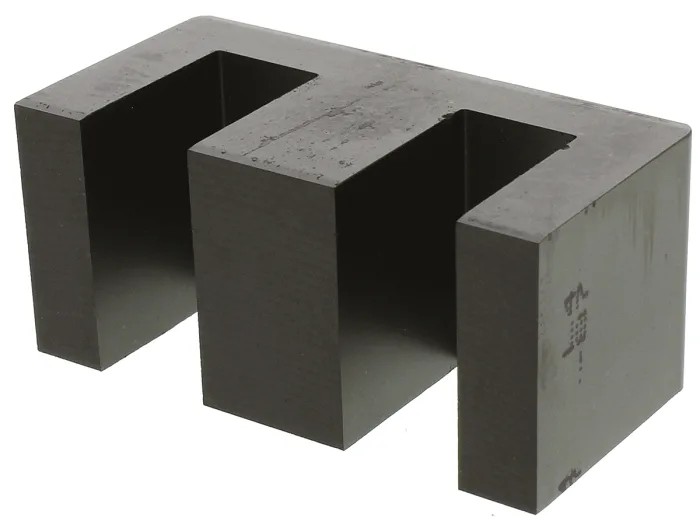

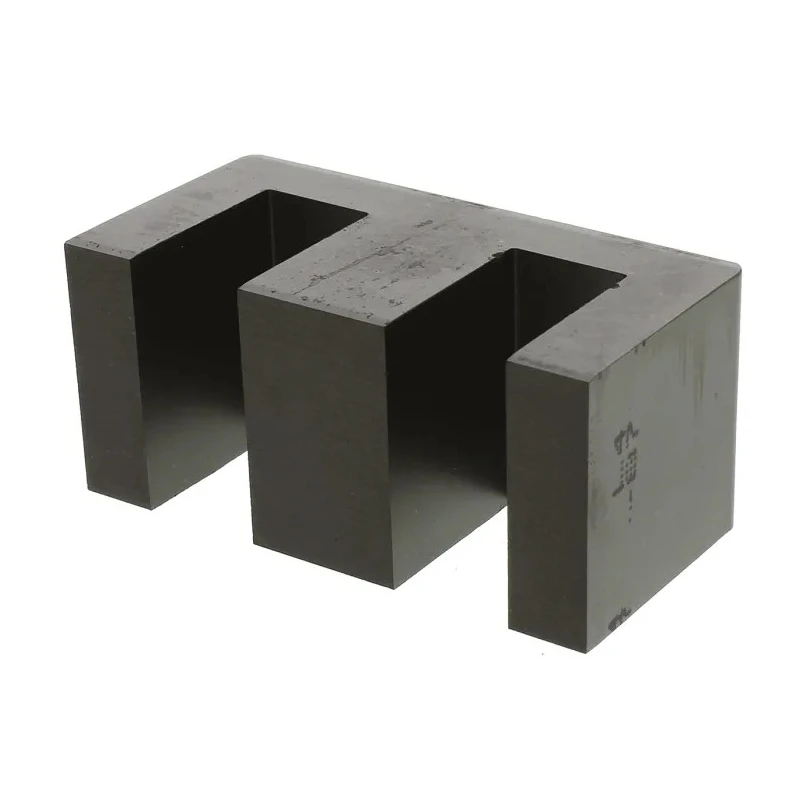

TDK N87 E 42 Transformer Ferrite Core, 5200 nH, 42mm Length, 21.2mm Width, 20mm Depth B66329G0000X187
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | N87 |
| Length | 42mm |
| Model | B66329G0000X187 |
| Depth | 20mm |
| Width | 21.2mm |
| Series | B66329 |
| Maximum Operating Temperature | 155°C |
| Standards/Approvals | IEC 61246 |
| Core Size | E 42 |
| AL Rating | 5200nH |
| Core Type | Type E |
| EPCOS Transformer CoreBrand | Epcos |
Key Features
- The core size is E 42 with a length of 42mm, width of 21.2mm, and depth of 20mm.
- Manufactured from N87 material providing stability and low loss.
- Maximum operating temperature rating is 155°C ensuring reliable thermal performance.
- This type E ferrite core is supplied without an air gap, suitable for various power applications.
- Complies with IEC 61246 standards for quality and performance assurance.
- Ideal for use in electronic components, power supplies, and transformers.
- The core belongs to the B66329 series supporting EPCOS transformer core compatibility.
Product Description
TDK B66329G0000X187 Transformer Ferrite Core E 42 is a precision-engineered ferrite core designed for transformer applications in electronics and power supply systems. It features a core size E 42, measuring 42mm in length, 21.2mm in width, and 20mm in depth, which ensures compatibility with standard transformer constructions.
Constructed from N87 grade material, this ferrite core offers excellent magnetic properties with a high AL rating of 5200 nH, enhancing efficiency and energy retention. The core can operate reliably at temperatures up to 155°C, making it suitable for demanding thermal environments commonly encountered in industrial and laboratory settings.
This ferrite core is a type E core provided without an air gap, which is essential for magnetic flux and inductance optimization in specialized transformer designs. It complies with the IEC 61246 standard, guaranteeing quality and safety in industrial applications.
TDK’s B66329 series cores are widely recognized and used in various sectors including manufacturing, HVAC systems, industrial automation, and power electronics. They are suitable for building high-performance transformers and improving energy efficiency in devices.
The core size is E 42 with dimensions 42mm x 21.2mm x 20mm. Material used is N87, known for its low loss and high stability. AL Rating of 5200 nH supporting transformer inductance requirements. Maximum operating temperature is rated at 155°C for thermal endurance.
Meets IEC 61246 standards ensuring compliance with international norms. Supplied without an air gap, ideal for precision magnetic tuning. Part of the B66329 series optimized for transformer use.
This ferrite core is an essential component for transformer manufacturers, electronics engineers, and developers involved in power supply design and electronic component assembly. EnvMart provides this product backed by trusted specifications, quality assurance, and practical use case information to support informed purchasing decisions.
Explore more products in our Transformer Cores category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This transformer ferrite core has dimensions of 42mm in length, 21.2mm in width, and 20mm in depth.
The AL rating of this ferrite core is 5200 nH, which enhances its efficiency and energy retention.
The maximum operating temperature for this transformer ferrite core is rated at 155°C, ensuring reliable thermal performance.
It is constructed from N87 material, which provides stability and low loss characteristics.
This core complies with IEC 61246 standards, ensuring quality and performance assurance.
No, this type E ferrite core is supplied without an air gap, which is essential for optimizing magnetic flux and inductance.
It belongs to the B66329 series, which supports EPCOS transformer core compatibility.
This ferrite core is suitable for various power applications, including use in electronic components, power supplies, and transformers.
The core type of this ferrite core is Type E, which is designed for specialized transformer applications.
The country of origin for this transformer ferrite core is India.
The physical parameters include a length of 42mm, a width of 21.2mm, and a depth of 20mm.
N87 material is known for its low loss and high stability, making it suitable for transformer applications.
