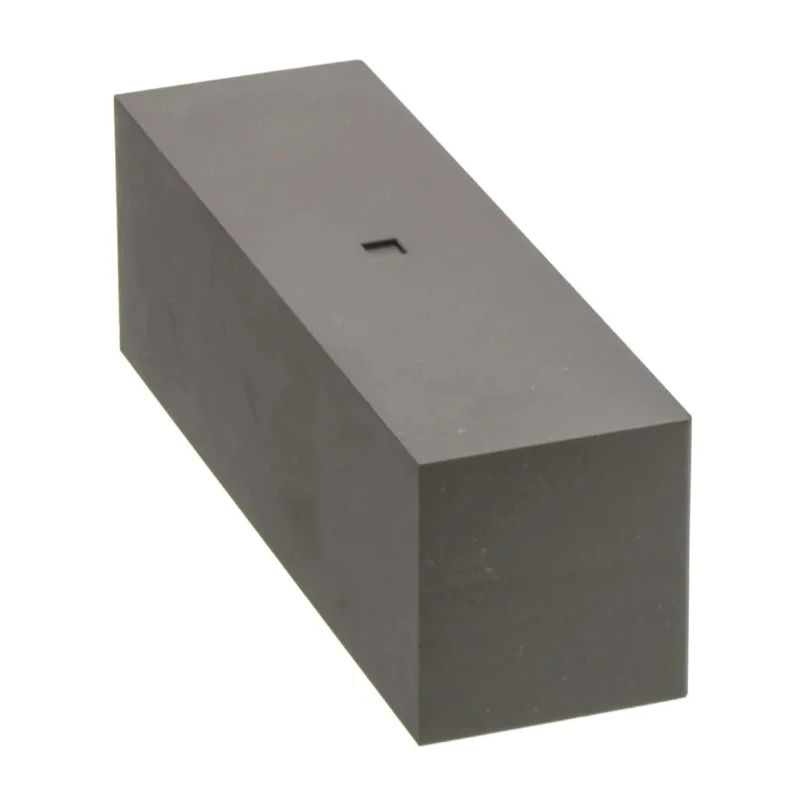

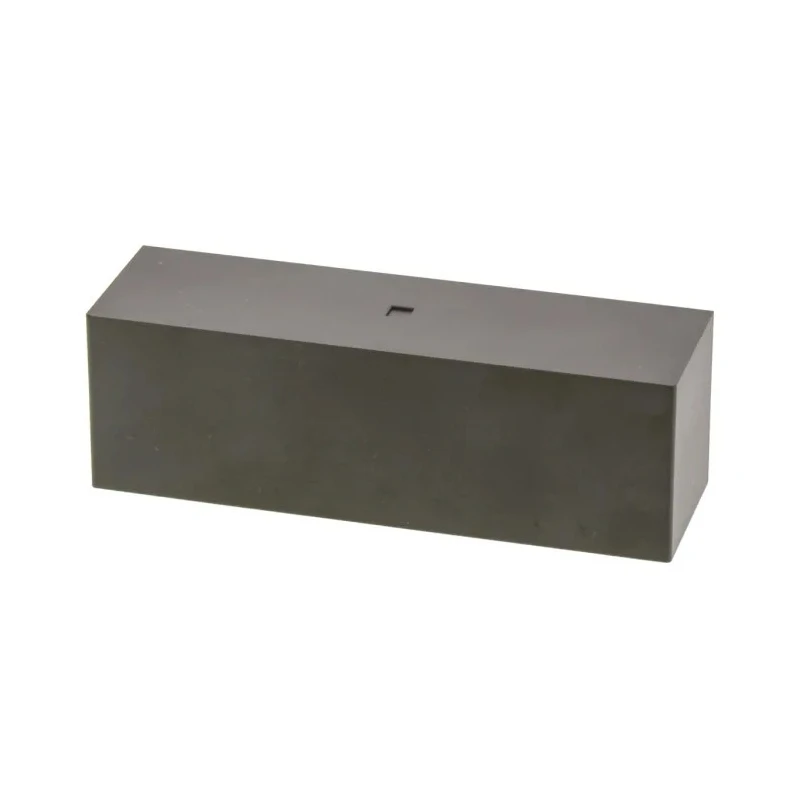

TDK Transformer Ferrite Core N87, Core Size I 93/104/30, AL Rating 7900 nH B67345B0002X087

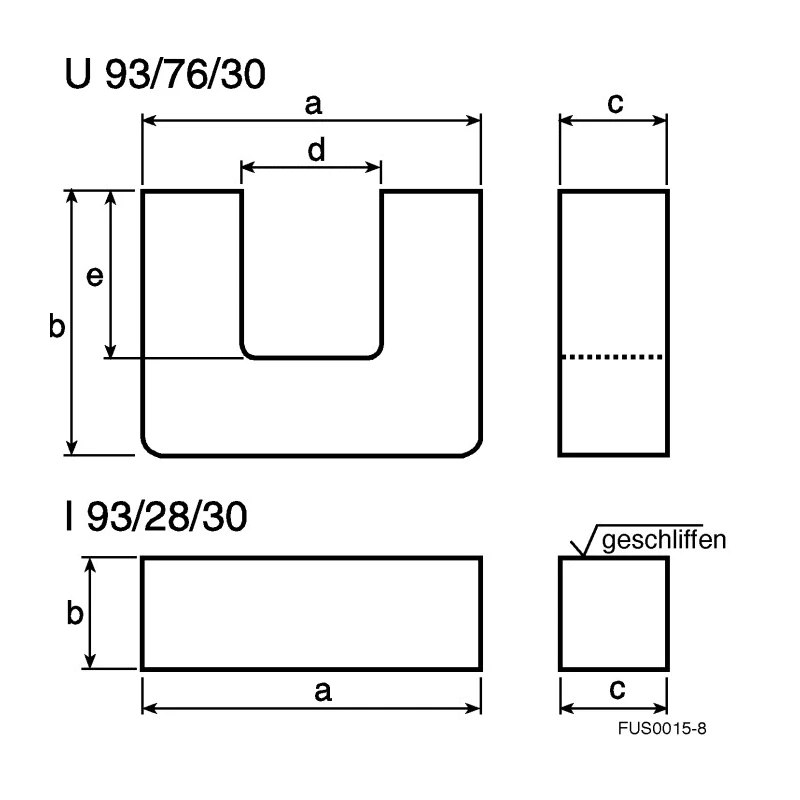

TDK B67345B0002X087 Transformer Ferrite Core is a high-performance magnetic component manufactured using premium N87 ferrite material. The core size is specified as I 93/104/30 with precise dimensions of 93 mm length, 28 mm width, and 30 mm depth, making it ideal for incorporation into various power transformer designs.

This core belongs to the B67345 series, which is characterized by its high saturation flux density and low dissipation losses, allowing for efficient energy transfer and minimal heat generation. The N87 material is suitable for pulse and high-voltage transformers, ensuring stable operation under demanding conditions.

I and U shaped cores of this series are supplied separately enabling versatile assembly options and customization for transformer winding configurations. The AL rating of 7900 nH applies to the core set of one U and one I core without an air gap, providing optimized inductance for transformer windings.

Common industrial and commercial applications include use in storage chokes and building power transformers where reliable magnetic performance is critical. This product is compliant with standard industrial requirements though it does not carry specific approvals or certifications.

The core material used is N87 ferrite, known for high curie temperature and low losses. The core size I 93/104/30 facilitates its integration into precise power transformer assemblies. The AL value of 7900 nH supports efficient transformer inductance.

Designed for use in high-voltage and pulse transformers requiring low dissipation magnetic cores. Supplied as separate U and I cores to accommodate various transformer applications. This transformer core is a key component in electrical, industrial, and manufacturing applications that demand durable and efficient magnetic cores for transformer performance.
