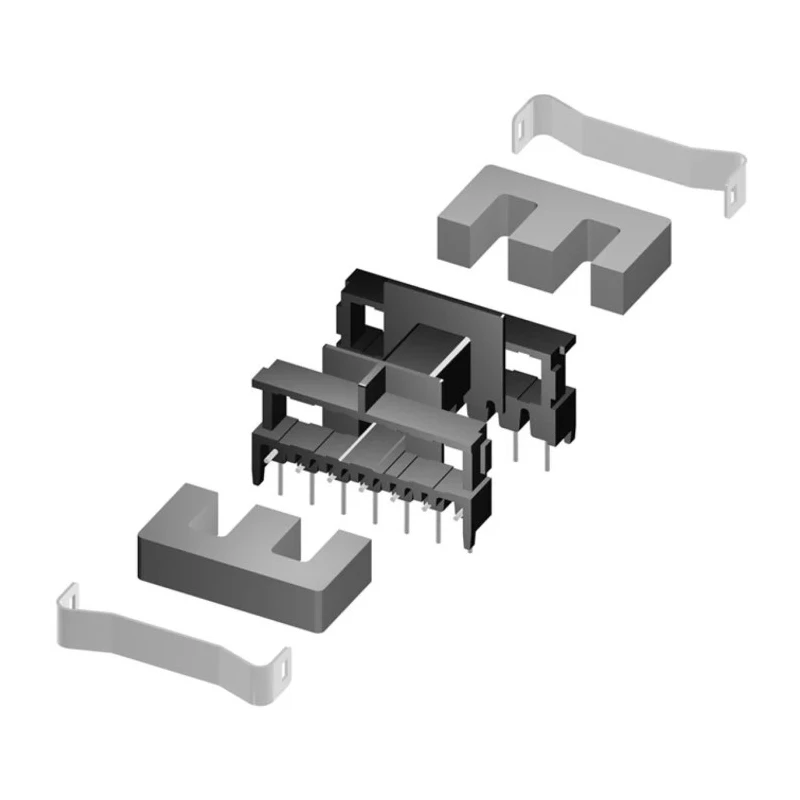

TDK Transformer Ferrite Core N87 Material, E 30/15/7 Core Size, 1900 nH AL Rating B66319G0000X187

TDK B66319G0000X187 transformer ferrite core is engineered using high-quality N87 material, known for its excellent saturation flux density and reduced power loss, making it ideal for demanding power applications.

The core has an E 30/15/7 size with precise dimensions: length 30mm, width 7.3mm, and depth 15.2mm, providing a compact and efficient magnetic circuit design. This ferrite core is primarily intended for use with power transformers operating in frequency ranges up to 100 KHz, offering stable magnetic performance and thermal durability.

Its maximum operating temperature of 155°C allows it to function reliably in high-temperature environments, preserving magnetic properties over time.

Compliant with IEC 61246 standards, the B66319 series ensures consistent quality and compatibility across transformer designs, facilitating easy integration in industrial, electronics manufacturing, and power supply sectors.

Constructed with N87 material for high saturation flux density and low power loss. Core size E 30/15/7 with compact mounting dimensions and wide side openings. Rated AL value of 1900 nH for efficient inductance performance.

Maximum operating temperature of 155°C for durable thermal stability. Suitable for power transformers in frequency ranges up to 100 KHz. Compliant with IEC 61246 for transformer core standards. Manufactured in India ensuring high production standards.

This TDK transformer ferrite core is widely used in industrial power transformers, electronics power supplies, and HVAC applications requiring efficient magnetic cores with reliable performance. Its compact size and high-quality construction provide a trusted solution for manufacturers and engineers.

Explore the category of Transformer Cores and related components to find compatible parts and enhance your power transformer designs at EnvMart.
