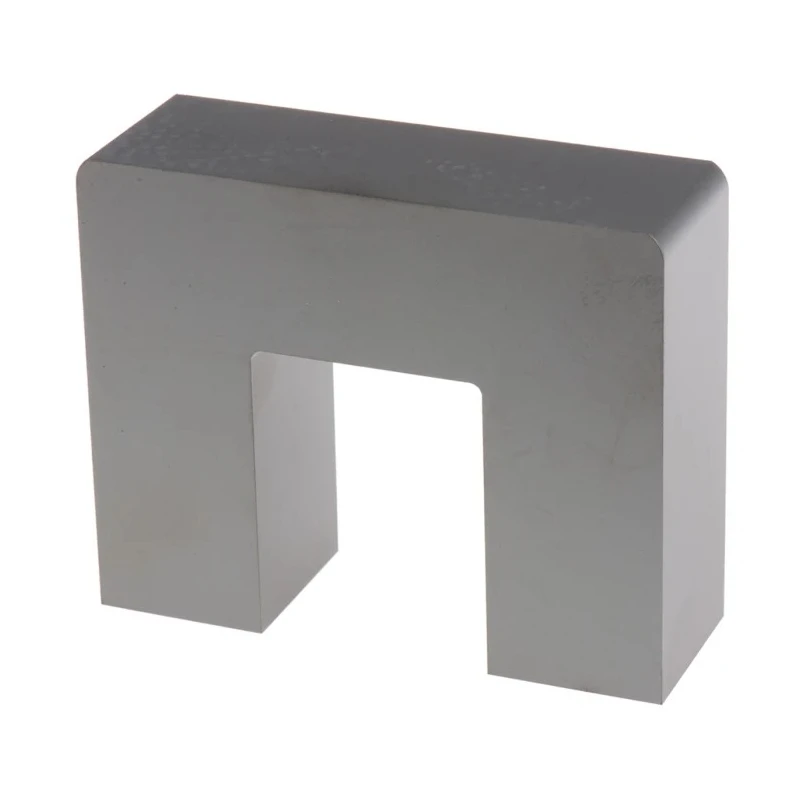

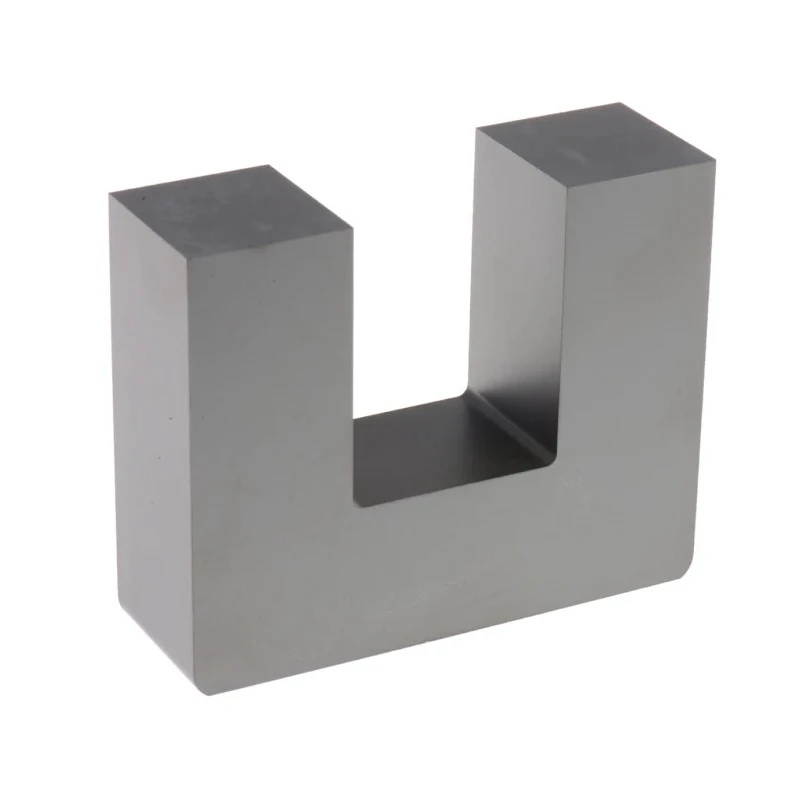

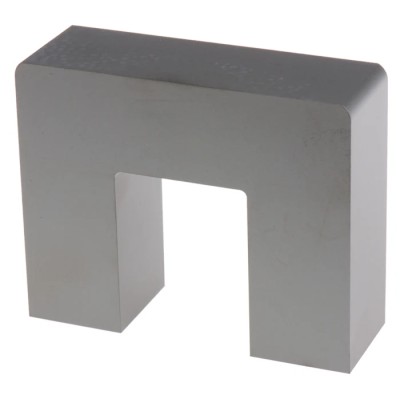

TDK Transformer Ferrite Core U 93/104/30, N87 Material, AL Rating 5700nH, For Use With Power Transformers B67345B0001X087

TDK B67345B0001X087 Transformer Ferrite Core U 93/104/30 is engineered with N87 material to provide excellent magnetic characteristics, featuring an AL rating of 5700nH. This core is specifically designed for power transformers, supporting effective performance in power, pulse, and high-voltage transformer applications.

The core dimensions measure 93mm in length, 76mm width, and 30mm depth, delivering a compact and efficient form factor suitable for various industrial and electronic transformer assemblies.

These cores are supplied as separate U and I cores, allowing for modular construction tailored to specific transformer requirements. The ferrite material N87 is selected for its high saturation flux density and low dissipation losses, enhancing transformer efficiency and thermal performance.

Applications include storage chokes and transformers, as well as building power transformers used in industrial and electronic equipment. The AL value of 5700nH applies to a U core set consisting of two cores (combination UI 93/152/30) without an air gap, and to core sets made of one U core and one I core (combination UI 93/104/30) also without an air gap.

Constructed from N87 ferrite material with high saturation flux density. Core size is U 93/104/30 with 93mm length, 76mm width, and 30mm depth. Ideal for power transformer applications requiring efficient magnetic cores.

Supplied as separate U and I cores allowing flexible configuration. High AL rating of 5700nH ensuring excellent inductance properties. Applicable in storage chokes and power transformers in industrial settings. Part of the B67345 series ensuring component consistency and quality.

Explore more Transformer Cores and related electronic components at EnvMart for your industrial and manufacturing needs.
