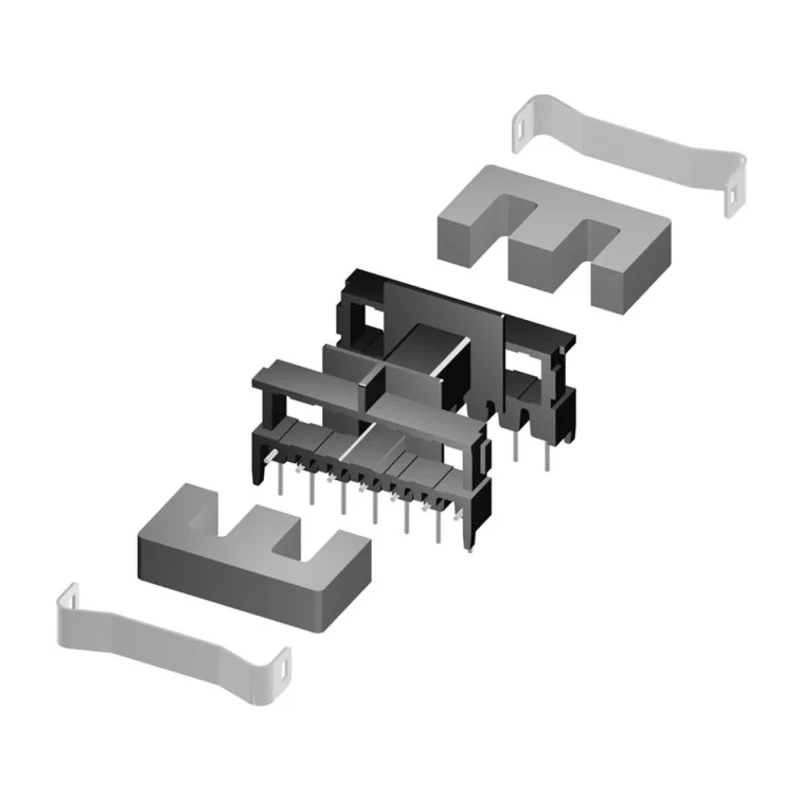

TDK N27 E 25/13/7 Transformer Ferrite Core, 1750 nH AL Rating, 25mm Length, 12.8mm Depth, 7.5mm Width, For B66317G0000X127



Category Transformer Cores Brand TDK Condition New

Specifications

Country of Origin	Czech Republic
Brand	TDK
Material	N27
Length	25mm
Model	B66317G0000X127
Depth	12.8mm
Width	7.5mm
Series	B66317
Maximum Operating Temperature	155°C
For Use With	Power TransFormers
Standards/Approvals	IEC 61246
Core Size	E 25/13/7
AL Rating	1750nH
Core Type	Type E

Key Features

The core size measures 25mm length, 12.8mm depth, and 7.5mm width.
Constructed from N27 ferrite material, providing high saturation flux density and low power loss.
Supports maximum operating temperature up to 155°C ensuring reliable performance.
Manufactured according to IEC 61246 standards for transformer cores.
Suitable for power applications in frequency ranges up to 100 KHz.
Rectangular center leg with compact mounting dimensions and wide openings.
Originates from Czech Republic ensuring high quality and compliance.

Product Description

TDK B66317G0000X127 transformer ferrite core E 25/13/7 is engineered specifically for use with power transformers requiring precise magnetic components with an AL rating of 1750 nH. Manufactured from high-grade N27 ferrite material, this core provides excellent saturation flux density and minimal power loss, ideal for efficient transformer design in industrial and commercial electronic applications.

The core dimensions are 25mm in length, 12.8mm in depth, and 7.5mm in width, featuring a rectangular center leg design that offers compact mounting dimensions with wide side openings for ease of assembly. The core supports a maximum operating temperature of 155°C, suitable for high-temperature environments encountered in power supply units and converters.

Compliant with IEC 61246 standards, the TDK ferrite core assures consistent quality and performance benchmarks suitable for power applications operating at frequency ranges up to 100 KHz. These characteristics make it a reliable component for transformer manufacturers targeting efficient energy transfer and long-term durability.

The product is made in the Czech Republic, underlining its adherence to high manufacturing standards. Typical industrial use cases include power transformers in electronics and electrical equipment manufacturing, laboratory power supply assemblies, and commercial power management systems.

The core size measures 25mm length, 12.8mm depth, and 7.5mm width. Made from N27 ferrite material with low power loss and high flux density. Maximum operating temperature of 155°C ensures operational stability. Designed with a rectangular center leg and wide side openings for mounting.

Suitable for applications up to 100 KHz frequency range. Manufactured to IEC 61246 standards. Ideal for power transformers and industrial power management equipment. Explore more high-quality Transformer Cores in the Transformers & Transformer Parts category at EnvMart for your electronic and industrial requirements.
