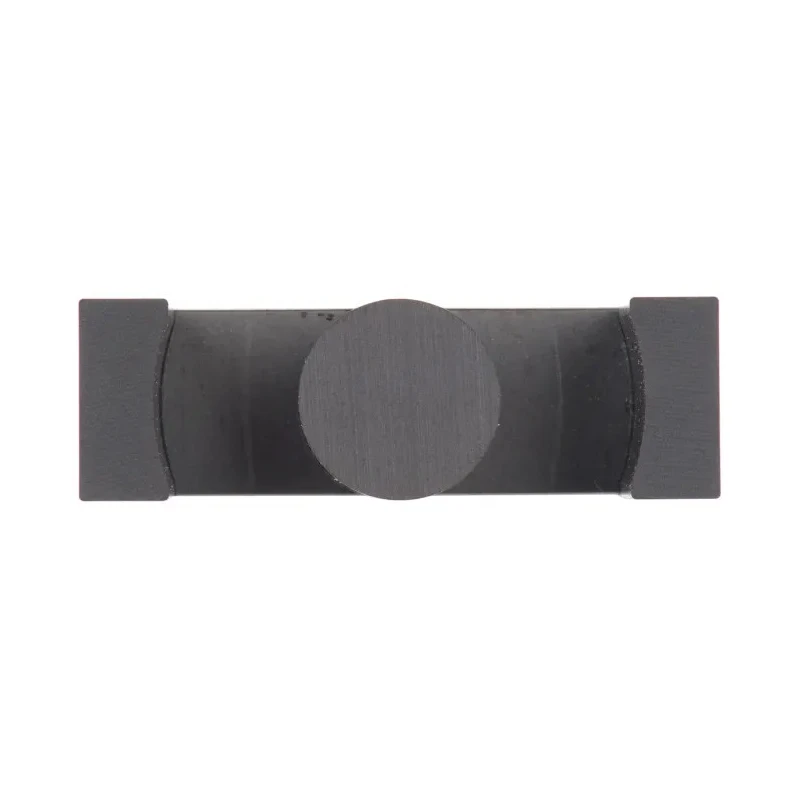

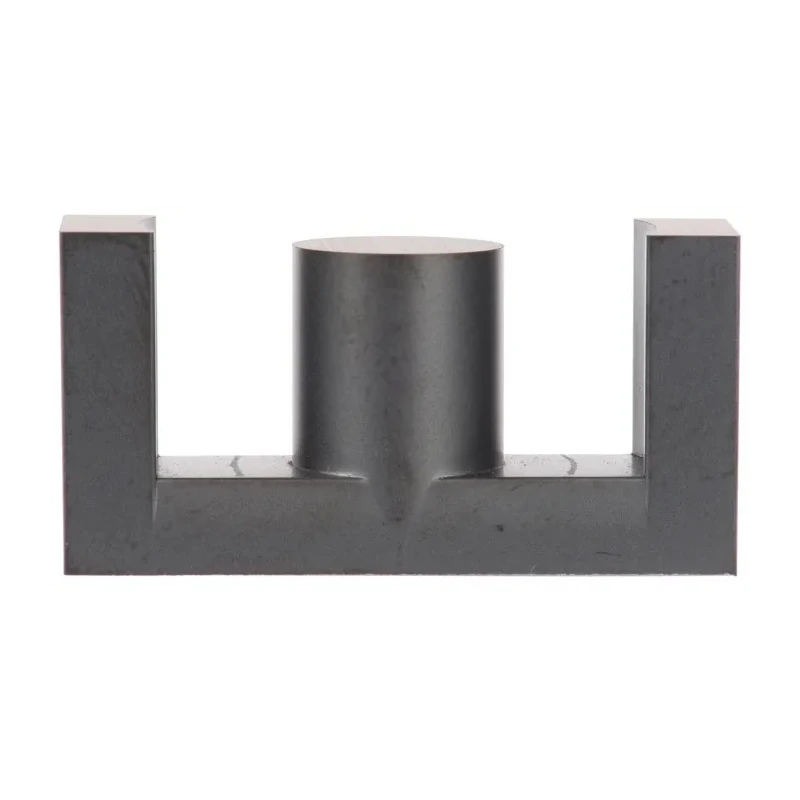

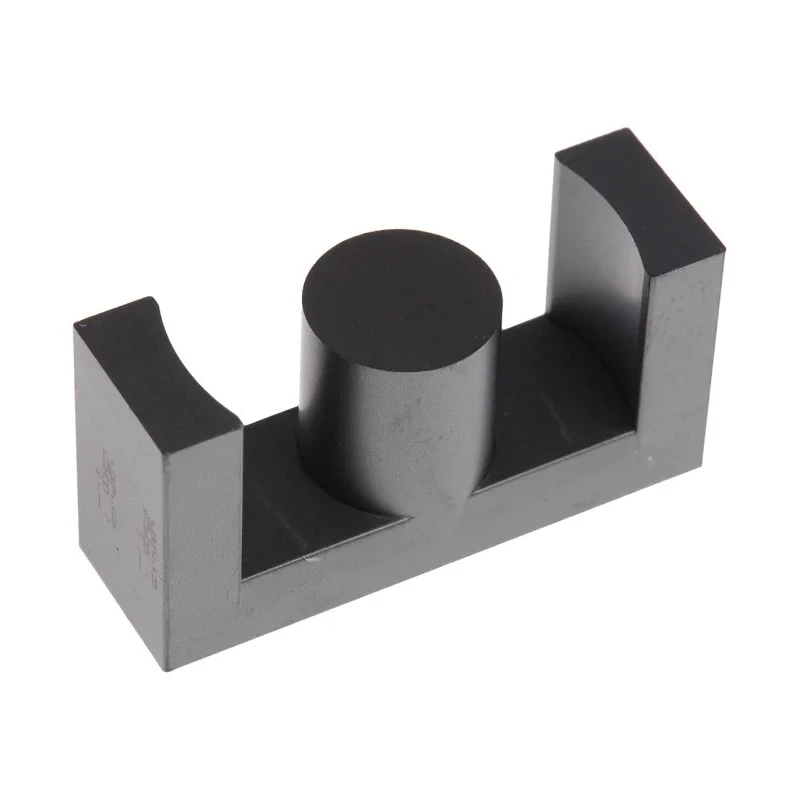

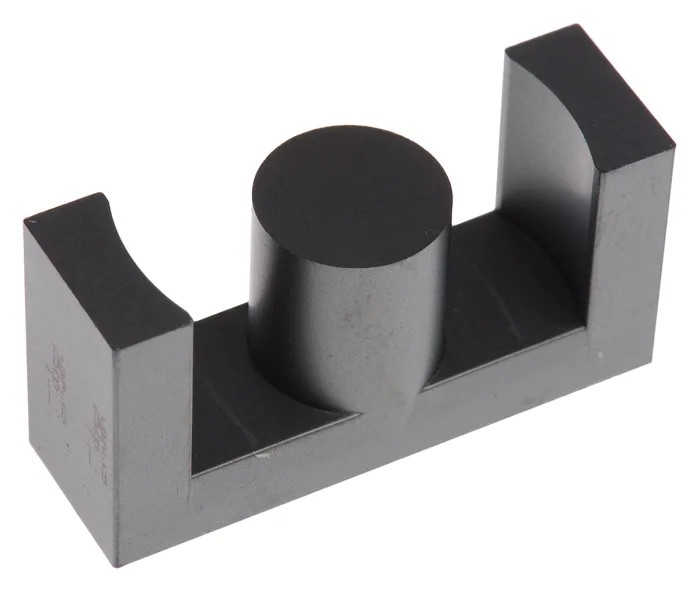

TDK N87 ETD 34 Transformer Ferrite Core, 135 nH, 34mm Length, 17.5mm Width, 11.1mm Depth for SMPS Transformer B66361G1000X187

TDK B66361G1000X187 Transformer Ferrite Core ETD 34 is engineered specifically for use in switched-mode power supply (SMPS) transformers. It features a precise 135 nH AL rating and is manufactured from premium-grade N87 ferrite material known for its low magnetic losses and high-frequency performance.

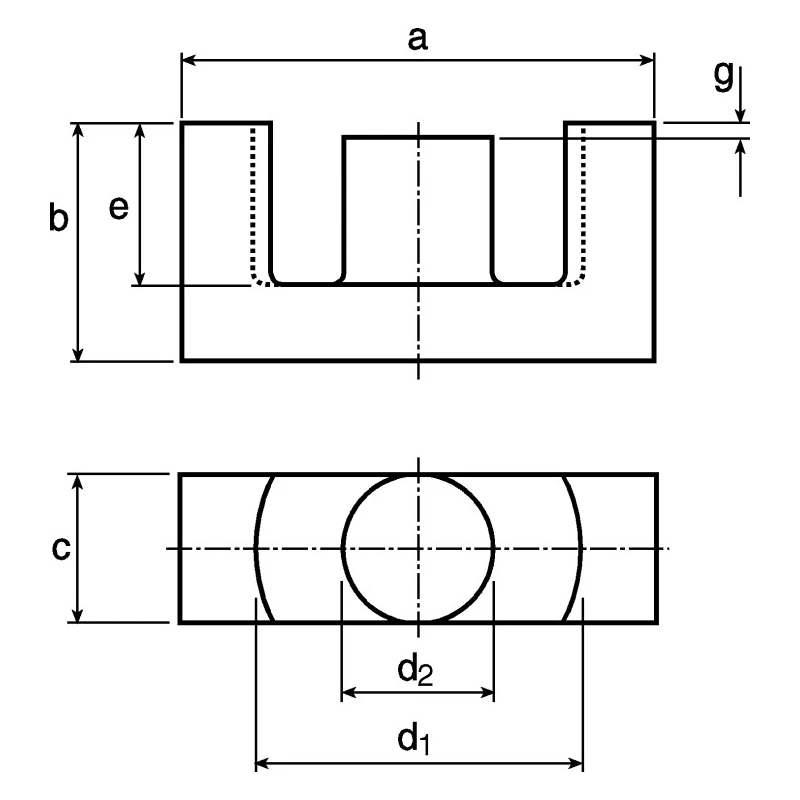

The core dimensions are 34mm in length, 17.5mm in width, and 11.1mm in depth, suitable for compact transformer designs. Its compliance with IEC 61185 standards ensures high reliability for demanding industrial, electronic, and manufacturing applications.

This ferrite core belongs to the B66361 series, designed to optimize energy efficiency and thermal stability in power transformers. Its magnetic properties make it ideal for enhancing transformer performance in power supply circuits.

Applications include industrial automation, power supply units, HVAC controls, and various electronic devices requiring efficient transformer cores. Using TDK's B66361G1000X187 ensures improved transformer efficiency, noise reduction, and better thermal management in transformer assemblies.

The core measures 34mm in length, 17.5mm width, and 11.1mm depth. Constructed using N87 material for optimal magnetic performance. Provides an AL rating of 135 nH, suitable for SMPS transformer applications. Complies with international IEC 61185 standards for quality.

Part of the B66361 series, offering consistent and reliable performance. Ideal for industrial electronic assemblies and power transformers. Enhances transformer efficiency and reduces power losses. Explore additional Transformer Cores in EnvMart's comprehensive electronics components catalog for your industrial and electronic power supply needs.
