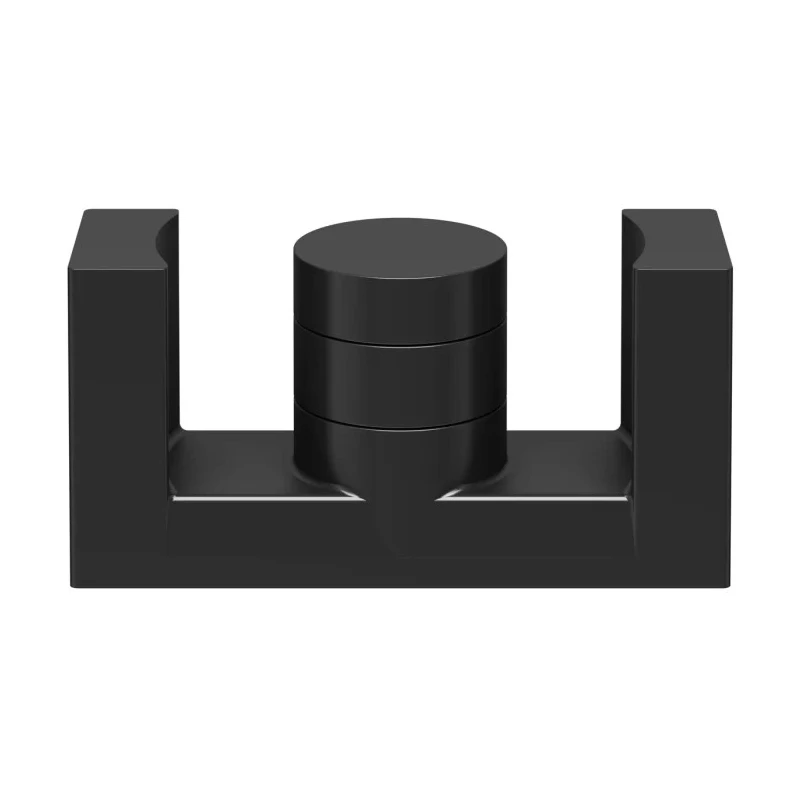

TDK Transformer Ferrite Core ETD 39/20/13, Material N97, AL Rating 2800 nH, Max Operating Temperature 155°C B66363G0000X197

TDK B66363G0000X197 Transformer Ferrite Core ETD 39/20/13 is a high-performance component designed for power transformers and switch mode power supplies (SMPS). Made from N97 ferrite material, it delivers optimum magnetic properties, making it ideal for compact and efficient transformer designs.

The core has an AL rating of 2800 nH, providing accurate inductance for demanding electrical applications. Its dimensional specifications include a length of 38.9 mm, width of 12.8 mm, and depth of 20 mm, which allows for easy integration into transformer assemblies.

This ferrite core is rated for a maximum operating temperature of 155°C, ensuring reliability under elevated thermal conditions. It complies with IEC 61185 standards for transformer cores, reflecting TDK’s commitment to quality and safety.

The B66363 series includes this model, known for consistent material quality and manufacturing precision. This product is especially suitable for industrial applications including power supply systems, manufacturing equipment, and electronic devices requiring compact and efficient magnetic components.

Manufactured in the Czech Republic, the TDK ferrite core supports a wide range of transformer designs, enhancing energy efficiency and performance. It is well-suited for engineering, electrical, and HVAC industries involved in transformer production and maintenance.

The core size is ETD 39/20/13, suited for efficient transformer designs. Constructed from high-quality N97 ferrite material for optimal magnetic characteristics. Features an AL rating of 2800 nH ensuring precise inductance.

Maximum operating temperature is 155°C, suitable for demanding applications. Complies with IEC 61185 standards for quality and safety. Dimensions include length 38.9 mm, width 12.8 mm, and depth 20 mm for compact transformer assemblies.

Ideal for use in switch mode power supplies (SMPS) and various power transformers. Manufactured as part of the B66363 series guaranteeing consistent performance. Originates from Czech Republic, assuring international manufacturing standards.
