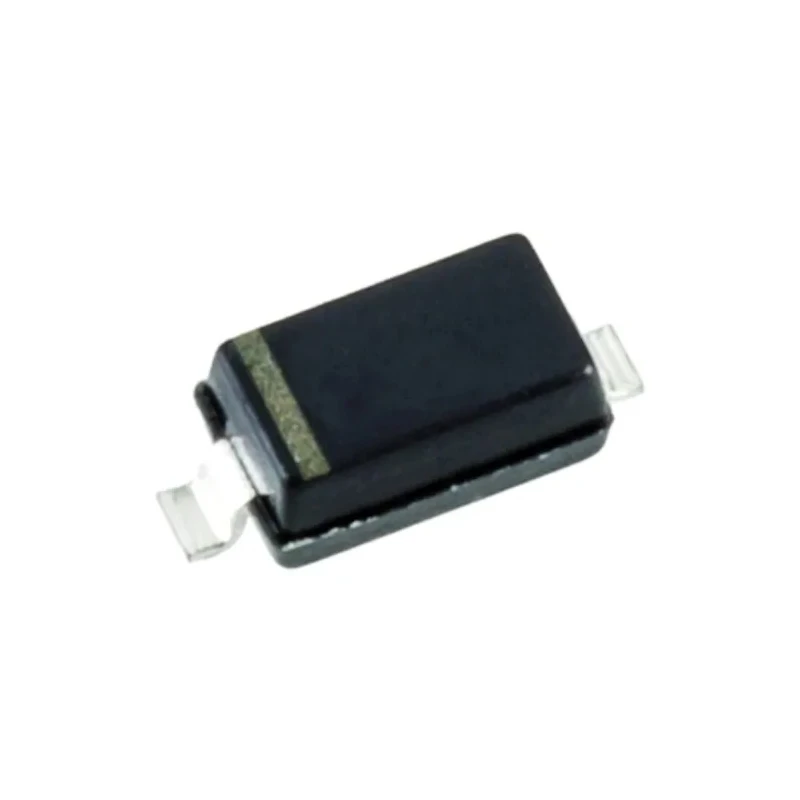

onsemi 30 V 500 mA Schottky Diode 2-Pin SOD-123 MBR0530T1G

onsemi MBR0530T1G Schottky Diode in a 2-Pin SOD-123 surface mount package is designed for efficient low voltage, high-frequency rectification and polarity protection duties in electronic circuits. It offers a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage rating of 30 V, making it suitable for compact and weight-sensitive applications.

This diode exhibits low forward voltage drop of 430 mV and minimal peak reverse current of 130 μA, helping to increase overall circuit efficiency. Its operating temperature ranges from -65°C to 125°C, supporting diverse environmental conditions often encountered in industrial and commercial electronics.

The package is epoxy moulded to provide enhanced stress protection and a lightweight 11.7 mg form factor optimized for automated PCB assembly processes. Its peak non-repetitive forward surge current rating of 5.5 A ensures robustness under transient current spikes.

This diode series is not automotive qualified but is suitable for a broad range of surface mount use cases including switching power supplies, power management, consumer electronics, and industrial control circuits.

Surface mount package with compact SOD-123 form factor and 2 pins. Maximum continuous forward current 500 mA for efficient power handling. Low maximum forward voltage of 430 mV reduces power loss. Wide operating temperature range from -65°C to 125°C for reliability.

Peak non-repetitive forward surge current of 5.5 A for transient robustness. Low peak reverse current 130 μA minimizes leakage losses. Epoxy moulded for enhanced stress resistance and durability. Lightweight package (approx. 11.7 mg) suited for automated assembly.

This onsemi Schottky diode meets the needs of industrial, laboratory, manufacturing, power electronics, and consumer electronic projects requiring compact, efficient rectification components. It is manufactured in China under strict quality standards and supplied as new condition.
