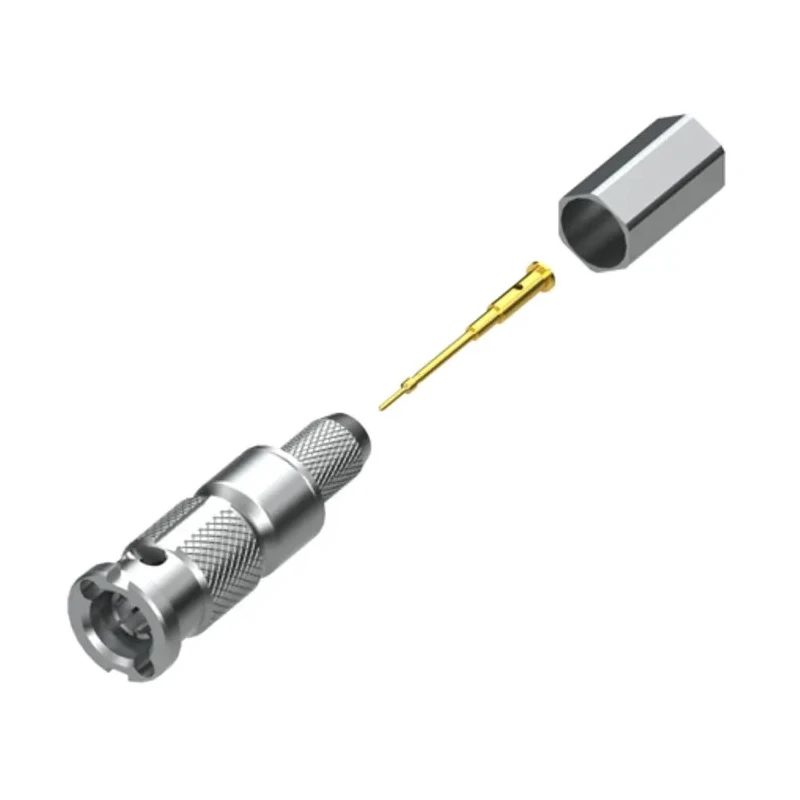

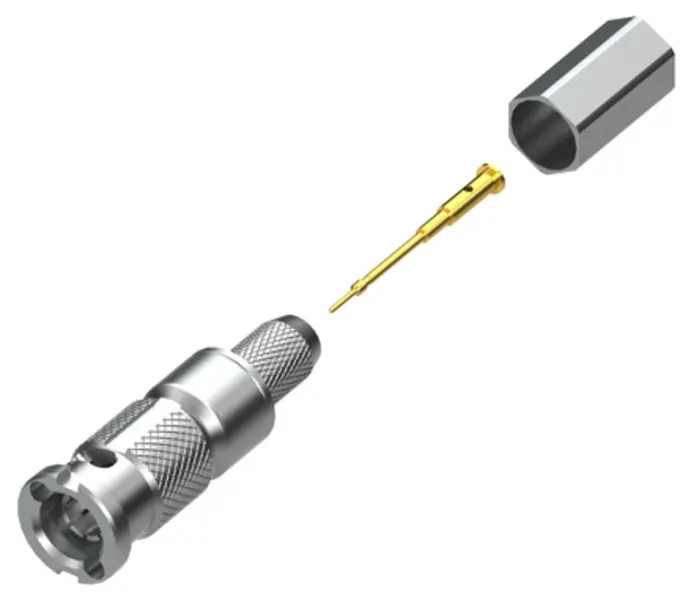

Samtec HD-BNC Series 75 Ω Coaxial Connector Cable Male BNC Straight Body Crimp HDBNC-P-C-GN-ST-CA6
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Straight |
| Model | HDBNC-P-C-GN-ST-CA6 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Copper Alloy |
| Series | HD-BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Cable Type | BELDEN 1694A |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- Impedance of 75 Ω ensures signal integrity for high frequency applications.
- Connector features a simple bayonet coupling requiring a quarter turn for easy connection and disconnection.
- Gold-plated body and contact plating provide corrosion resistance and reliable conductivity.
- Operating frequency up to 6 GHz suits communications, instrumentation, and broadcast uses.
- Compatible with BELDEN 1694A cable type for robust cable assemblies.
- Wide operating temperature range from -65°C to 125°C supports harsh environments.
- Termination type is crimp for secure cable attachment.
- Suitable for instrumentation, security systems, telecom, and broadcast applications.
Product Description
Samtec HDBNC-P-C-GN-ST-CA6 is a 75 Ω coaxial connector cable featuring a male BNC connector with a straight body design and crimp termination type. It is part of the HD-BNC series by Samtec, designed for high-performance, high-density cable mount applications.
The connector utilizes a simple bayonet coupling mechanism that requires only a quarter turn to securely connect or disconnect, simplifying installation and maintenance. The gold plating on both the body and contacts enhances corrosion resistance and ensures reliable electrical conductivity, making it suitable for long-term use in demanding environments.
This coaxial connector supports an operating frequency of up to 6 GHz, making it ideal for applications in instrumentation, security, telecommunications, and broadcast systems. The specified cable type is BELDEN 1694A, commonly used for high-quality signal transmissions.
Operating temperature ranges from -65°C to 125°C, allowing the connector to perform reliably under extreme temperatures. The product offers normal polarity and is constructed from copper alloy contact material, combining durability with optimal performance.
This connector cable is widely used in industrial, laboratory, and commercial settings, including audio/video equipment installations, instrumentation setups, and communication systems. The crimp termination ensures a secure mechanical and electrical connection between cable and connector.
Impedance: 75 Ω supports consistent signal transmission. Simple bayonet coupling provides ease of use. Gold-plated contact and body improve corrosion resistance. Supports operating frequencies up to 6 GHz for high-speed signals.
Compatible with BELDEN 1694A cable for reliable performance. Wide temperature tolerance from -65°C to 125°C for versatile use. Crimp termination enables secure cable connection. Designed for telecom, broadcasting, instrumentation, and security applications.
This product is new and made in India. It is ideal for professionals requiring reliable coaxial connections in various technical fields. Explore more Coaxial Connectors and related components within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this coaxial connector cable is 75 Ω, which ensures signal integrity for high-frequency applications.
This model supports an operating frequency of up to 6 GHz, making it suitable for high-speed signal applications.
It is compatible with BELDEN 1694A cable type, which is commonly used for high-quality signal transmissions.
The termination type for this connector is crimp, ensuring a secure mechanical and electrical connection between the cable and the connector.
This connector operates within a temperature range of -65°C to 125°C, allowing it to perform reliably under extreme conditions.
The contact material is copper alloy, and both the body and contact plating are gold, enhancing corrosion resistance and conductivity.
The orientation of this connector is straight, designed for easy installation in various applications.
This connector is suitable for applications in telecommunications, broadcasting, instrumentation, and security systems.
This coaxial connector features a male BNC connector gender.
The connector features a simple bayonet coupling mechanism that requires only a quarter turn for secure connection and disconnection, simplifying maintenance.
The size classification of this connector is standard, making it compatible with various setups and installations.
This product is manufactured in India.
