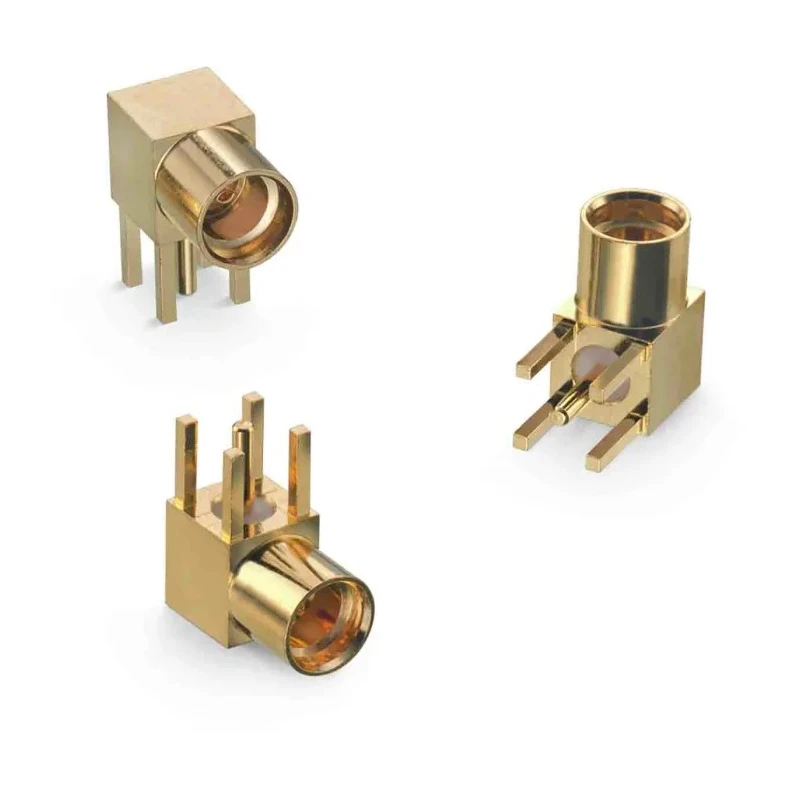

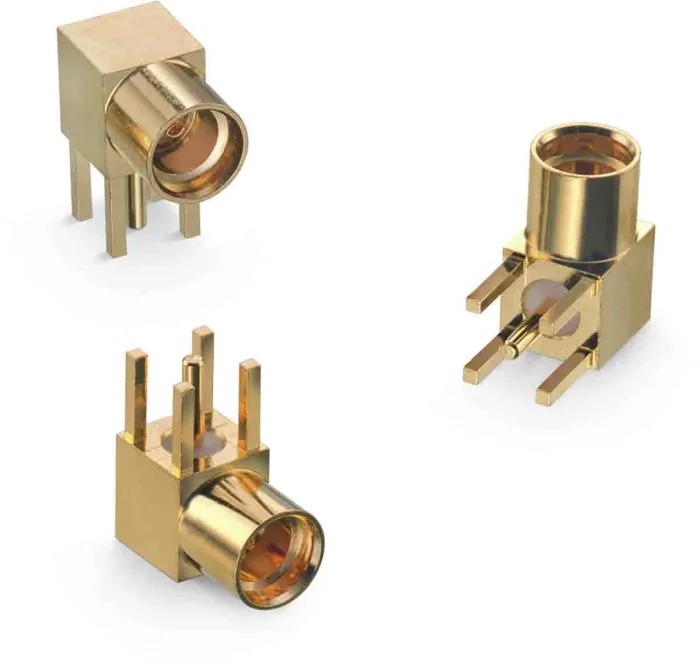

Wurth Elektronik WR-MMCX Coaxial Connector MCX Female 50 Ohm Right Angle Through Hole Solder 66011002111501
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | WR-MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- High-performance WR-MMCX series MCX coaxial connector.
- Female right angle design for precise board integration.
- 50 Ohm impedance and 6 GHz maximum operating frequency.
- Through hole mounting and solder termination for stability.
- Gold over nickel plated beryllium copper alloy contacts for durability.
- Wide operating temperature range from minus 55 to 155 degrees Celsius.
- Snap-on mating for quick, reliable assembly in RF circuits.
- Suitable for telecommunications, industrial automation, and wireless systems.
Product Description
The Wurth Elektronik WR-MMCX Series Coaxial Connector, model 66011002111501, is a precision-engineered MCX female right angle connector designed for demanding RF applications. With a through hole mounting configuration and solder termination, it is ideal for secure and stable connections on printed circuit boards where reliable high-frequency performance is required.
This connector offers a 50 Ohm impedance and operates up to 6 GHz, making it suitable for applications that require low signal loss and consistent transmission quality. The right angle body design allows for space-efficient layouts in compact assemblies while maintaining robust mechanical engagement through snap-on mating.
Constructed with beryllium copper alloy contacts plated in gold over nickel, this connector provides both excellent conductivity and high corrosion resistance for long service life. The termination style is optimized for soldering, ensuring enduring and stable connections in telecommunication infrastructure, wireless communications systems, industrial networking, and measurement or test equipment.
Rated for an operating temperature from minus 55 to 155 degrees Celsius, the WR-MMCX series connector adapts to wide environmental challenges found in industrial settings or outdoor telecom deployments. Typical use cases include telecommunication base stations, machine-to-machine communication, wireless LAN hardware, industrial automation equipment, and advanced test systems like network analyzers.
Applications include installations where reliable board-level RF interconnects are critical, such as factory automation systems, communication backplanes, router or switch modules, and radio-frequency instrumentation. The gold-over-nickel body plating further enhances electrical performance for high speed or precision measurements.
This product exemplifies Wurth Elektronik’s commitment to consistently high quality and compatibility with rigorous industrial, laboratory, and communications standards. Customers can explore more Wurth Elektronik components or discover alternatives in the Coaxial Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of the Wurth Elektronik WR-MMCX coaxial connector is 6 GHz.
This model has an impedance of 50 Ohm, making it suitable for RF applications that require low signal loss.
It uses a solder termination type, ensuring secure and stable connections on printed circuit boards.
The operating temperature range for this connector is from -55°C to 155°C.
The contacts are made from beryllium copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
This model features a through hole mounting configuration, which is ideal for secure installation on PCBs.
The Wurth Elektronik WR-MMCX connector is designed with a right angle orientation, allowing for space-efficient layouts.
It is suitable for telecommunications, industrial automation, and wireless systems where reliable RF interconnects are critical.
This connector is a female connector, designed for compatibility with male counterparts in RF applications.
The body of this connector is plated with gold over nickel, which enhances its electrical performance.
This connector belongs to the WR-MMCX series, which is known for high-performance RF applications.
The country of origin for this connector is Taiwan.
