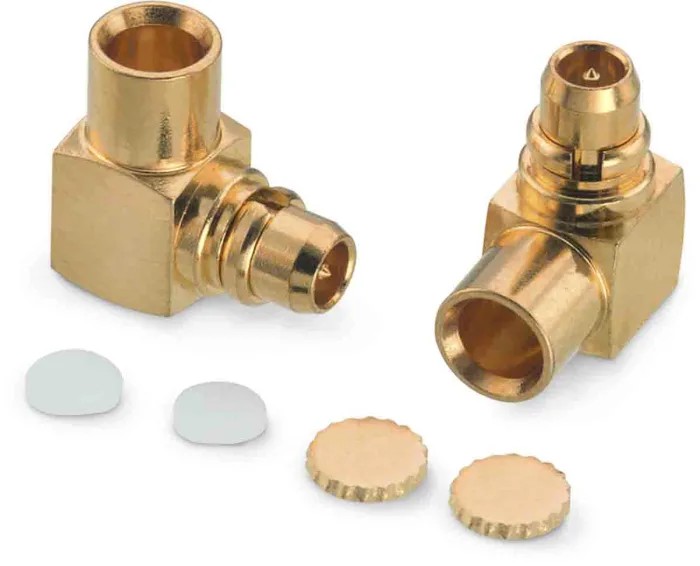

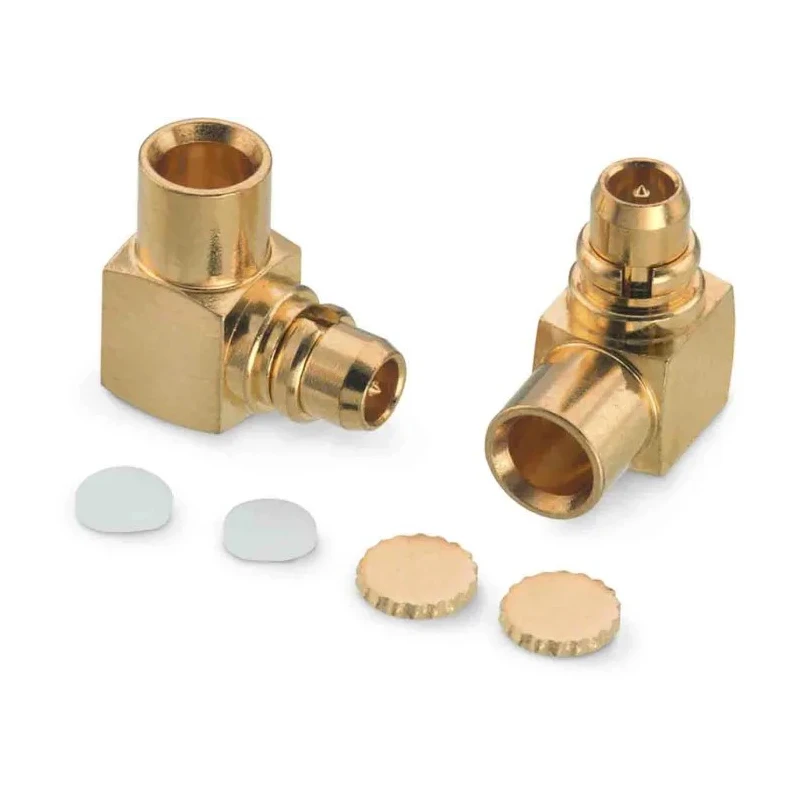

Wurth Elektronik WR-MMCX Series Coaxial Connector Male MCX, 50 Ohm, RG405 Cable, Right Angle Solder 66039011210820

The Wurth Elektronik WR-MMCX Series Coaxial Connector, model 66039011210820, is a precision-engineered solution for robust and reliable RF and signal transfer in demanding electronic applications. This male MCX connector is designed with a right angle orientation and utilizes a solder termination, making it highly effective for wire-to-board implementations and compact designs.

Built with RG405 cable compatibility, the connector supports a 50 Ohm impedance and maintains optimal signal fidelity for frequencies up to 6 GHz. The gold over nickel plating on both the body and contacts ensures superior electrical conductivity and long-term corrosion resistance, essential for professional-grade environments. The housing and contacts are manufactured from high-quality brass, further adding to the connector’s mechanical durability and performance longevity.

The right angle configuration allows for efficient use of board space, especially critical in densely populated telecommunication equipment, base stations, and telecom boxes. The MMCX design enables quick snap-on mating for streamlined installation and maintenance. With a contact gender of male and normal polarity, the connector guarantees secure and consistent contacts throughout its service life.

This WR-MMCX series connector is perfectly suited for a wide range of industrial and commercial applications, including data communication, wireless LAN, industrial machine-to-machine communication, measurement and test systems, and network analyzers. Its operational temperature range of -55°C to 155°C allows deployment in harsh industrial climates and challenging field conditions.

Key features such as solder termination type, standard size, and no bulkhead configuration ensure flexibility and adaptability in various assemblies. This product excels in delivering secure, low-loss connections in high-performance RF, microwave, and data transmission equipment where reliability is paramount.

Expand your system capabilities in telecommunications, industrial automation, and advanced networking solutions with the dependability of Wurth Elektronik’s WR-MMCX 66039011210820 Coaxial Connector. For additional RF connector options or further details on the WR-MMCX series, explore the Electronics Components > Coaxial Connector range on EnvMart.
