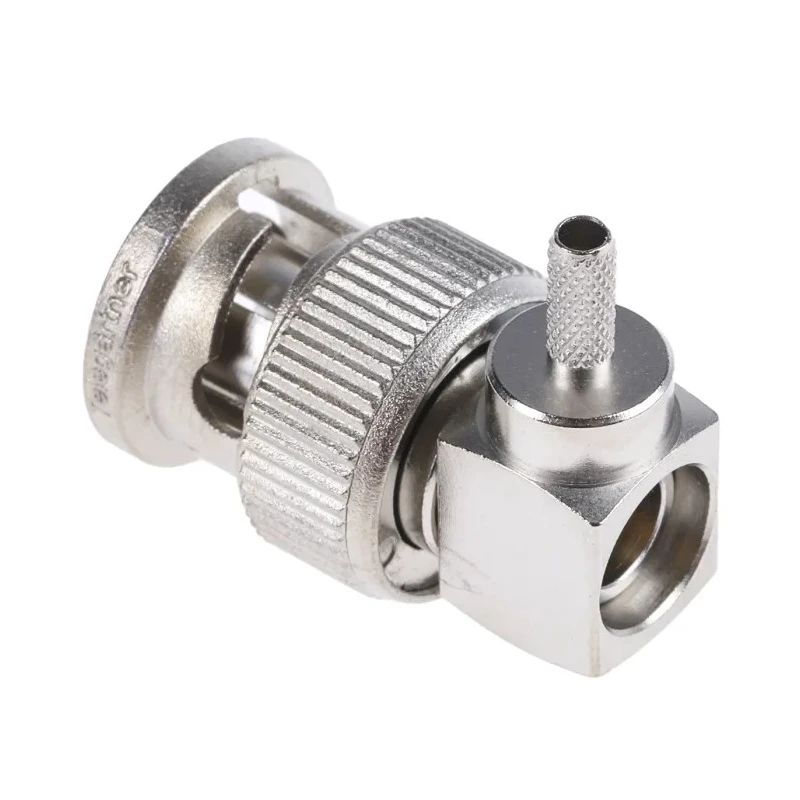

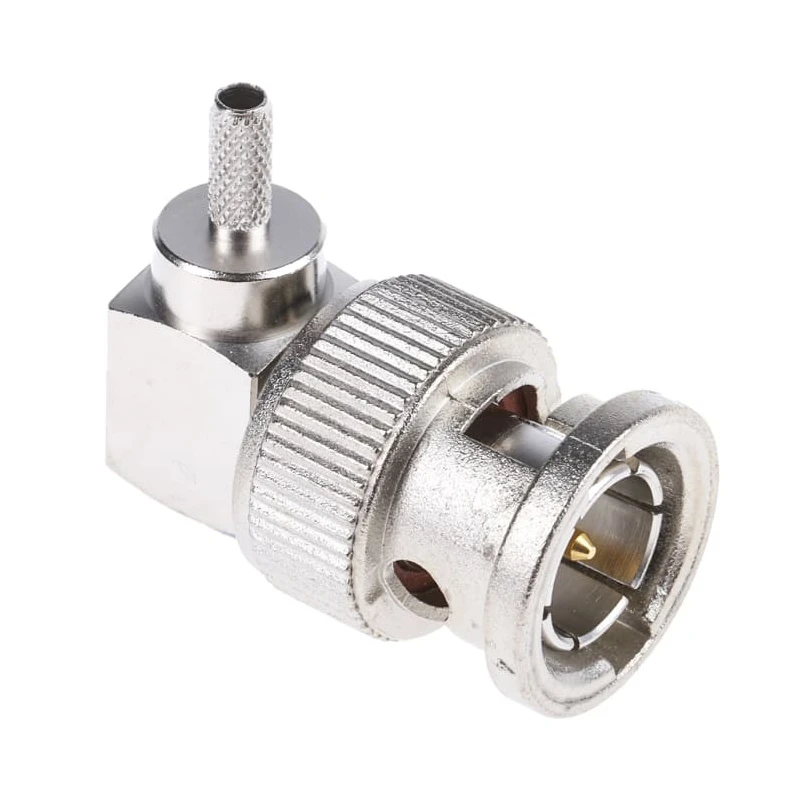

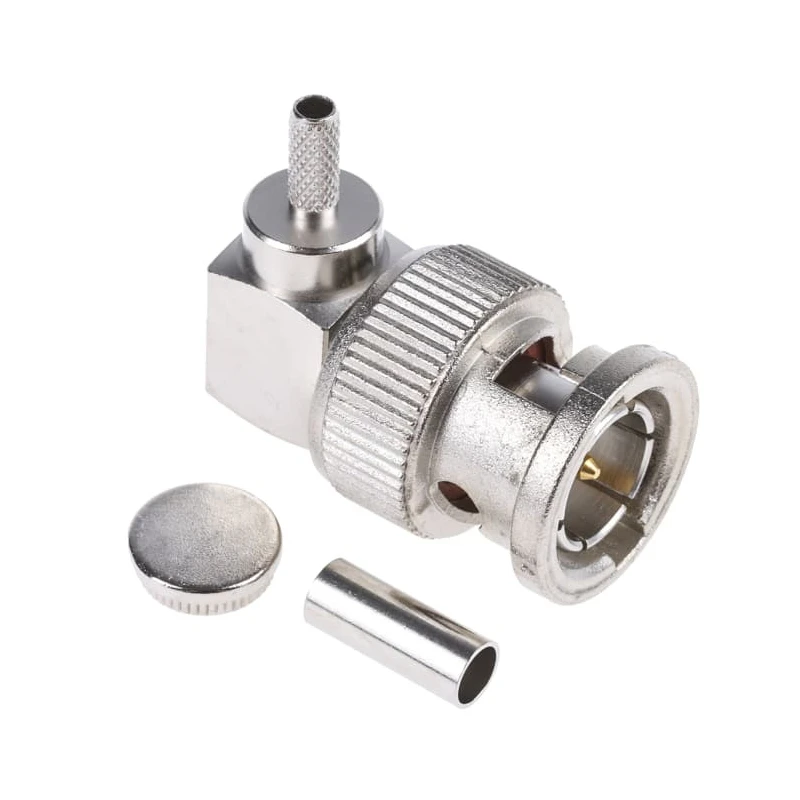

Telegartner BNC Series Coaxial Connector Cable Male BNC 75Ω Right Angle Body Crimp J01002A0027
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01002A0027 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG179B/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Designed for high-frequency RF applications up to 4 GHz.
- Features a bayonet coupling mechanism for secure and quick connection.
- 75Ω impedance supports clear signal transmission and low loss.
- Durable nickel-plated housing with gold-plated beryllium copper contacts for enhanced conductivity and corrosion resistance.
- Right angle orientation provides installation flexibility in confined spaces.
- Crimp termination ensures reliable cable mounting and retention.
- Compatible with RG179B/U cable type and BNC series standards.
- Wide temperature range from -65°C to 165°C for industrial and laboratory use.
Product Description
Telegartner J01002A0027 BNC Series Coaxial Connector Cable Male BNC, 75Ω, Right Angle Body Crimp is a professional-grade connector designed for signal, data and video transmission in demanding environments. It is part of Telegartner's renowned BNC Series, known for precise engineering, robust construction and high reliability.
With an impedance of 75Ω and support for frequencies up to 4 GHz, this connector is ideal for RF, broadcast, laboratory, industrial control and monitoring systems. The bayonet coupling mechanism allows secure and rapid connection/disconnection, making installation efficient.
The right angle body aids in cable routing through tight spaces, and crimp termination ensures a firm cable retention compatible with RG179B/U cable types. Internally, spring-mounted gold-plated beryllium copper contacts and a PTFE insulator deliver excellent conductivity, durability and insulation performance. The nickel-plated housing resists corrosion for reliable operation over extended periods.
This connector operates across a broad temperature range from -65°C to 165°C, making it suitable for laboratory instruments, control cabinets, broadcast panels, and other industrial applications where environmental resilience is required. Its compact and moisture-resistant design contributes to user-friendly installation and lasting performance.
Applications include signal transmission, data lines, video connections, and instrumentation interfaces. It is also suitable for compliant use within IEC 169-8 standards, serving industries like telecommunications, manufacturing, electronics assembly, and scientific research.
Engineered for RF applications up to 4 GHz. Bayonet coupling for secure and easy mating. 75Ω impedance for accurate signal integrity. Gold-plated beryllium copper contacts and nickel-plated body. Right angle body for space-efficient installation.
Reliable crimp termination and compatibility with RG179B/U cable. Wide operating temperature range for harsh environments. Moisture-proof and robust design for industrial standards. For searching more products in the Coaxial Connector category or by Telegartner, browse EnvMart for related industrial connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency RF applications.
This BNC connector is compatible with RG179B/U cable types, ensuring reliable cable mounting and retention.
The impedance rating of this connector is 75Ω, which supports clear signal transmission and low loss.
This connector features a right angle orientation, providing installation flexibility in confined spaces.
The contacts are made of gold-plated beryllium copper alloy, which enhances conductivity and corrosion resistance.
The operating temperature range for this connector is from -65°C to 165°C, suitable for harsh environments.
This connector uses a crimp termination type, ensuring reliable cable mounting and retention.
The body of this connector is nickel-plated, providing corrosion resistance for reliable operation.
The contact gender of this connector is male, designed for secure mating with compatible devices.
This connector belongs to the BNC Series, known for its precise engineering and high reliability.
This connector is manufactured in Germany, reflecting high standards in engineering and quality.
This connector is suitable for signal transmission, data lines, video connections, and instrumentation interfaces.
