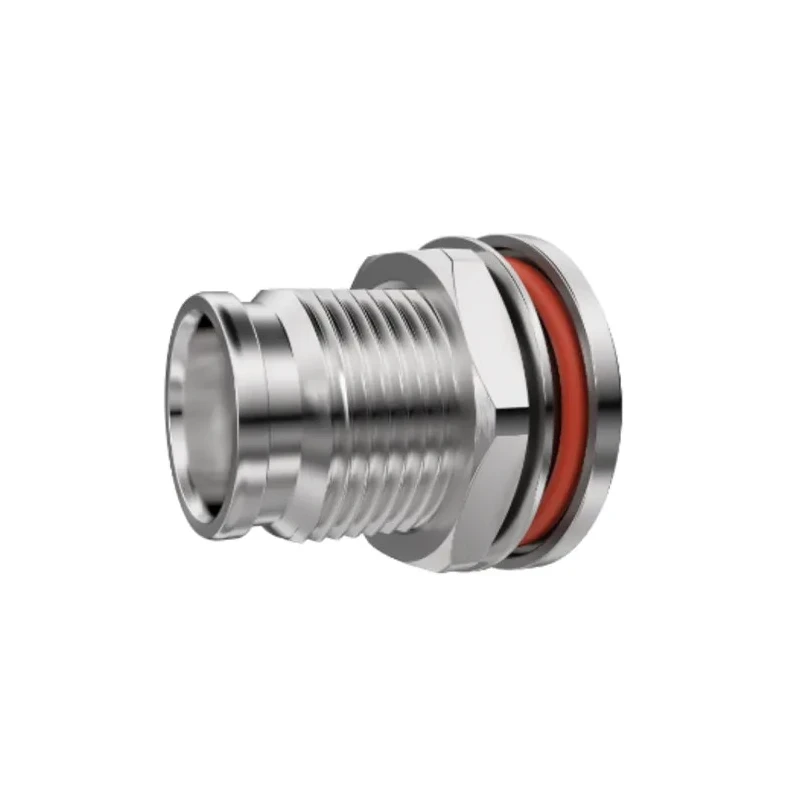

Telegartner 2.2-5 Series Coaxial Connector Bulkhead Female 50 Ω Straight Body Solder J01461A0004
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01461A0004 |
| Mount Type | Bulkhead |
| Series | 2.2-5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Cable Type | UT85, RG405/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Gender | Female |
| Connector Gender | Female |
| Body Plating | White Bronze |
Key Features
- Bulkhead mount type ensures secure panel mounting.
- Connector features female polarity suitable for coaxial cables UT85 and RG405/U.
- Operating frequency ranges from 0 to 6 GHz for versatile RF applications.
- Durable body plating with white bronze enhances corrosion resistance.
- Wide temperature range from -55°C to 90°C for reliable performance in harsh environments.
- Termination type is solder ensuring strong electrical connection.
- Complies with RoHS standards for safe and environmentally friendly use.
- Constructed with high-quality CuBe2Pb center contact with Cu2Ag5 finish for excellent conductivity.
Product Description
Telegartner J01461A0004 is a high-quality 2.2-5 Series Coaxial Connector designed for bulkhead mounting in demanding RF applications. This female connector offers a 50 Ω impedance, straight body orientation and is terminated by solder, making it well-suited for use with coaxial cables such as UT85 and RG405/U. It supports frequencies from 0 to 6 GHz, ensuring low interference and good signal integrity across a broad spectrum.
The connector body plating is white bronze which provides enhanced protection against corrosion, ensuring durable and stable performance. It operates reliably in extreme temperatures ranging from -55°C to +90°C, making it ideal for industrial, telecommunications, and laboratory environments.
Featuring a center contact made from copper beryllium alloy (CuBe2Pb) with a copper silver finish (Cu2Ag5), it guarantees exceptional electrical conductivity and mechanical durability. The insulator is crafted from PTFE, a material known for its excellent dielectric properties, and it includes a silicon gasket to ensure a tight seal against environmental ingress.
This connector meets stringent RoHS compliance, reflecting its adherence to environmental and safety standards. Common uses include telecommunications equipment, RF test systems, and industrial electronic assemblies requiring robust coaxial connections.
Bulkhead mounting type for secure and fixed panel installation. Female connector suitable for standard 2.2-5 series coaxial setups. Wide operating frequency support up to 6 GHz. Temperature tolerance from -55°C to 90°C. High conductivity center contact with durable plating.
RoHS compliant for environmentally safe usage. Reliable solder termination for electrical contacts. Insulator and gasket ensure high insulation and sealing. Explore more Coaxial Connectors and high-performance RF components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector has an impedance of 50 Ω, making it suitable for various RF applications.
It supports an operating frequency range from 0 to 6 GHz, ensuring good signal integrity across a broad spectrum.
This connector uses a solder termination type, which ensures a strong electrical connection.
The connector operates reliably within a temperature range of -55°C to +90°C, suitable for harsh environments.
It is suitable for use with coaxial cables such as UT85 and RG405/U.
This model features a bulkhead mount type, ensuring secure and fixed panel installation.
The center contact is made from copper beryllium alloy (CuBe2Pb) with a copper silver finish (Cu2Ag5), and the body is plated with white bronze for corrosion resistance.
This connector is a female type, designed for standard 2.2-5 series coaxial setups.
Yes, it complies with RoHS standards, reflecting its adherence to environmental and safety regulations.
The connector has a straight body orientation, which is typical for bulkhead-mounted applications.
This product is manufactured in Germany.
It is commonly used in telecommunications equipment, RF test systems, and industrial electronic assemblies requiring robust coaxial connections.
