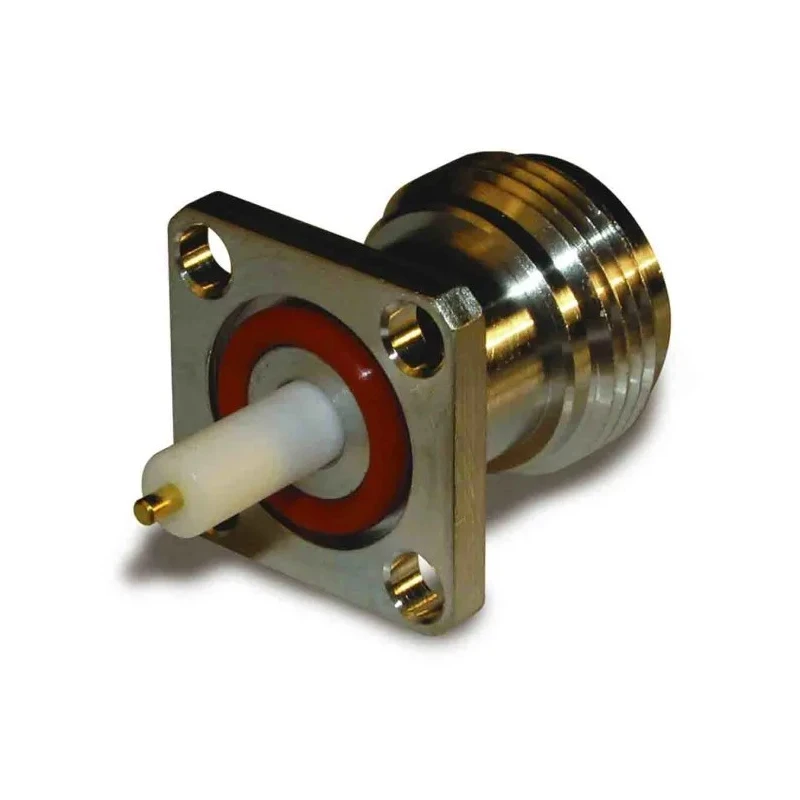

Amphenol RF N-Type Series Coaxial Connector Flange Female SMA, 50Ω, Straight Solder 11GHz 172117
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 172117 |
| Mount Type | Flange |
| Operating Frequency | 11GHz |
| Contact Material | Phosphor Bronze |
| Series | N Type |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Nexcote Plated |
Key Features
- Flange mount design facilitates secure installation in equipment.
- Female SMA coaxial connector ensures compatibility with standard RF interfaces.
- Impedance of 50Ω supports consistent signal transmission quality.
- Operates reliably across a wide frequency range up to 11GHz.
- Straight body with solder termination offers robust mechanical stability.
- Phosphor bronze contact with gold plating improves conductivity and durability.
- Nexcote plated body enhances environmental protection and corrosion resistance.
- Broad operational temperature from -65°C to +165°C supports industrial use.
Product Description
The Amphenol RF N-Type Series Coaxial Connector, model 172117, is engineered for reliable RF signal transmission in industrial, instrumentation, and communications systems. Designed with a flange mount and female SMA interface, this connector provides a robust solution for secure panel or chassis integration. The 50Ω impedance ensures compatibility with a wide variety of RF equipment, supporting consistent performance across the demanding operating frequency spectrum up to 11GHz.
This connector features a straight body and solder termination, allowing for dependable mechanical and electrical connections. The phosphor bronze contact plated with gold enhances signal integrity by minimizing resistance and protecting against oxidation. Its Nexcote plated body further improves environmental resistance, offering durability in harsh conditions and supporting weatherproof installations. Normal polarity and standard sizing allow it to fit seamlessly into commercial, military, broadcast, and industrial applications.
The 172117 model is engineered to MIL-C-39012 specification standards for interchangeability and performance, making it suitable for use in antennas, base stations, radar, WLAN, satellite, broadcast, surge protection, and instrumentation systems. Its broad operating temperature range from -65°C to 165°C ensures stable operation in both extreme cold and heat, accommodating rigorous field and laboratory demands.
With a threaded coupling mechanism designed to resist vibration, this connector maintains integrity in environments involving frequent movement or mechanical stress. The solder termination method facilitates straightforward installation and maintenance, supporting both prototyping and mass production requirements.
When needing a dependable RF coaxial connector with proven performance and versatility, Amphenol RF’s N-Type Series variant 172117 offers an optimal choice. Its robust construction, operational excellence, and industry-standard compatibility make it an important component for engineering teams seeking precision signal connectivity.
Explore the full range of Amphenol RF connectors in the Coaxial Connector category for additional variants and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably across a maximum frequency of 11GHz, ensuring effective RF signal transmission.
It features a solder termination type, facilitating straightforward installation and maintenance.
The connector has an impedance of 50Ω, which supports consistent signal transmission quality across various RF applications.
It can operate within a broad temperature range from -65°C to +165°C, making it suitable for various industrial applications.
The contact material is phosphor bronze, which is plated with gold to enhance conductivity and minimize resistance.
The body is Nexcote plated, which improves environmental protection and corrosion resistance.
This model features a flange mount design, allowing for secure installation in equipment.
The connector is a female type, designed for compatibility with standard RF interfaces.
It is engineered to meet MIL-C-39012 specification standards, ensuring interchangeability and performance in various applications.
It is suitable for use in antennas, base stations, radar, WLAN, satellite, broadcast, surge protection, and instrumentation systems.
The connector has a straight orientation, which aids in installation and connection to equipment.
The connector is classified as a standard size, ensuring compatibility with a wide range of RF equipment.
