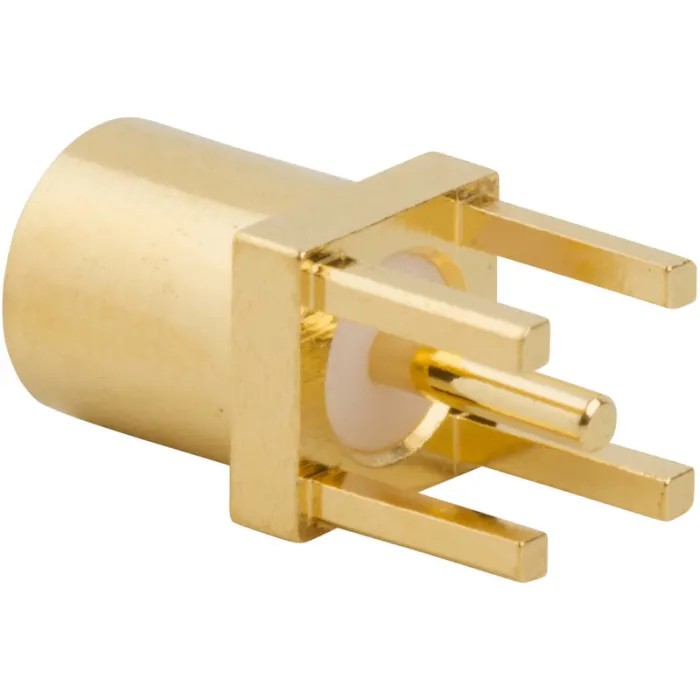

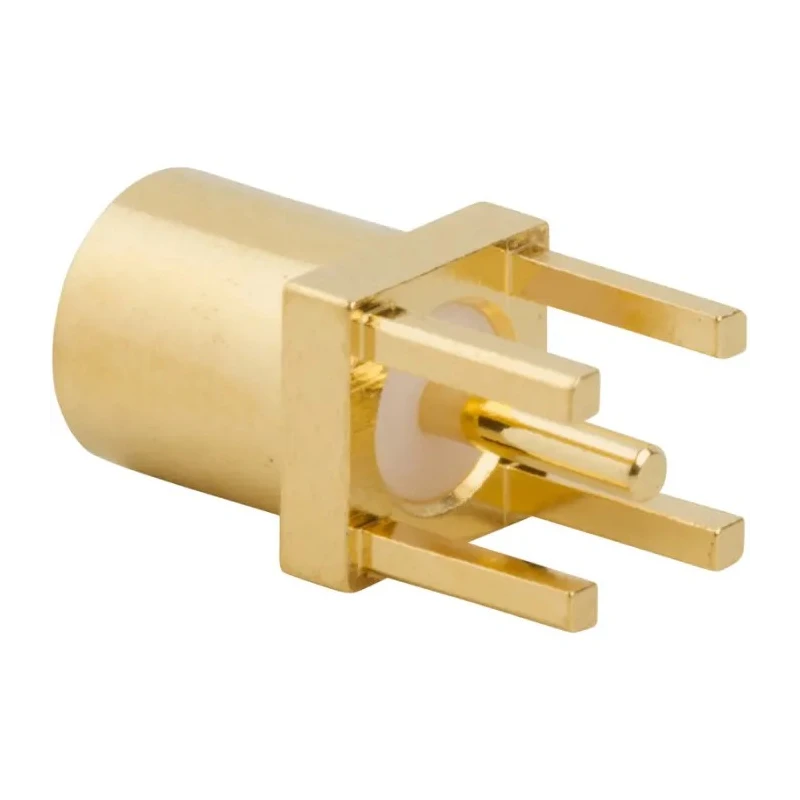

Amphenol RF 262104 Series Coaxial Connector PCB Female MCX 50 Ω Straight Body Through Hole 262104
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 262104 |
| Mount Type | PCB |
| Contact Material | Beryllium Copper Alloy |
| Series | 262104 |
| Termination Type | Through Hole |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Features a PCB female MCX connector type providing 50 Ω impedance.
- Constructed with a straight body design using through hole termination.
- Contact and body plating are gold for excellent conductivity and corrosion resistance.
- Contact material consists of beryllium copper alloy ensuring high performance.
- Ideal for RF circuit connections in electronic, industrial, and communication applications.
- Connector size is standard and designed for reliable and durable mounting.
- Product origin is China ensuring manufacturing quality and traceability.
Product Description
Amphenol RF 262104 Series Coaxial Connector PCB Female MCX 50 Ω Straight Body Through Hole is a specialized Coaxial Connector designed specifically for PCB mounting. It is engineered with a straight body and female MCX connector type, providing a characteristic impedance of 50 Ω suitable for high-frequency applications.
The connector employs through hole termination type, which offers robust mechanical stability on PCB assemblies. The gold plating on both the body and contact ensures excellent electrical conductivity while providing excellent resistance against corrosion and wear.
Constructed from beryllium copper alloy for the contact material, the connector guarantees durability and high-performance signal transmission. The normal polarity and female contact gender design allow versatile integration within RF circuits.
This product series is aimed at electronic industries requiring reliable RF connectors for communications, industrial controls, and laboratory instruments. It is well-suited for applications demanding precise impedance matching and secure, low-loss connections.
Features a PCB female MCX connector with 50 Ω impedance. Straight body design with through hole termination. Gold plating on body and contacts for corrosion resistance. Beryllium copper alloy contact material enhances durability.
Designed for high-frequency RF circuit applications. Standard size for easy integration in industrial electronics. Normal polarity ensures correct signal orientation. Explore more connectors and electronic components at EnvMart for industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Amphenol RF 262104 connector has a characteristic impedance of 50 Ω, making it suitable for high-frequency applications.
This model utilizes a through hole termination type, which provides robust mechanical stability on PCB assemblies.
The contact material consists of beryllium copper alloy, which enhances durability and signal transmission performance.
Both the body and contacts of the connector are gold plated, ensuring excellent electrical conductivity and resistance against corrosion.
The Amphenol RF 262104 connector features a straight body orientation, designed for easy integration into PCB layouts.
This connector has a female contact gender, allowing for versatile integration within RF circuits.
It is ideal for RF circuit connections in electronic, industrial, and communication applications, requiring reliable low-loss connections.
The Amphenol RF 262104 connector is manufactured in China, ensuring quality and traceability.
This model is designed with a standard size, facilitating easy integration in various industrial electronics.
The connector features normal polarity, ensuring correct signal orientation during installation.
Yes, it is designed for use in laboratory instruments, as well as in communications and industrial controls, where precise impedance matching is required.
This connector is part of the 262104 series, which includes various models designed for PCB mounting applications.
