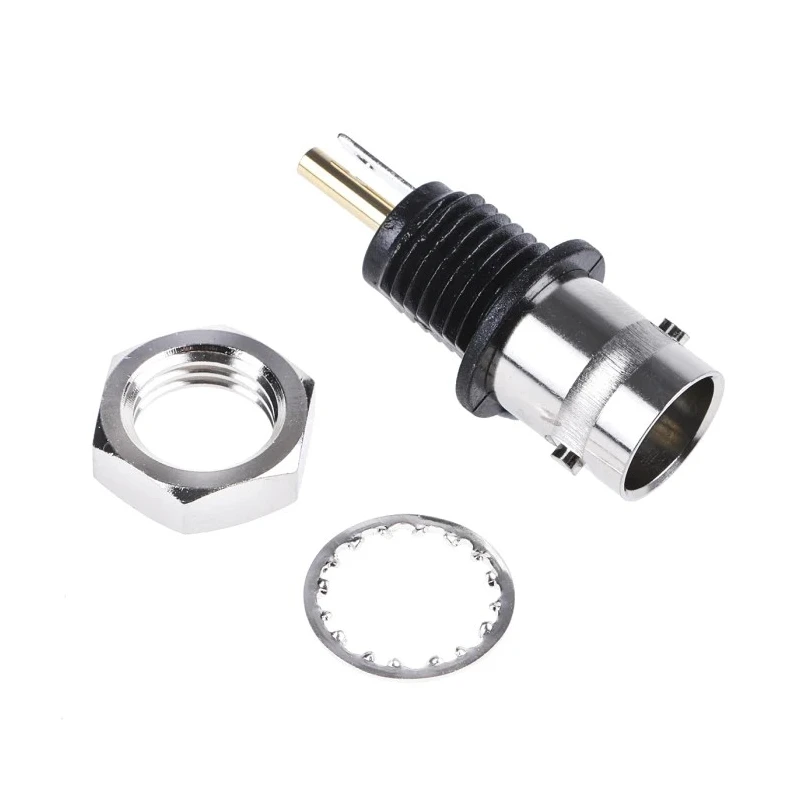

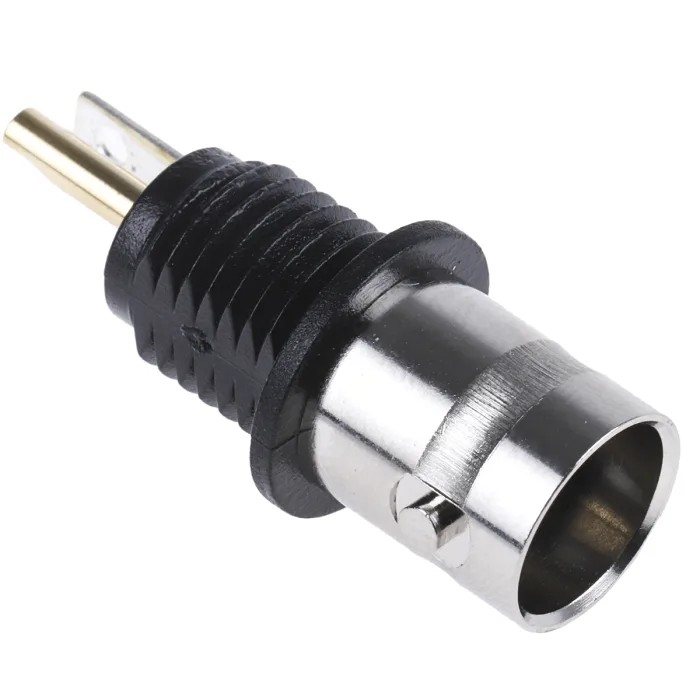

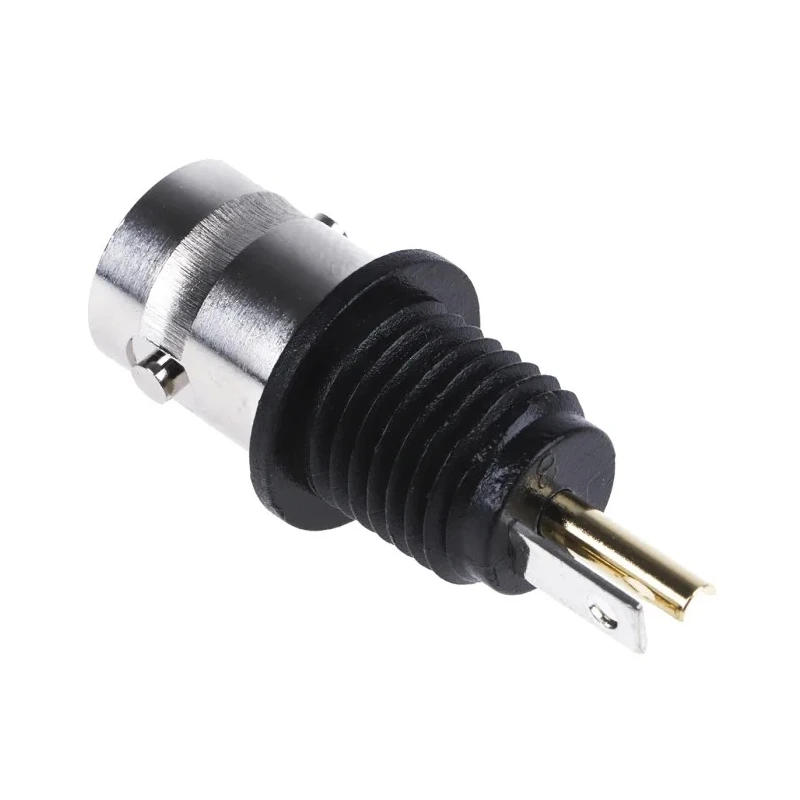

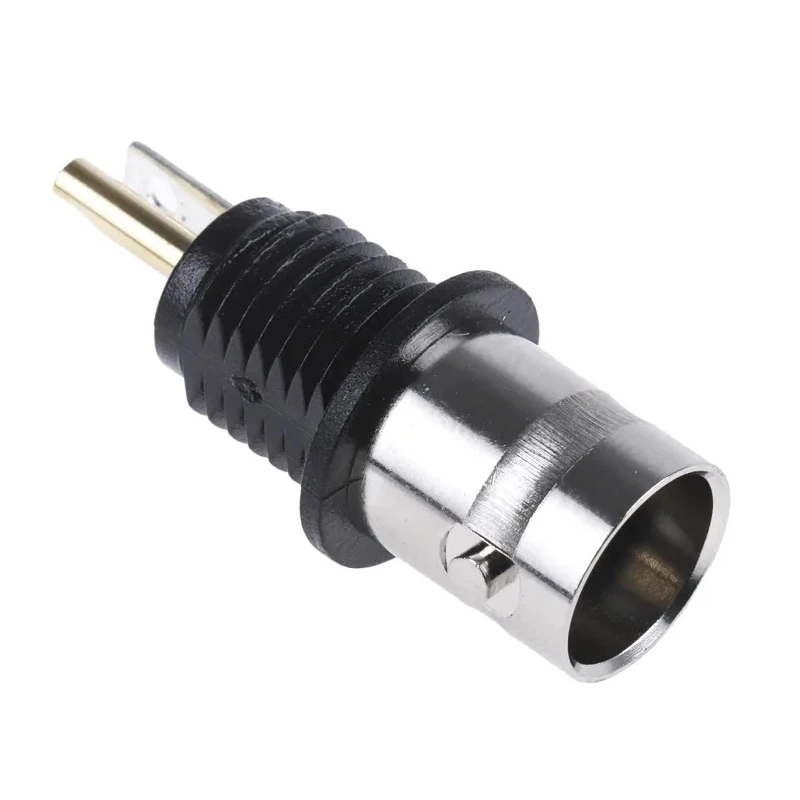

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Solder J01001D0043
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001D0043 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| binder, jack Panel Mount, 50Ω, Solder Termination, Straight BodyBrand | Telegartner |
Key Features
- Panel mount female BNC connector with straight body and solder termination.
- Designed for a standard bulkhead configuration for secure installation.
- Features a nickel plated body for corrosion resistance and durability.
- Gold plated beryllium copper contact for superior conductivity and reliability.
- Operates at up to 4 GHz frequency, suitable for high-frequency RF tasks.
- Supports an impedance of 50 Ω for reliable signal transmission.
- PTFE insulator and normal polarity ensure stable performance and insulation.
- Rated for temperatures from -65°C to 165°C for rigorous industrial environments.
Product Description
The Telegartner J01001D0043 is a BNC Series Coaxial Connector specifically designed for panel mount applications requiring a female connection, straight body orientation, and solder termination. It provides stable and reliable performance in RF and electronic systems operating up to 4 GHz, making it exceptionally versatile for laboratory, industrial, and telecommunications setups.
This connector features a standard bulkhead configuration, allowing secure mounting onto equipment panels. Its nickel plated body offers enhanced corrosion resistance, while the gold plated beryllium copper contact ensures maximum conductivity and long-term reliability for signal transfer. The PTFE insulator delivers high dielectric stability, providing excellent electrical insulation even under demanding operational conditions.
Rated for a wide operating temperature range from -65°C to 165°C, this connector excels in environments where thermal extremes and durability are critical. The 50 Ω impedance is ideal for RF applications, supporting clean and efficient transmission of radio frequency signals.
The model supports solder termination, streamlining installation and supporting customizable wiring. The connector utilizes bayonet coupling for secure and quick connect/disconnect functionality, enhancing user convenience and safety during maintenance or assembly.
The colored insulation flange - with the black version corresponding to this specific model - provides clear identification and alignment within multi-connector systems. Applications span electronics manufacturing, test and measurement, broadcast, telecoms, and laboratory instrumentation.
This BNC bulkhead socket demonstrates compliance with stringent Telegartner engineering standards, offering normal polarity, high-frequency reliability, and excellent contact performance. Its robust construction and technical specifications make it a top choice for demanding industrial and commercial electronic environments.
Explore more Telegartner connectors and related coaxial solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this BNC connector is 4 GHz, making it suitable for high-frequency RF tasks.
This model uses solder termination, allowing for customizable wiring during installation.
The impedance rating of this coaxial connector is 50 Ω, ensuring reliable signal transmission for RF applications.
The contact is made from gold plated beryllium copper alloy, while the body is nickel plated for enhanced corrosion resistance.
This connector is rated for operation between -65°C and 165°C, suitable for rigorous industrial environments.
This model is designed for panel mount applications, featuring a standard bulkhead configuration for secure installation.
The orientation of this BNC connector is straight, allowing for straightforward connections in various setups.
It uses a PTFE insulator, which provides high dielectric stability and excellent electrical insulation.
This connector is suitable for applications in electronics manufacturing, test and measurement, broadcast, telecoms, and laboratory instrumentation.
The connector is female, designed for use in applications requiring a female connection.
This model utilizes bayonet coupling for secure and quick connect/disconnect functionality, enhancing user convenience.
This connector is manufactured in Germany, adhering to stringent engineering standards.
